Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9.6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
bcamcnc
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
11000x2500x2300
-
Power (kW):
-
25
-
Weight (KG):
-
3500
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Wood Working Cnc Router
-
Control system:
-
Syntec Control
-
Transmission:
-
Helical Rack Pinion
-
Table:
-
Vacuuum Table
-
Driving system:
-
Japan Yaskawa Servo System
-
Software:
-
PowerMill
-
Spindle speed:
-
6000-24000rpm/min
-
Tool magazine:
-
Carousel 12 Slots
-
Z axis transmission:
-
TBI Transmission
Quick Details
-
Working Table Size(mm):
-
2000×3000
-
Machine Type:
-
Nesting CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9.6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
bcamcnc
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
11000x2500x2300
-
Power (kW):
-
25
-
Weight (KG):
-
3500
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Wood Working Cnc Router
-
Control system:
-
Syntec Control
-
Transmission:
-
Helical Rack Pinion
-
Table:
-
Vacuuum Table
-
Driving system:
-
Japan Yaskawa Servo System
-
Software:
-
PowerMill
-
Spindle speed:
-
6000-24000rpm/min
-
Tool magazine:
-
Carousel 12 Slots
-
Z axis transmission:
-
TBI Transmission

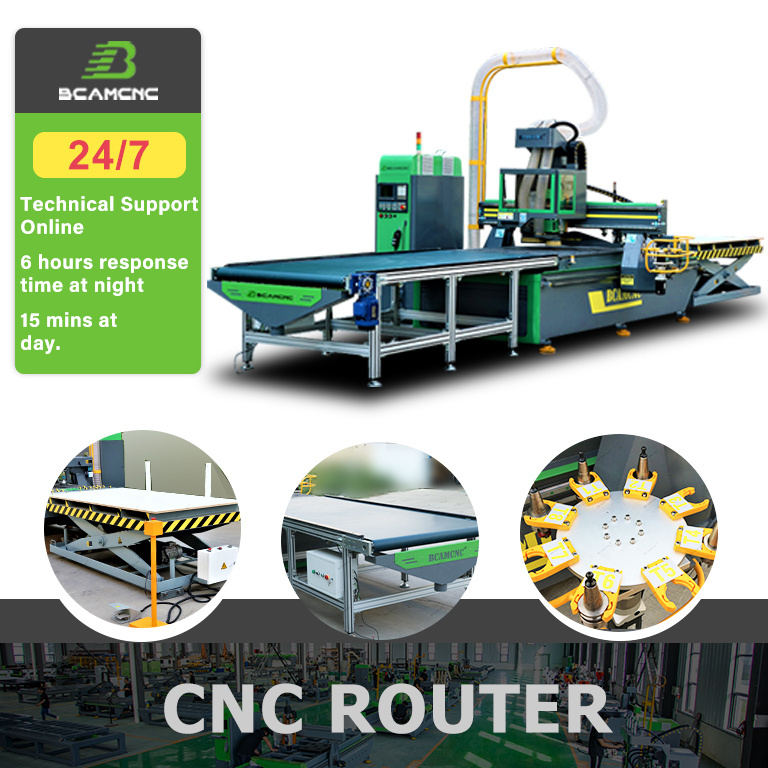

1325/1530 cnc router atc cnc engraving machine 3 axis cnc router with load unload table for door furniture
Applicable work
E series carousel ATC CNC router could change tools automatically ,it is with automatic loading and unloading tables .It is available in large and small table configurations and are capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving, routing and engraving projects it also have auto labeling device .
Applicable material
It could be applied on cutting engraving and drilling non-metal like
wood ,mdf,acrylic,foam, packing box,foam ,stone and metal panel like aluminum and copper .
Applicable industry
1. Craft & gift industry:
engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
Product Parameters
Configuration
2.Vacuum table+T-solts (optional :T-solt table )
3.Automatic loading and unloading tables
4.Italian HSD 9.5KW(12HP) Electrospindle
4.Italian HSD 9.5KW(12HP) Electrospindle
5.Taiwan Delta 11kw inverter
6.Taiwan Syntec control system 60w-e
6.Taiwan Syntec control system 60w-e
7.Auto labeling machine+taiwan syntec control system
8.Japan Yaskawa servo motor and drivers system 850w with reducers
8.Japan Yaskawa servo motor and drivers system 850w with reducers
|
Parameters
|
Details
|
|
X,Y,Z Working Area
|
2000*3000*200mm|6*10ft
|
|
Size
|
10000*2600*2500mm
|
|
Weight
|
2200kgs
|
|
Spindle Power
|
9kw (could up to 9.5kw)
|
|
Spindle Speed
|
24000r/min
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.02/2000mm
|
|
Max. Rapid Travel Rate
|
90m/min
|
|
Max. Working Speed
|
70m/min
|
|
Working Voltage
|
AC380v/50HZ/3 phase
(optional )
|
|
Command Language
|
G Code
|
Detail pictures
Active safety system (our patent)
This is our patent ,fixed on both sides of wood router ,It has beed applied on A plus/S/C/D/E series .When the cnc router is working ,if the yellow part touch the workers ,the machine will stop instantly to protect the workers .

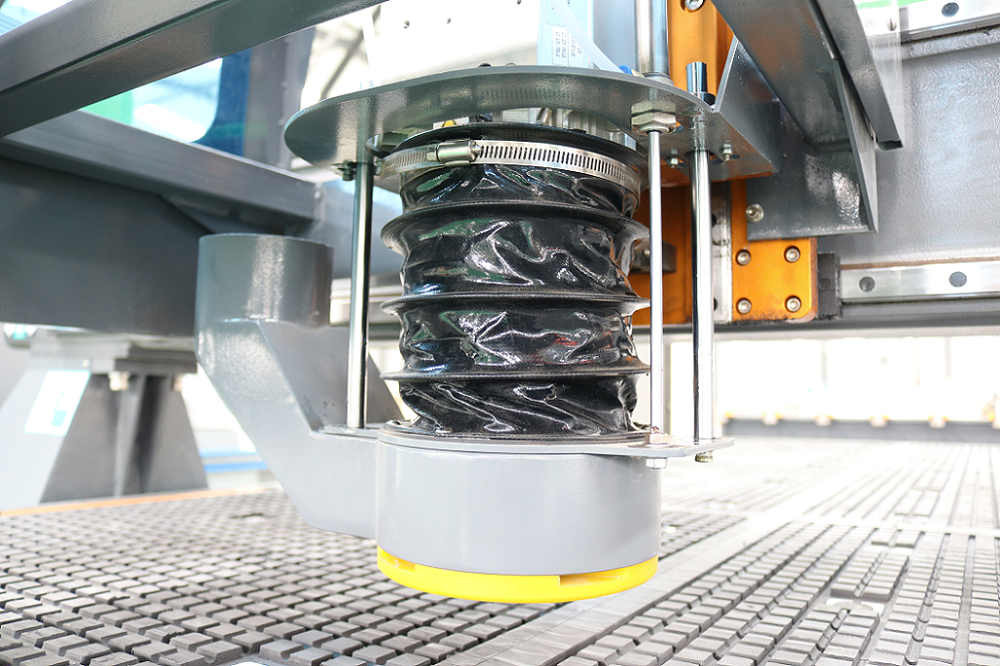

Airtech Pro (our patent)
This is another patent of our cnc router,it has been applied on S/C/D/E series cnc router .Not like the normal hairbrush ,the air flew caused by the dust collector in the Airtech Pro could work together with the dust collector and therefore achieve better dust
collect effect .
collect effect .
Tools' positions
E series is automatic carousel tools change cnc router ,
12 pcs tools' positions
is at one side of the gantry with a carousel arrangement,since it is equipped with a motor to rotate the positions,so it could achieve fast tools change speed
.After you install the tools into the tools' holders and put them in the positions ,the machine could change tools automatically .
Taiwan Syntec 60w-e control system
The control system of E sereis cnc adopts the advanced Taiwan Syntec system, which is widely acclaimed internationally and can
perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and Network, greatly increasing the intelligence of the
device.
perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and Network, greatly increasing the intelligence of the
device.
Japanese Yaskawa servo motor and driver
Automatic tool sensor
C series is automatic tools change cnc router ,every time it changes the tools ,it could touch the tool sensor to make sure the level automatically .
Automatic oil-lubrication system
It could oil the rail automatically ,one touch can finish periodic maintenance easily .
Protect cover
The protect cover could help lower the noise caused by the spindle and it could protect the spindle from the dust .
SAMPLE
Here are some samples for wood and aluminum and acrylic ,it could be applied
non-metal like wood ,mdf,acrylic,foam, packing box,foam ,stone and metal panel like aluminum and copper etc.
Here are some feedback from our customers ,our cnc router has been widely praised ,and many our customers have bought the machines from us for several times .
