Quick Details
-
Drilling Speed:
-
12 Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HYD
-
Model Number:
-
DP161203
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
885*485*277 mm
-
Power (kW):
-
450W/550W
-
Weight (KG):
-
38 KG
-
Product name:
-

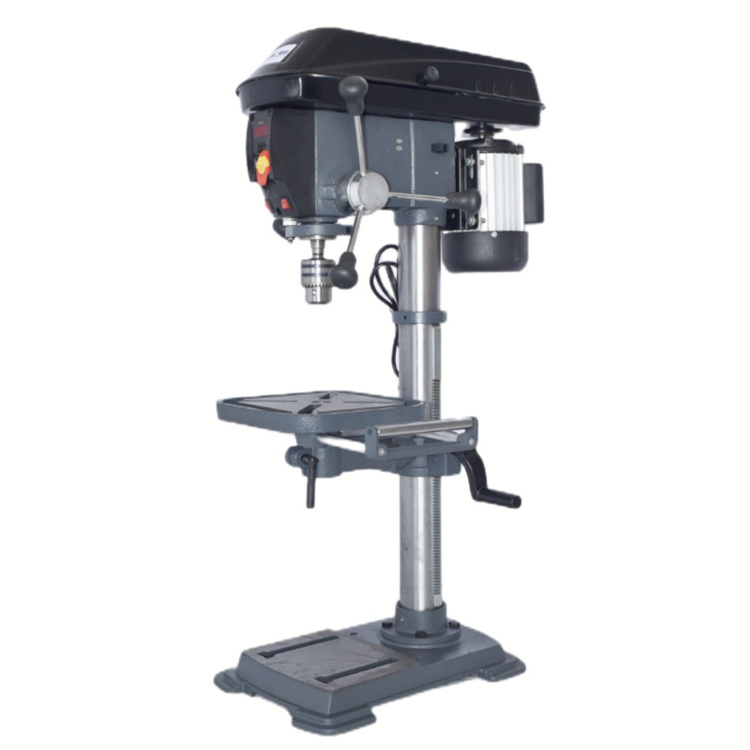

Vertical Drilling Machine
-
Name:
-
Vertical Automatic Drilling Machine
-
Swing:
-
305 mm
-
Taper:
-
B16/JT33
-
Spindle travel:
-
80 mm
-
Table size:
-
240*240 mm
-
Base size:
-
444*294 mm
-
Overall Height:
-
940 mm
-
Table Tilting Range:
-
0-45°
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
450 - 3100 r.p.m
-
Drilling Speed:
-
12 Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HYD
-
Model Number:
-
DP161203
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
885*485*277 mm
-
Power (kW):
-
450W/550W
-
Weight (KG):
-
38 KG
-
Product name:
-
Vertical Drilling Machine
-
Name:
-
Vertical Automatic Drilling Machine
-
Swing:
-
305 mm
-
Taper:
-
B16/JT33
-
Spindle travel:
-
80 mm
-
Table size:
-
240*240 mm
-
Base size:
-
444*294 mm
-
Overall Height:
-
940 mm
-
Table Tilting Range:
-
0-45°
Products Description
|
MODEL
|
DP161203
|
|
MOTOR
|
450W/550W
|
|
Swing
|
305mm
|
|
Max.Drilling capacity
|
16mm
|
|
Taper
|
B16/JT33
|
|
Spindle travel
|
80mm
|
|
Spindle Speed
|
Variable
|
|
Speed range 50HZ
|
450-2500rpm
|
|
Speed range 60HZ
|
530-3100rpm
|
|
Table Size
|
240x240mm
|
|
Base size
|
444x294mm
|
|
Column Diameter
|
￠65mm
|
|
Max.distance from spindle end to surface of table( mm )
|
320mm
|
|
Max.distance from spindle end to surface of base(mm)
|
490mm
|
|
Table Tilting Range
|
0-45°
|
|
Overall Height
|
940mm
|
|
NW./GW.
|
36/38
|
|
Carton size
|
885X485X277
|
