220v wireless remote controlled electric winch 12000lbs for lifting and pulling

Introduction of 220v electric winch

The 220v electric winch completes the traction drive with human power or mechanical power driving a reel. It can vertically lift or horizontally and obliquely draw heavy weights. This series of variable speed electric cable pulling winch is mainly used for hoisting, pulling and unloading, towing the heavy cargo, such as various types of large and medium sizes of concrete, steel structure, installation and disassembly of mechanical equipment. It's applicable to civil construction and installation projects of construction and installation enterprises, mining areas and factories, etc.

Classification and features of 220v electric winch

1 JM series electronic control slow speed winch

2 JK electronic control high speed winch,

3 JMM friction series winch,

4 JK-D series winch and

5 JKL series han control high speed free rolling winch.

Mainparameters of electric winches

JM series electric winches main parameters

Main parts of 220v electric winch

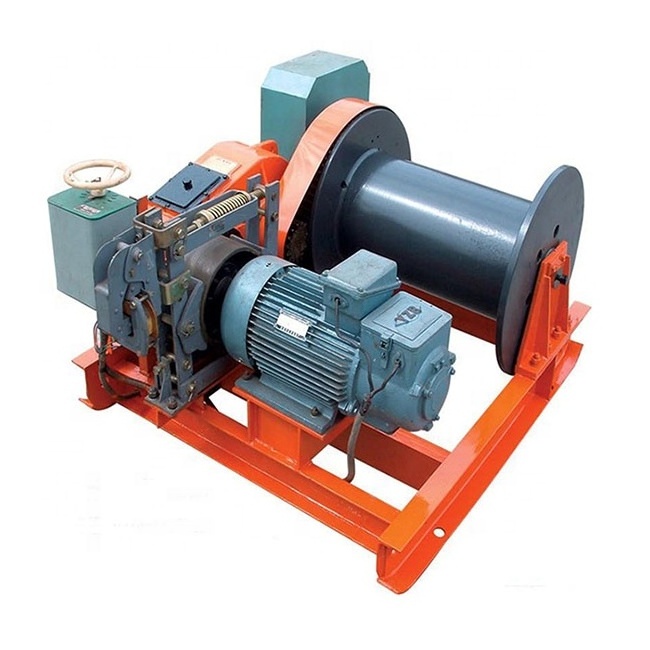

An electric winch consists of a motor, the coupling, the brake, the gear bos, and the reel which are altogether installed on the machine frame. For high lifting height, heavy load and unload as well as frequent work, the winch has a good speed regulation making a empty hook swiftly down, and for installed or sensitive material, the winch can adopt a small speed.

Work principle of 220v electric winch

Please see the blow picture, transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.

Main features of 220v electric winch

1 compact structure,

2 small volume,

3 light dead weight,

4 heavy lifting capacity,

5 convenient movement.

Some progresses of 220v electric winches

220v electric winch has the features of compact structure, small volume, light dead weight, heavy lifting capacity, convenient movement. And it can be used in many industries, such as construction, mining, bridge, steel plant, and etc. The blow pictures are some of our projects, and we can design 220v electric winch as your request.

1. 220v electric winches are packed by high quality plywood crate, to reduce distortion in conveying;
