Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine
Plastic product molding making CE Vertical injection molding machine

Plastic product molding making CE Vertical injection molding machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4200
≥5 Sets
US $4000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Plastic Type:
Thermoplastic
Automatic:
Yes
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Dimension:
1200*900*2300mm
Max.Injection pressure:
1625/1164 MPa
Injection weight:
1.4-1.9oz
Nozzle contact force:
2.4tf
OEM:
Yes
Oil tank capacity:
90L
Machine Weight:
600KGS
Screw diameter:
22 26
Screw speed rotation:
0-150r.p.m.
Opening Stroke:
90mm, 200mm
Clamping Force (kN):
15
Certification:
ISO CE

Quick Details

Injection Weight (g):
58 g
Screw Speed (rpm):
1 - 150 rpm
Screw diameter (mm):
26 mm
Place of Origin:
Guangdong, China
Plastic Type:
Thermoplastic
Automatic:
Yes
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Dimension:
1200*900*2300mm
Max.Injection pressure:
1625/1164 MPa
Injection weight:
1.4-1.9oz
Nozzle contact force:
2.4tf
OEM:
Yes
Oil tank capacity:
90L
Machine Weight:
600KGS
Screw diameter:
22 26
Screw speed rotation:
0-150r.p.m.
Opening Stroke:
90mm, 200mm
Clamping Force (kN):
15
Certification:
ISO CE
Products Description

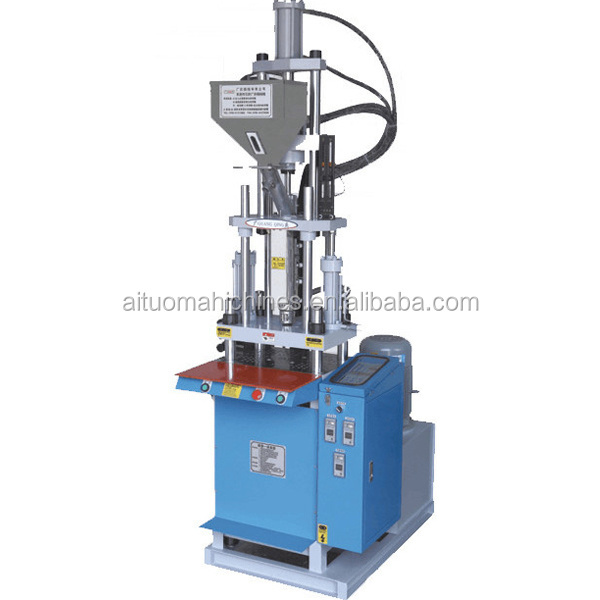

AM701-15T Vertical Injection Molding Machine

We will provide the operation instructions for all required machines
Warmly welcome to visit our factory and we will provide filed operating training.

Machine Description
1. Two/ there section the temperature control/ projects the speed/back pressure, not to have the section adjustment suits components of the precise plastic to take shape

2. The fast lock mold/ low pressure idling speed closes the mold, locks the mold exceptionally when the automatic tight open the mold

3. The end products have the fluid capping to leave the installment, the end product takes out extremely facilitates easily

4. May supplement add mold 1S with double slippery mold 2S. Lets the operator more convenient production efficiency and safe
Injection capacity
34/47cm³
Injection weight
1.4-1.9oz
Max.Injection pressure
1625/1164 MPa
Screw stroke
90mm
Clamping force
15tf
Screw speed rotation
0-150r.p.m.
Clamping stroke
200mm
Max.mould height
40mm
Min.molud space
240mm
System pressure
15MPa
Drive motor
2.2kw
Injection Molding

This machine can be used for making many kinds of cable. For example, Micro cable/ Type C cable/ Android cable/
I-Phone Cable/ patch cord cable/ Earphone cable, etc, you only need to change the mold for this injection molding
machine. It is very comvenient.

Productity: About 500-700 pcs/hour (it can make 4 pieces at one time)
Labor: 1 worker Operates 1 injection molding machine
Tips: We can provide complete line machines for manufacturing USB cable/ DC power cable/ Power cord/ Headphone etc.
Packaging & Shipping
Packing
All machines we sell will be packed with wood box, covered with steel tie on the surface in order to avoid damaging during
delivery.Before the shipment, we will provide you some pictures of the goods and the package.Or the machine can be packed per your request.
Shipping
The machines will be shipped out by Express delivery, by Air, by Sea. Or if you have your own shipment forwarder, you also can ask them to arrange the shipment.
By DHL, FedEx, UPS,etc (Door to Door Service), around 5-7days to arrive.
By Air, to your airport (Door to Airport Service), around 3-5 days to arrive.
By Sea, to the seaport (Door to Seaport service), around 30 days to arrive.
Our Company
Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality anagement system.
Work Shop
Our productions mainly are wire terminal processing equipment, which includes: Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, injection molding machine, gas wire stripping machine, copper strap machine and so on. specially, automatic USB soldering machine and automatic wire trip&tin machine are our latest sesearch and development new equipment, which greatly improve production efficiency, and greatly save production cost.



Exhibition & Market
For many years, we adhere to the business philosophy“ Quality first, integrity innovation, to meet customer demands ”. Our company
and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to Asia, America, Europe, ( India, Russia, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic,Turkey, Italy, the United Kingdom etc.)
Certifications
Our service
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.

- --After Sale Service
Don’t worry, we are here to help.We provide professional after-sale Team, video technical support, online support. And our team also can go to your factory to provide field operating training

---Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. AM engineers are here for your assistance.

- --OEM
AM provides OEM services to our customers.

FAQ
1.Why choose Aituo?
For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.

2.Is Aituo a factory?
Yes, Aituo is a factory. We have production department, engineering department, quality department, sales department and so on.Our factory address is No.1 building, ZhaoFuDa Industry Park,SongGang,Baoan District, Shenzhen, 518105, China. We are warmly welcome you to visit our factory.

3.Is this machine easy to use and if we have no experience, can we also operate it well?
Yes,our machine is designed to use easily. And we will provide operation instructions file.

4. What kind of payment terms do you accept?
We accept the payment terms: Bank transfer, WesterUnion, Cashes, Paypal, etc.

5. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.


6.What's your delivery time?
About 10-15 days

7.How about the package? Is it safe during the transportation?
All machines will be packed with wood box, covered with steel tie and foam on the surface in order to avoid damaging during transportation.
