Quick Details
-
Place of Origin:
-
Henan, China
-
Weight:
-
max 5.3kg
-
Type:
-
Ni-CD
-
Nominal Voltage:
-
1.2V
-
weight(filled):
-
3.8 KGS
-
container material:
-
PP
-
Size:
-
138*61*266(MM)
Quick Details
-
Brand Name:
-
Heng Ming
-
Certification:
-
IEC60623
-
Model Number:
-
GNC(KPX) 60
-
Place of Origin:
-
Henan, China
-
Weight:
-
max 5.3kg
-
Type:
-
Ni-CD
-
Nominal Voltage:
-
1.2V
-
weight(filled):
-
3.8 KGS
-
container material:
-
PP
-
Size:
-
138*61*266(MM)
B asic technical specification
1.Cell type:GNC60=KPX60AH
2.Nominal Voltage:1.2V
3.Rated Capacity:60ah
4.Dimension:138*61*266(mm)
5.Thread of pole:M10
6.Weight (filled):3.8 KGS
7.Electrolyte Volume:0.6L
8.Container material :PP
9.Nominal operationg temperature:20°C±5°C
10.Operating temperature range:–20°C~45°C
11.Terminal material :Nickel-clad steel
12.accessory: dust cover ,connectoer, battery terminal ,solid electrolyte(KOH flakes and LIOH power),rack available
Features of Hengming Batteries
Hengming nickel-cadmium alkaline storage batteries are designed with excellent performance,Minimum
maintenance and the longest life. Our batteries can adapt to different working conditions and have been widely used in many kinds of application in Middle east,Africa, Southeast Asia, South American.
The series and features of Hengming Fengyun alkaline storage batteries as follow:
|
Series |
Discharge rate |
Plate type |
Application areas |
|
KPX |
Ultra High rate |
Sintered plate |
AGV; starting power; operating power of electrical system; etc. |
|
KPH |
High rate |
Pocket plate |
Staring power; UPS; etc. |
|
KPM |
Medium rate |
Pocket plate |
Starting power; operating power of electric system; UPS etc. |
|
KPL |
Low rate |
Pocket plate |
Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc. |

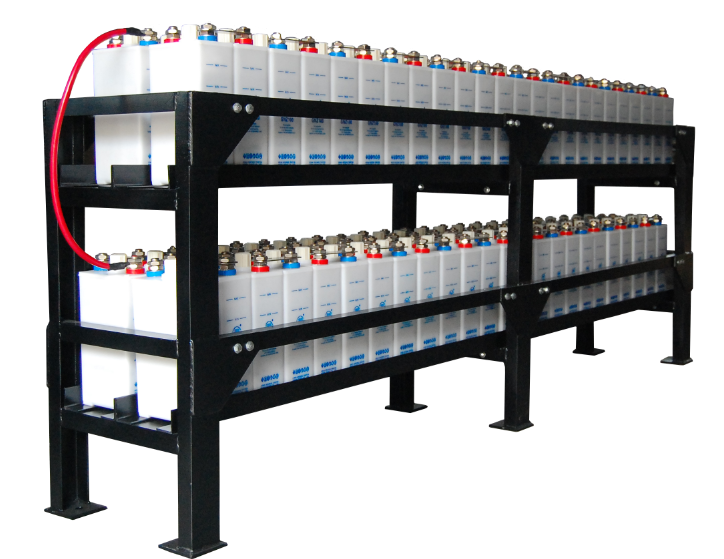

Other Photos for KPX250AH
