Quick Details
-
Brand Name:
-
ESCHON
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

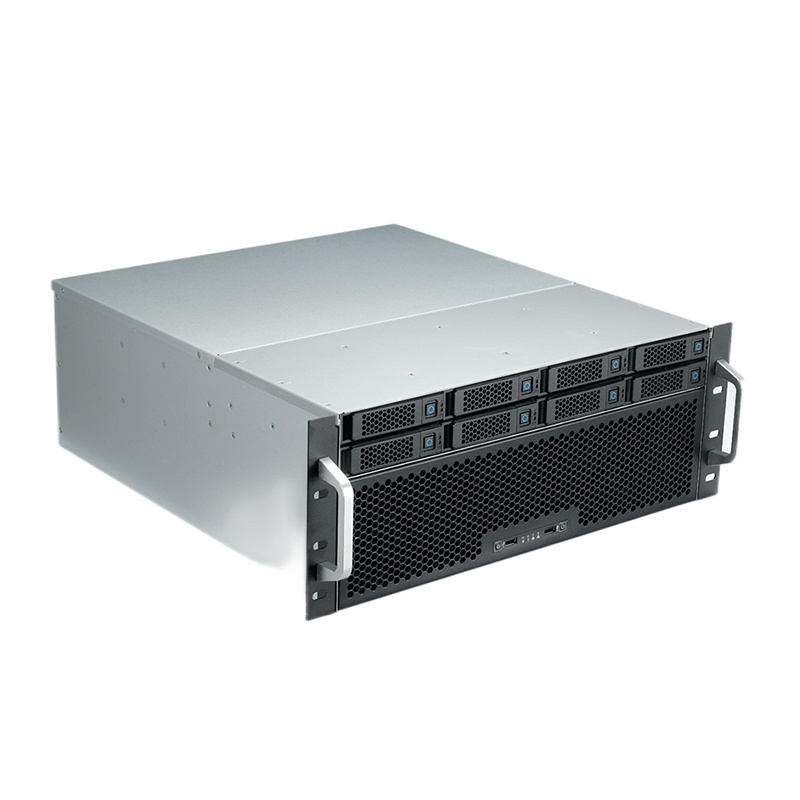

Hotswap Server case
-
Chassis size:
-
480*431*175mm
-
Materials:
-
The housing adopts 1.0mm galvanized steel plate.
-
Main board:
-
Support ATX (maximum size 305*244mm)
-
Hard disk bit:
-
Supports 8*3.5 hard drives and 1*2.5 solid state drives
-
fan:
-
Four 8025 fans are standard
-
Power source:
-
ATX power supply
-
key:
-
On/off /USB2.0 interface X2
-
Panel:
-
Panel 1.0 Honeycomb hole, black powder
-
Case handle:
-
Aluminum handle
Quick Details
-
Type:
-
Server chassis
-
Form Factor:
-
ATX
-
Material:
-
SGCC
-
Brand Name:
-
ESCHON
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Hotswap Server case
-
Chassis size:
-
480*431*175mm
-
Materials:
-
The housing adopts 1.0mm galvanized steel plate.
-
Main board:
-
Support ATX (maximum size 305*244mm)
-
Hard disk bit:
-
Supports 8*3.5 hard drives and 1*2.5 solid state drives
-
fan:
-
Four 8025 fans are standard
-
Power source:
-
ATX power supply
-
key:
-
On/off /USB2.0 interface X2
-
Panel:
-
Panel 1.0 Honeycomb hole, black powder
-
Case handle:
-
Aluminum handle
Products Description
Details Images
Specification
|
Model No.
|
4U-YC4808H
|
|
Dimension
|
D*W*H(mm)： 480* 431 * 175
|
|
Material
|
1.0mm SGCC
|
|
M/B support
|
ATX (Max 305*244mm)
|
|
Cooling Fan
|
8025 * 4
|
|
Power Ports
|
Standard ATX
|
|
Drive Bay
|
3.5'' HDD *8; 2.5'' SSD *1;
6GB Mini-sas SFF8087 Expander Board
|
|
Expansion Slot
|
7 vertical PCI expansion slots (standard)
|
|
Front Ports
|
USB2.0 *1; USB3.0 *1
|
|
Front Control Switch
|
Power ON/OFF x1 ; Reset x1 ;
|
|
Front LED Indicator
|
Power *1 ; HDD *2； LAN NIC LED *2
|
|
Front Panel
|
1.0 Honeycomb hole, dusting black;
|
|
Chassis handle
|
Aluminum handle
|
|
Chassis Colour
|
Original color;
|
|
N.W / G.W
|
11.0kgs /12.0kgs
|
|
Packing Carton Size
|
W*D*H：65*56*24.6CM / 2.76 cuft /
Single carton with Poly foam
|
Packing&Delivery
That was great if you have an forward can do the shipping for you . And we are glad to check the best shipping cost for you when you wanna confirmed a order and do not have any forward in China. Ocean,Express ,Air were no problem . Besides if you wanna know more products please send email to me were ok .
