Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZigBee pwm 1-10V 0-10v automatic dimmer with timer
-
Keyword:
-
DALI dimming led light 1-10V 0-10v automatic dimmer with timer
-
Output Voltage:
-
1-10V
-
0-10V Max Output Current:
-
15mA
-
Relay Max Output Current:
-
5A
-
Application:
-
DALI
-
IP Rating:
-
IP65
-
Power Metering Funtion:
-
Yes
-
Failure Report:
-
Yes
-
Version:
-
0-10v/ 1-10v/ PWM
-
Size:
-
125*68*40mm
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZigBee pwm 1-10V 0-10v automatic dimmer with timer
-
Keyword:
-
DALI dimming led light 1-10V 0-10v automatic dimmer with timer
-
Output Voltage:
-
1-10V
-
0-10V Max Output Current:
-
15mA
-
Relay Max Output Current:
-
5A
-
Application:
-
DALI
-
IP Rating:
-
IP65
-
Power Metering Funtion:
-
Yes
-
Failure Report:
-
Yes
-
Version:
-
0-10v/ 1-10v/ PWM
-
Size:
-
125*68*40mm

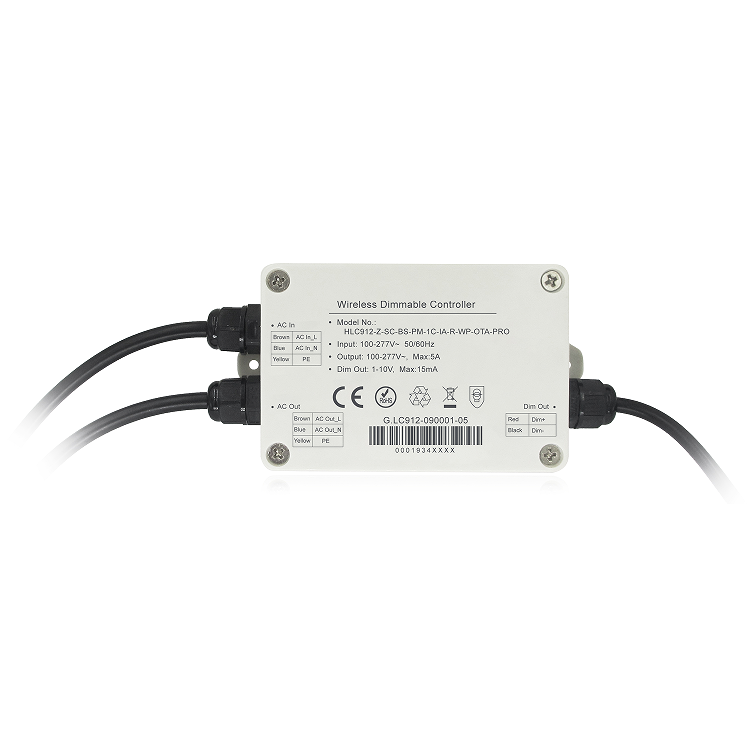

IP65 smart 1-10V 0-10v dimmable led light DALI dimmer with timer APP control
AHLC912-D-SC-1C-R is a kind of DALI 1-10V dimming LED controller. It is applied to industry LED lighting for dimming purposes. It works with 1-10V or 0-10V dimming driver like Meanwell, Philips and so on.
With Amelech’s iLightsIn Pro lighting control system, the controller manages short-distance or long-distance wireless control on LED lights by Mobile Phone, Tablet, PC, Wall Switch, Remote Control, Daylight Sensor and Motion Sensor.
|
Part no. AHLC912-D-SC-1C-R |
||
|
AHLC912 |
project name/ index |
|
|
D |
DALI Protocol |
|
|
SC |
single color |
|
|
1C |
1-channel dim out |
|
|
R |
Relay |
|
Caution: Please keep the main power off while installing!
|
Parameter |
|
|
Model |
AHLC912-D-SC-1C-R |
|
Input Voltage |
100-277V ac 50/60Hz |
|
Output Voltage |
100-277V ac 50/60Hz |
|
1-10V (15mA Max) |
|
|
Max Current of Relay |
5A Max |
|
Standby Power |
1.5W |
|
Waterproof |
IP65 |
|
Operating Temperature |
-40 ℃ to 85 ℃ |
|
N.W. |
457g (No external Antenna) |
|
G.W. |
498g (No external Antenna) |
|
Package |
1PCS/ Package |
