DEXIN NEP100 UDP RTP RTSP RTMP HTTP HLS Encoder HDMI SDI input to ip encoder video card hdmi input Network IP encoder

DEXIN NEP100 UDP RTP RTSP RTMP HTTP HLS Encoder HDMI SDI input to ip encoder video card hdmi input Network IP encoder

FOB Reference Price: Get Latest Price

≥1 Sets

US $1600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

input:: hdmi sdi

Output:: UDP RTP RTSP RTMP HTTP HLS

OSD:: Support

video format:: h.265, h.264 mpeg4

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: DEXIN

Model Number:: NEP100

input:: hdmi sdi

Output:: UDP RTP RTSP RTMP HTTP HLS

OSD:: Support

video format:: h.265, h.264 mpeg4

DEXIN NEP100 UDP RTP RTSP RTMP HTTP HLS Encoder HDMI SDI input to ip encoder video card hdmi input

Network IP encoder

Product Description

Outline

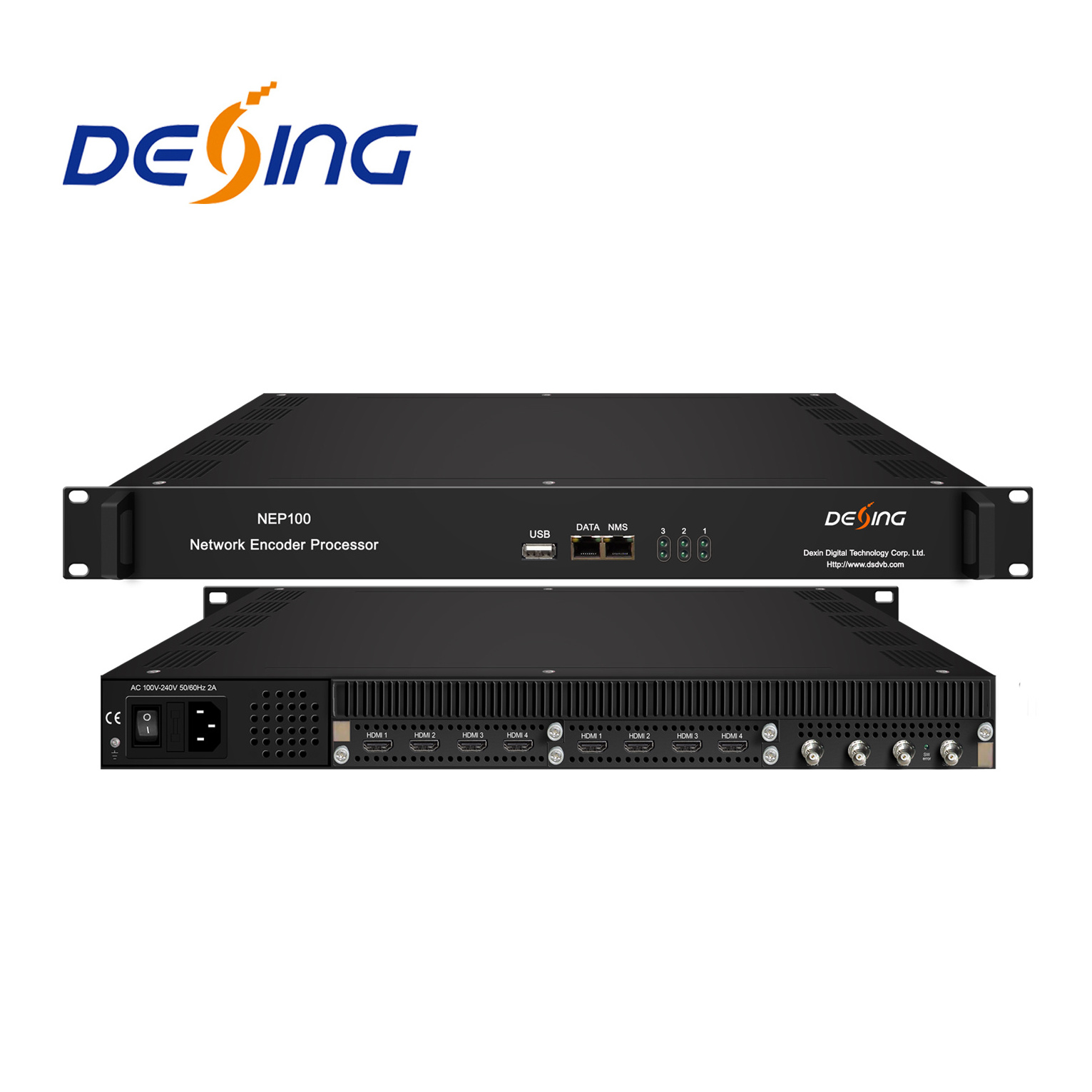

NEP100 network encoder processor is an IP broadcasting device with multiple inputs (HDMI/SDI) which can convert the input programs into IP format and send to terminals through the internet/LAN.

This 1-U chassis comes with 3 slots which allow loading different encoder modules with different interfaces and video formats.

Key Features

l Modular design, 1U chassis with 3 slots

l Support flexible combination of encoding modules, up to 12 HD programs inputs

l HDMI/SDI modules available, HEVC/MPEG4 video format for option

l 1 GE port with maximum 180Mbps data processing and output

l IP out over UDP (SPTS) (Unicast/Multicast),

RTP (Unicast/Multicast), RTSP(Unicast), RTMP(Unicast), HTTP(Unicast), HLS (Unicast); RTMP only works under H. 264 video format and AAC audio format

RTSP/RTMP/HTTP/HLS support each ch video bitrate max: 8Mbps

UDP/RTP support each ch video bitrate max: 12Mbps

l Support Web management, Upgrade via USB port

Encoder Module Specifications

&DX224HV

Module Specifications:

Input: 4×HDMI (1.4) input, HDCP 1.4, or 4×SDI input

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

DX224HV	Input	Output
	Input	HEVC/H.265	MPEG-4 AVC/H.264
	4*1080P-50	4* 1080P-50	41080P-25 21080P-50
	4*1080P-60/59.94	4* 1080P-60, 4* 1080P-59.94	41080P-30 41080P-29.97 21080P-60 21080P-59.94
	4*1080I-50	4* 1080P-50, 4* 1080P-25	41080I-50 41080P-25 2*1080P-50
	4*1080I-60/59.94	4* 1080P-60, 4* 1080P-30	41080I-60 41080P-30 2*1080P-60
	4*720P-50	4* 720P-50	4*720P-50
	4*720P-60/59.94	4* 720P-60, 4* 720P-59.94	4720P-60 4720P-59.94
DX224H	Input	Output
	Input	HEVC/H.265	MPEG-4 AVC/H.264
	4*1080P-50	4* 1080P-50	4*1080P-50
	4*1080P-60/59.94	4* 1080P-60, 4* 1080P-59.94	41080P-60 41080P-59.94
	4*1080I-50	4* 1080P-50, 4* 1080P-25	41080P-25 41080P-50 4*1080I-50
	4*1080I-60/59.94	4* 1080P-60, 4* 1080P-30	41080P-30 41080P-60 4*1080I-60
	4*720P-50	4* 720P-50	4*720P-50
	4*720P-60/59.94	4* 720P-60, 4* 720P-59.94	4720P-60 4720P-59.94
