Quick Details
-
Brand Name:
-
CCDCAM
-
Model Number:
-
EC-IP3810U
-
power:
-
POE
-
Resolution:
-
2MP 1080P
-
white distance:
-
10m
-
Camera aperture angle:
-
150° (2.1mm lens)
-
protectiond grade:
-
IP68
-
network monitoring:
-
Web viewer, CMS
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof
-
Function:
-
Waterproof / Weatherproof, Wide Angle
-
Customized support:
-
Online technical support
-
Brand Name:
-
CCDCAM
-
Model Number:
-
EC-IP3810U
-
power:
-
POE
-
Resolution:
-
2MP 1080P
-
white distance:
-
10m
-
Camera aperture angle:
-
150° (2.1mm lens)
-
protectiond grade:
-
IP68
-
network monitoring:
-
Web viewer, CMS
Details Images
Feature
1/3” 2Megapixel progressive scan CMOS
25/30fps@1080P(1920x1080) & 25/30fps@720P(1280×720)
IP68, POE – Max. water depth: 10 m
Multiple network monitoring: Web viewer, CMS
Camera aperture angle: 150°
White light Distance: 10m
Housing material: stainless steel 304
Attachment bar: adjustable by 180°
Toughened safety glass (ESG)
25/30fps@1080P(1920x1080) & 25/30fps@720P(1280×720)
IP68, POE – Max. water depth: 10 m
Multiple network monitoring: Web viewer, CMS
Camera aperture angle: 150°
White light Distance: 10m
Housing material: stainless steel 304
Attachment bar: adjustable by 180°
Toughened safety glass (ESG)
Intelligent lighting control system
Intelligent photosensitive IC automatically senses the environment and automatically switches the lighting mode.
SWIMMING POOL CAMERA
It can be installed under a swimming pool to check if someone is drowning. Or record video for swimmers in real time.
Aquarium Camera
Install cameras in aquariums facilitates real-time viewing of water creatures' activities. It facilitates the management of staff
and saves staff cost
and saves staff cost
POOD CAMERA
If you have a lot of fish in your pond. I'm sure you would love to see how they are doing underwater. Are they sick, are they
eating properly, etc.
eating properly, etc.
|

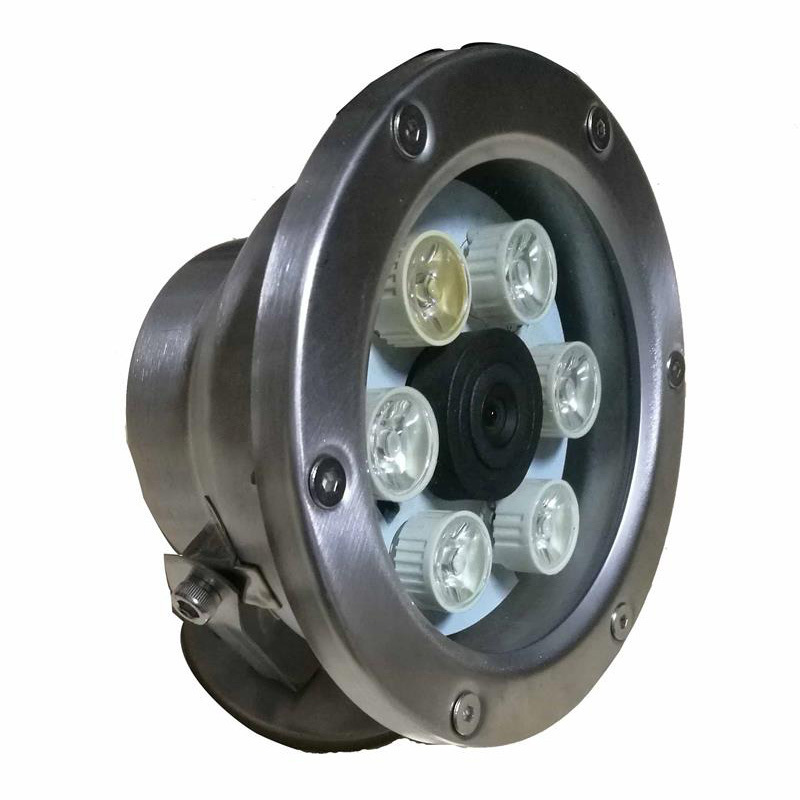

Model
|
|
EC-IP3810U
|
|
|
Camera Type
|
|
2.0MP real-time underwater IP Camera
|
|
|
Camera
|
Image Sensor
|
1/3” 2Megapixel progressive scan CMOS
|
|
|
|
Effective Pixels
|
1920×1080
|
|
|
|
Min.Illumination
|
Color 0.6Lux/F1.4
|
|
|
|
Lens
|
2.1 / 3.6 / 4.2mm Lens
|
|
|
|
Lens Mount
|
M12 Mount
|
|
|
|
Material
|
stainless steel 304L
|
|
|
Compression
|
Compression Standard
|
H.265++/H.265+/H.265/H.264
|
|
|
|
Video Frames
|
PAL/NTSC 2MP@1~30FPS
|
|
|
|
Video stream output
|
Support adjustable stream 0.1M ~ 10Mpbs
|
|
|
|
Quality
|
3D-DNR,BLC,AWB,auto ISO
|
|
|
|
Resolution
|
Main Stream:
1920×1080 30fps(2MP),1280×720(1MP) 30fps |
|
|
|
|
Sub Stream:640×360 (1-30fps)
|
|
|
Network
|
Parameter Settings
|
WEB configure and OSD supported, Real time recording,
|
|
|
|
|
Transmission and playback
|
|
|
|
Basic
|
Dual stream, Password protection
|
|
|
|
Protocol
|
HTTP/Onvif/DHCP/DDNS/NTP
|
|
|
|
Alarm
|
Support Motion Detection, Linkage Alarm, Linkage recording,
|
|
|
|
|
Sensor trigger alarm functions
|
|
|
Interface
|
Video Output
|
RJ45
|
|
|
|
Network Interface
|
1 RJ45 Ethernet interface, 10/100M adaptation
|
|
|
Other
|
Work Environment
|
-10°C- +60°C
|
|
|
|
Waterproof Criterion
|
IP68
|
|
|
|
Power Supply
|
Dual-PoE,5w, IEEE802.3af; End-span(1,2+/3,6-) and Midspan(4+/7-)
|
|
|
|
Size
|
Ø 145 x 110 mm
|
|
|
|
Cable
|
Industrial Ethernet; application-temperature range: -20°C to +50°C
|
|
|
|
Net Weight
|
N.W.0.7kg +cable 0.12kg/m
|
|
