* Custom printing, logos, and graphics
* Surface texture materials
* Custom shapes
* Backlighting (fiber optic or electroluminescent)
* Multiple tactile dome options for tactile feedback or non-tactile option
* EMI/ESD/RFI shielding options (for electro-magnetic interference, electro-static discharge and radio frequency interference
shielding)
* Embossing
* Embedded LEDs and/or resistors
* Multiple connector styles
* Sealed to keep out incidental dust and moisture
* Window lens coating
* Many more options are availa
ble
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Pantone and RAL color
-
Material:
-
PET PC PVC
-
printing type:
-
silk/screen printing
-
adhesive:
-
3M467,3M468
-
size:
-
customized size accepted
-
feature:
-
Waterproof, Dust-resistance, Durable
-
Connector:
-
2..54mm female connector or 1mm ZIF connector
-
Circuit:
-
FPC circuit
-
Certification:
-
ISO9001/ISO14001/RoHS
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Custom
-
Model Number:
-
CE-10685
-
Color:
-
Pantone and RAL color
-
Material:
-
PET PC PVC
-
printing type:
-
silk/screen printing
-
adhesive:
-
3M467,3M468
-
size:
-
customized size accepted
-
feature:
-
Waterproof, Dust-resistance, Durable
-
Connector:
-
2..54mm female connector or 1mm ZIF connector
-
Circuit:
-
FPC circuit
-
Certification:
-
ISO9001/ISO14001/RoHS
Product Description

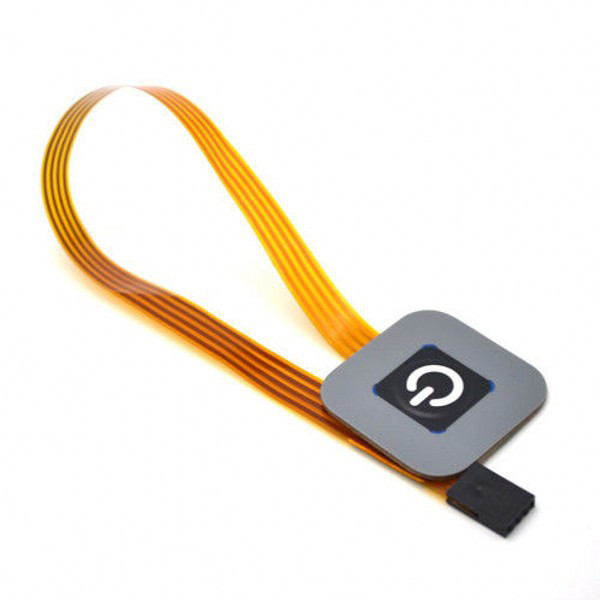

What is a Membrane Switch?
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screenprinting the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical swit ch.
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screenprinting the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical swit ch.
Technical Specifications
|
Electronic Characteristic
|
<35V ( DC )
<100mA 1W |
|
Operation Force
|
flat type 57-284g (2-10 Oz), tactile type 170-397g
(6-14 Oz |
|
Contact Resistance
|
10Ω--500Ω (According the
trace length and materials to confirm) |
|
Life Expectancy
|
flat type ≥ 500 milliontimes,
tactile type: ≥ 100 million times |
|
Insulating Impedance
|
>100MΩ 250V DC |
|
Operation
Temperature |
-40 °c ~ + 80 °c
|
|
Resistance of the wire
|
<1 Ω/cm width 1.27mm |
|
Stock Temperature |
-40 °c ~ + 85 °c
|
Optional Features
Embossed and tactile features membrane switches are widely used on consumer products, like hot tubs.
Strong adhesives ensure your switch is durable enough to hold up to your product’s natural environment.
membrane switch construction
Application
measuring instrument
medical equipment
i industrial controls
health&fitness equipment
