Quick Details
-
Input Voltage(V):
-
42-46V
-
Product Weight（kg）:
-
0.7
-
Viewing Angle(°):
-
25,60,90,145*90,150*70,others
-
Color Temperature:
-
2700-6500K
-
Place of Origin:
-
China
-
Size:
-
300mm*78mm*52mm
Quick Details
-
Color Temperature(CCT):
-
2700K-6500K
-
Warranty(Year):
-
5-Year
-
Luminous Efficacy(lm/w):
-
170
-
Input Voltage(V):
-
42-46V
-
Product Weight（kg）:
-
0.7
-
Viewing Angle(°):
-
25,60,90,145*90,150*70,others
-
Color Temperature:
-
2700-6500K
-
Place of Origin:
-
China
-
Size:
-
300mm*78mm*52mm

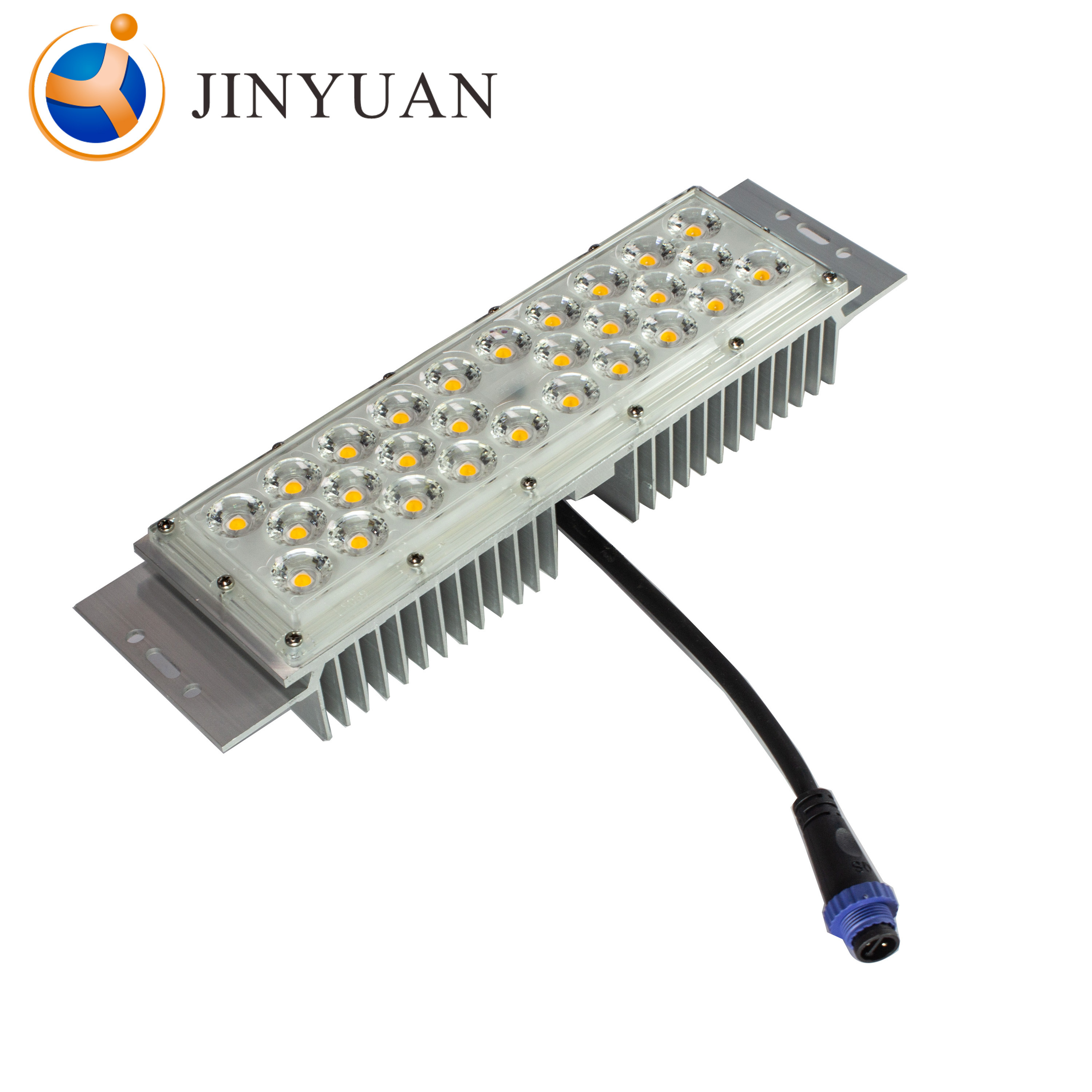

SMD 5050 LED flood light,high bay light,tunnel light used 60W Street Light LED module
At
Jinyuan optoelectronics
, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
JYN09 SERIES LED flood LIGHT modules
Product
Description
:
Lens optional, Uniform light distribution apply to different outdoor project
IP66,apply for different design of light housing: street light, garden lamp, high mast light, tunnel light, high bay light, canopy light, gas station light, flood light, etc.
Test report
(Take the parameter:60W,beam angle:25
°as example
)
here is 42-46V LED modules
| NO. | Module | Model |
Power
(W) |
Luminous efficiency
(Lm/w) |
Angle | Module size/mm | Volatge/V |
Warranty
(year) |
| 1 | N09 | JYN09 | 60 | >160 | 25 | 300*78*52 | 42-46 | 5 |
This module can make from 40W to 60W
| LED | 5050 | ||
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K | ||
| CRI | ≥ Ra70 | ||
| Power | 40W | 50W | 60W |
| Voltage | 42-46V | ||
| Current | 900mA | 1100mA | 1300mA |
| Light efficiency | 180-190lm/W | 170-180lm/W | 160-170lm/W |
| Size | 300mm*78mm*52mm | ||
| IP | IP66 | ||
| LED arrangement | 14P2C | ||
| Connector | Two core IP65 terminals, in accordance with UL,TUV,SGS,CQC certification specifications, in accordance with CSA016-2015 interface specifications | ||
| Net weight | 0.7kg | ||
Packing:
Small Package/Packaging Product Quantity : 2 PCS
Large Packing/Packaging Produc t Quantity :20 pcs
Application
Apply
for different design of light housing: street light, garden lamp, high mast light, tunnel light, high bay light, canopy light, gas station light, flood light, etc.
