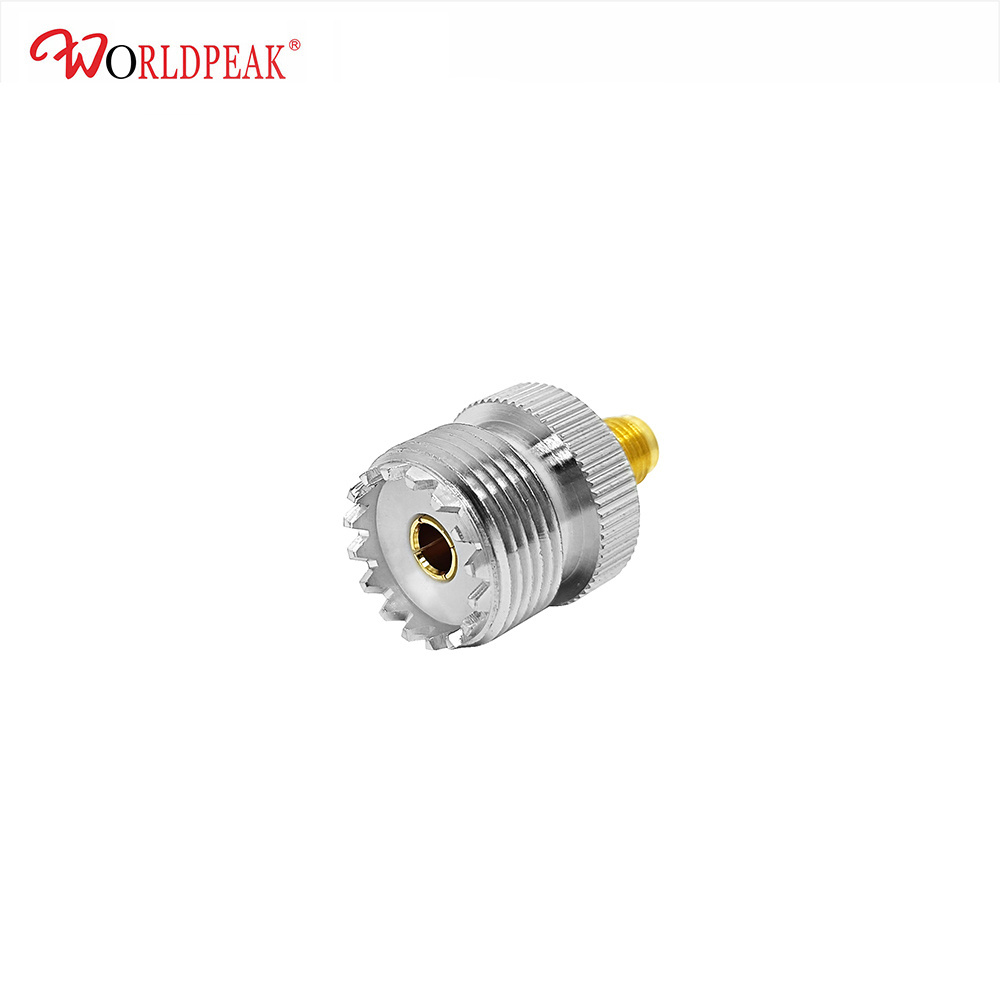

Best quality UHF SO239 female jack to SMA Female Jack Coaxial Straight adapter Connector for car radio antenna

Best quality UHF SO239 female jack to SMA Female Jack Coaxial Straight adapter Connector for car radio antenna

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: WODF

Model Number:: UHFF-SMAF

Product name:: UHF female to SMA female adapter

Frequency Range:: 0~3GHz(50Ω)

Material:: Brass

Certificate:: ISO9001/CE/ROHS/FCC

Plating:: Gold or Nickel

Durability:: >500

ODM/DEM:: Offered

Insulation Resistance:: ≥ 5000 MΩ

Temperature Range:: -55°C~+155°C

Quick Details

Type:: ADAPTER

Application:: RF

Gender:: Female

Place of Origin:: Jiangsu, China

Brand Name:: WODF

Model Number:: UHFF-SMAF

Product name:: UHF female to SMA female adapter

Frequency Range:: 0~3GHz(50Ω)

Material:: Brass

Certificate:: ISO9001/CE/ROHS/FCC

Plating:: Gold or Nickel

Durability:: >500

ODM/DEM:: Offered

Insulation Resistance:: ≥ 5000 MΩ

Temperature Range:: -55°C~+155°C

We are the WORLDPEAK

Product Description

RF antenna Adaptor Connector SMA Female Jack socket to UHF SO239 female jack Coaxial Straight adapter

☀ RF coaxial cable connectors (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .

☀ We focus on coaxial cable and cable connectors.

☀ Our cables and cable connectors are built-in and shipped worldwide.

☀ The N connector (in full, Type N connector) is a threaded, weatherproof, medium- size RF connector used to join coaxial cables. It was one of the first connectors capable of carrying microwave-frequency signals, and was invented in the 1940s by Paul Neill of Bell Labs, after whom the connector is named.

☀ The N connector follows the MIL-C-39012 standard, defined by the US military, and comes in 50 and 75 ohm versions. The 50 ohm version is widely used in the infrastructure of land mobile, wireless data, paging and cellular systems. The 75 ohm version is primarily used in the infrastructure of cable television systems. Connecting these two different types of connectors to each other can lead to damage, and/or intermittent operation due to the difference in diameter of the center pin.

☀ RF cable connectors can be produced to be cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assemblies configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

RF antenna Adaptor Connector SMA Female Jack socket to UHF SO239 female jack Coaxial Straight adapter
Characteristic Impedance	50Ω
Frequency range	0~3GHz（50Ω）
Dielectric Withstanding Voltage	1500V rms
Working Voltage	500V max
VSWR: -Straight -Rigth Angle	≤ 1.22 ≤ 1.3
Contact resistance: -center contact -outer contact	≤1.5mΩ ≤1mΩ
Insulation resistance	≥5000MΩ
Durability	Mating cycles ≥500
Temperature Range	-55°C~+155°C

Piece part	Material	plating
Body	Brass	Nickel plated
Center conductor	Brass	Gold or silver plated
Crimping suite	Copper alloy	Nickel plated
O-ring sealing	6146 silastic
Insulator	PTFE

Note : We can provide other materials and plating specifications according to customers'requirements.

Our company

Zhenjiang W O RLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.

Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.

The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.

Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is “Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.

We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.

Factory aim : Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.

Packing & Delivery

packaging：

The company strictly according to the standard process for packaging products, ensure transportation safety. We support customers a variety of customized requirements, according to customer requirements for packaging.

Delivery：

Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.

We can do it

We can do it:

• Rf Coaxial Adapter Connector Copper Male To Bnc Adapter N Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system
(ISO9001,ISO14001) we have experience about RF components more than 20 years
Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

FAQ

Q : what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
