Quick Details
-
Power:
-
customised
-
Min. Lifting Height:
-
customized
-
Table Size:
-
customised
-
Overall Dimensions:
-
customised
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2023
-
Item name:
-
warehouse cargo lift tables
-
Model:
-
ZTSJD hydraulic cargo lift platform
-
Keywords:
-
hydraulic freight elevator,warehouse cargo lift
-
Application:
-
used for 2rd, 3rd industrial factory workshop, restaurant
-
Lifting height:
-
4.5m, 7.5m, 10.5m, 14m
-
Load capacity:
-
500kg,1000kg,2000kg,3000kg
-
Usage:
-
delivery different height cargo, car, concrete etc
-
Pit depth:
-
150-300mm
-
Material:
-
High-duty Steel Structure
-
Installation:
-
can be installed indoor or outdoor
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZTCL
-
Power:
-
customised
-
Min. Lifting Height:
-
customized
-
Table Size:
-
customised
-
Overall Dimensions:
-
customised
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2023
-
Item name:
-
warehouse cargo lift tables
-
Model:
-
ZTSJD hydraulic cargo lift platform
-
Keywords:
-
hydraulic freight elevator,warehouse cargo lift
-
Application:
-
used for 2rd, 3rd industrial factory workshop, restaurant
-
Lifting height:
-
4.5m, 7.5m, 10.5m, 14m
-
Load capacity:
-
500kg,1000kg,2000kg,3000kg
-
Usage:
-
delivery different height cargo, car, concrete etc
-
Pit depth:
-
150-300mm
-
Material:
-
High-duty Steel Structure
-
Installation:
-
can be installed indoor or outdoor

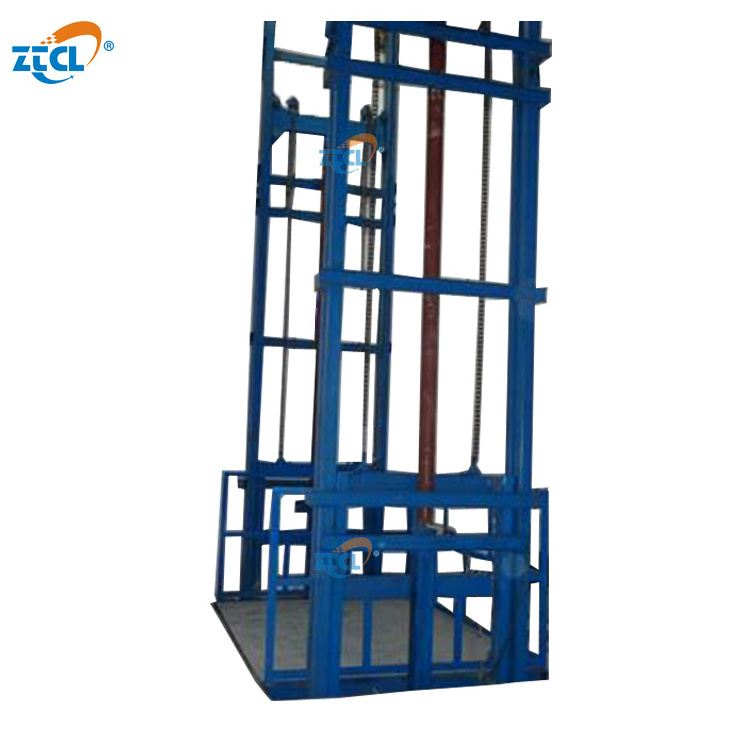

Warehouse cargo lift hydraulic cargo lift goods lift tables
Introduction:
Hydraulic warehouse cargo lifttables
provides fast, efficient, convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It can be installed indoor and outdoor applications.
Warehouse cargo lift Application:
Without restriction of space, they are widely used in lifting operations over large areas, such
narrow space as warehouses, factories, highways and stairwell place where we could not dig pits. It is used to lift up and down large cargo to different levels, normally in the assembly line and other cargo transferring.
Details:
Guide rail cargo lift advantages:
1.High load capacity for cargo transport to higher heights
2.Minimum height 150-300mm
3.simple operation and reliable
4.it can be designed according to your demand
5.hydraulic and electric drive
6.Max. rated loading capacity can be 10tons
Cargo lift Technology Parameters for reference, we can custom made by client request:
| Model | Loading Capacity | Lifting height | Min.height | Table size | Power |
| ZTSJD0.5-4.5 | 500kg | 4500mm | 150mm | 2000*1500mm | 2.2kw |
| ZTSJD1.0-4.5 | 1000kg | 4500mm | 150mm | 2000*1500mm | 3kw |
| ZTSJD2.0-4.5 | 2000kg | 4500mm | 150mm | 2000*1500mm | 3kw |
| ZTSJD3.0-4.5 | 3000kg | 4500mm | 160mm | 2000*1500mm | 3kw |
| ZTSJD0.5-7.5 | 500kg | 7500mm | 150mm | 1200*1200mm | 1.5kw |
| ZTSJD1.0-7.5 | 1000kg | 7500mm | 150mm | 1800*1400mm | 2.2kw |
| ZTSJD2.0-7.5 | 2000kg | 7500mm | 150mm | 2000*1500mm | 2.2kw |
| ZTSJD3.0-7.5 | 3000kg | 7500mm | 160mm | 2000*1600mm | 3kw |
| ZTSJD1.0-10.5 | 1000kg | 10500mm | 150mm | 1800*1400mm | 2.2kw |
| ZTSJD1.0-14 | 1000kg | 1400mm | 150mm | 1800*1500mm | 2.2kw |
| ZTSJD3.0-4.5 | 3000kg | 4500mm | 160mm | 5000*3000mm | 4kw |
Warehouse cargo lift packaged by plywood case.
1.All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you
1. Delivery time
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, L/C, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
ZHONGTIAN lifts can be custom-made.
