Mixed concrete is fed through the vibrating screen to the spraying machines charging hopper by the concrete mixer (or manual mixing and feeding).
- Product Details
- {{item.text}}
Quick Details
-
Air Consumption:
-
7~8 m3/min
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
1520*820*1200mm
-
Weight:
-
600 kg
-
Application:
-
Dry Mix Concrete
-
Operating Air Pressure:
-
8 m3/min
-
Keywords:
-
Shoecrete Machine
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO9001
Quick Details
-
Marketing Type:
-
New Product 2022
-
Max. Conveying Distance:
-
200m
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7~8 m3/min
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
1520*820*1200mm
-
Weight:
-
600 kg
-
Application:
-
Dry Mix Concrete
-
Operating Air Pressure:
-
8 m3/min
-
Keywords:
-
Shoecrete Machine
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO9001
Product Description

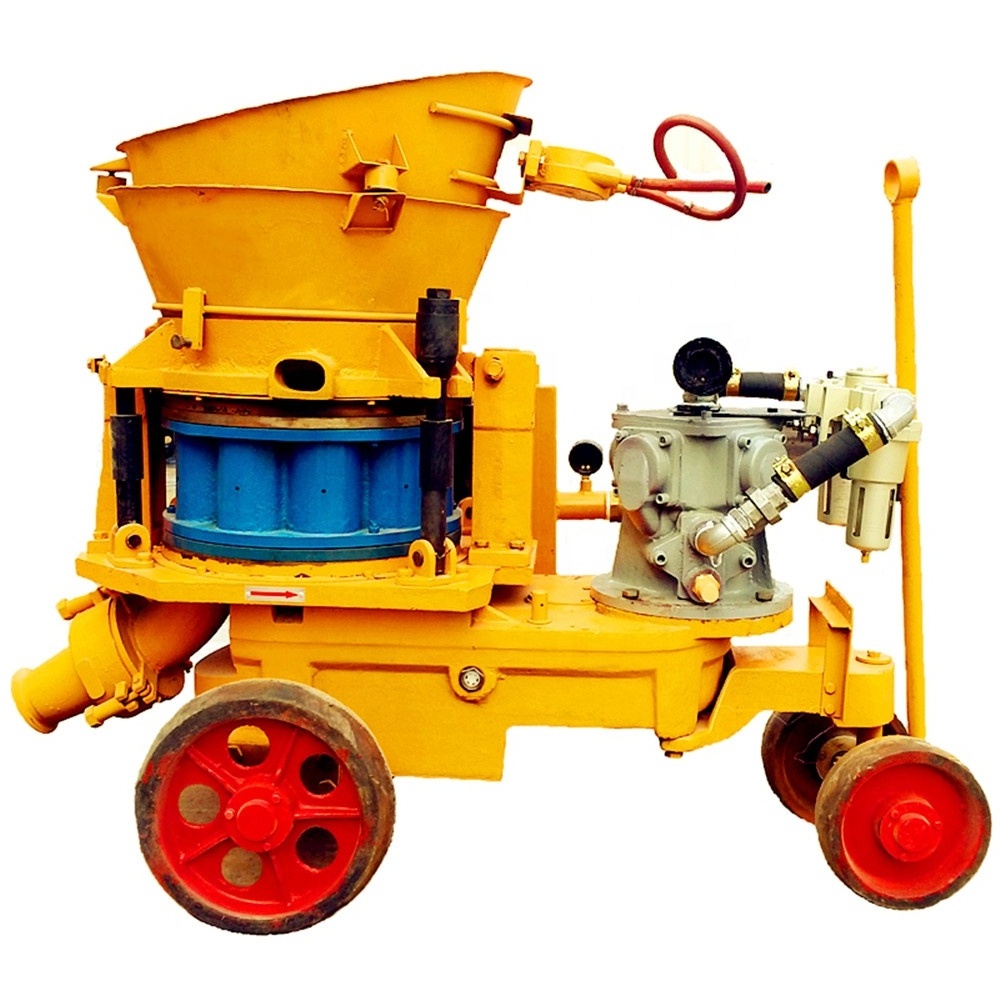

Pneumatic Shotcrete Machine/PZ-5A Air Rotor Motor Dry Mix Shotcrete Gunite Concrete Spraying Machine
1,Major elements of model PZ-5A Concrete Spraying Machine includes the driving device, rotator assembly, air system, spraying system.
2,PZ-5A gunite machine is used for half set shotcreting and dry shotcreting, the hopper vibration mode is based on pneumatic .
3,PZ-5A Structure and working principle is that mixed concrete is fed through the vibrating screen to the spraying machine’s charging hopper by the concrete mixer (or manual mixing and feeding).
|
Model
|
KPZ-3A
|
KPZ-5A
|
KPZ-7A
|
|
Capacity
|
2~3 m3/h
|
4.5~5.5 m3/h
|
5.5~6.5 m3/h
|
|
Conveying dist. max.
|
200 m
|
200 m
|
150 m
|
|
Aggregate size max.
|
15mm
|
20mm
|
20mm
|
|
Conveying pipe ID.
|
φ42/51 mm
|
φ51 mm
|
Φ57 mm/φ51 mm
|
|
Operating pressure
|
0.2-0.6 Mpa
|
0.2-0.6 Mpa
|
0.2-0.6 Mpa
|
|
Air consumption
|
5 m3/min
|
8 m3/min
|
9 m3/min
|
|
Weight
|
400kg
|
600kg
|
950kg
|
Features
Advanced technology, rational structure, stable performance and long service life.
-
Description of application effect
It is widely used in concrete restoration, tunnel,culvert,underground, hydropower engineering construction and mining.
Detailed Images
Packing&Shipping
Wooden case for shotcrete machiner, as customer's request.
