Quick Details
-
Marketing Type:
-
New Product 2024
-
Application:
-
paper, pvc, cardboard, fabric, cloth,
-
Function:
-
Capturing, Nesting, Cutting, Marking, Notching, Punching
-
Working Area:
-
1100x1300mm, 1300x1800mm, customize
-
Handling Thickness:
-
7.0mm
-
Max Working Speed:
-
1.2m/s
-
Supported Format:
-
DXF, PLT
-
Interface Transmission:
-
Ethernet
-
Material Fixed Method:
-
Vacuum Adsorption
-
Customization:
-
Machine size, power supply, function, color, etc.
-
After-sales Service:
-
Training, tech-support, spare parts, etc.
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MEESHON
-
Weight (KG):
-
1200
-
Marketing Type:
-
New Product 2024
-
Application:
-
paper, pvc, cardboard, fabric, cloth,
-
Function:
-
Capturing, Nesting, Cutting, Marking, Notching, Punching
-
Working Area:
-
1100x1300mm, 1300x1800mm, customize
-
Handling Thickness:
-
7.0mm
-
Max Working Speed:
-
1.2m/s
-
Supported Format:
-
DXF, PLT
-
Interface Transmission:
-
Ethernet
-
Material Fixed Method:
-
Vacuum Adsorption
-
Customization:
-
Machine size, power supply, function, color, etc.
-
After-sales Service:
-
Training, tech-support, spare parts, etc.

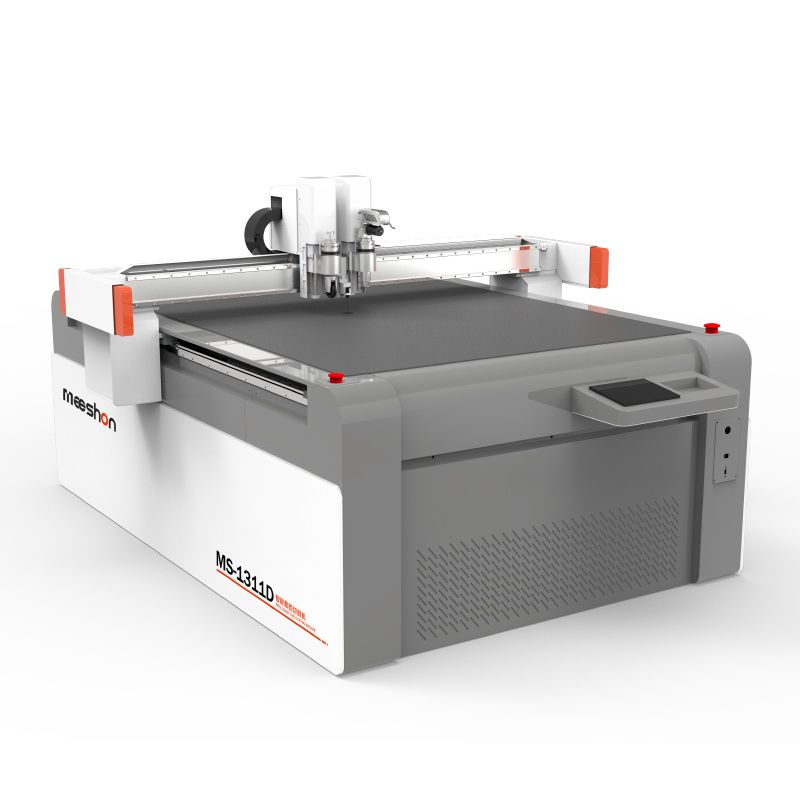

Digital CCD Camera Vinyl Sticker Cutter Corrugated Board Plotter CNC Cardboard Cutting Machine
Products Description
Product Features：
Jinan Meeshon vibrating knife cutting machine is suitable for cutting all kinds of packaging materials, such as corrugated paper, honeycomb paperboard, hollow paperboard, cardboard, gray cardboard, self-adhesive labels, KT board, PVC board, EVA. The maximum cutting thickness of the machine can reach 100mm. The entire production process does not require molds, reduce costs, shorten delivery times, and provide production flexibility. In addition, it can also perform creasing, marking, slotting, etc., making it capable of different tasks. We are equipped with CCD cameras to assist in cutting printed materials for precise results.
Product Parameters
|
Model
|
MS-1311D
|
MS-1813D
|
MS-2516D
|
MS-3018D
|
|||
|
Working Area
|
1100*1300mm
|
1300*1800mm
|
1600*2500mm
|
1800*3000mm
|
|||
|
Cutting Thickness
|
0.1-50mm, Depending on the material, Customized heightened beams up to 100mm.
|
|
|
|
|||
|
Cutting Tolerance
|
±0.1mm
|
|
|
|
|||
|
Transmission Interface
|
Ethernet
|
|
|
|
|||
|
Max Cutting Speed
|
1200mm/s
|
|
|
|
|||
|
Supported Format
|
DXF, PLT, and more
|
|
|
|
|||
|
Fixed Mode
|
Vacuum Absorb
|
|
|
|
|||
|
Function
|
Cutting, Grooving, Creasing, Kissing-cutting, Mark Point Positioning.
|
|
|
|
|||
|
Recommended Configuration
|
Cutting Tool, Double Heads, Oscillating knife+V-cut tool+Creasing tool+Drag knife+Kiss-cutting tool.
|
|
|
|
|||
|
Materials Available For Cutting
|
Cardboard, Corrugated Board, PP Corrugated Sheet, Honeycomb Paper, Gray Board, Sticker etc.
|
|
|
|
|||
|
Transmission system
|
servo motor, linear guide rail, rack and pinion, belt.
|
|
|
|
|||
|
Safety device
|
Infrared adopted, sensitive response, safe and reliable.
|
|
|
|
|||
|
Supply voltage
|
AC110V/220V/380V±10%, 50HZ/60HZ, customized.
|
|
|
|
|||
Details Images
New Modular Tool Holder Design
Easier to install tools, when customers increase the product range, they only need to buy new required tools. Provides convenience for customers to upgrade their products.
Compatible tools:
oscillating knife tool, drag tool, creasing tool, V-cutter, kiss cut tool.
Panasonic Servo Motor
Stable performance, high precision, low failure rate, high speed performance.
Infrared Sensing Safety Device
Horizontal and vertical anti-collision protection is used to guarantee there’s no uncovered blind angle. This will effectively protect operator's safety.
Distribution Box
The CNC cutting machine fixes the control distribution box on the machine body to avoid separation causing line failure. All lines use high flexible cables with good abrasion resistance, moisture resistance, cold resistance and high temperature resistance.
High Precision Aviation Aluminum Vacuum Table
With the unique inner part of the wind structure, to ensure that each area of the platform
suction even, more powerful suction.
suction even, more powerful suction.
Tablecloth
High-density felt provides excellent support for the material, ensures a tight fit with every positioning, and protects the plate during cutting.
Lathe Bed Structure
The whole machine is made of 5mm thick square metal tube, whole welding process, processed by imported milling machine to ensure solid and durable, which greatly improves the stability of the machine body when the machine is running.
Chain
Simple assembly, durability, long silent circular motion, fast movement and long service life.
