Quick Details
-
Model Number:
-
A150-T32-S2-B
-
Brand Name:
-
Tonhe
-

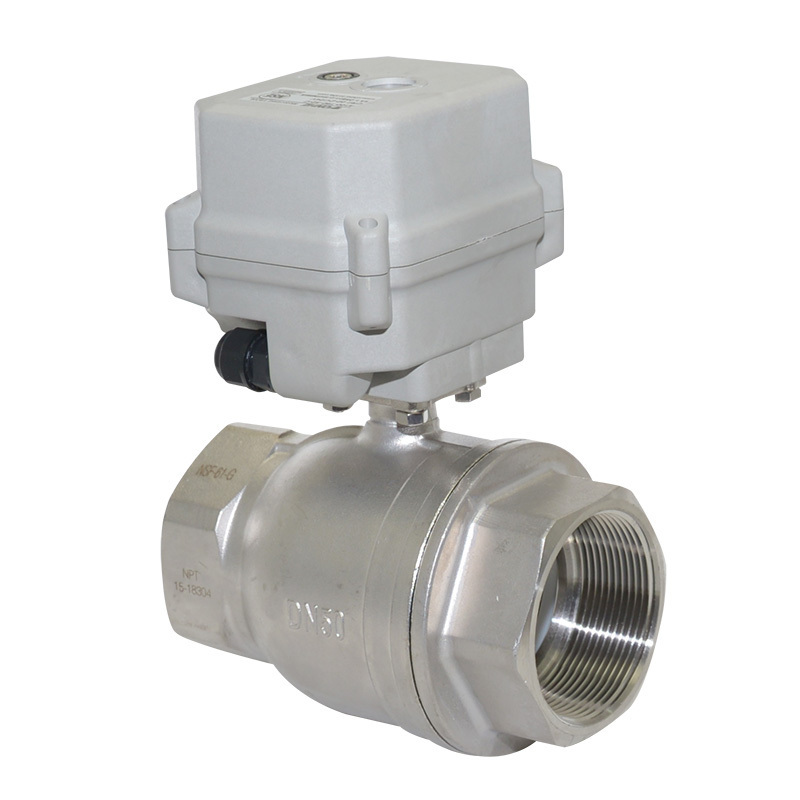

Product name:
-
A150-T32-S2-B
-
Body material:
-
SS304 NSF Certified
-
Type:
-
2-way, BALL VALVES
-
Connection:
-
Thread
-
Torque force:
-
15N.m
-
Medium:
-
Fluid, air
-
Size:
-
1 1/4''
-
Voltage:
-
AC24V,DC12-24v
-
Wiring:
-
CR202
-
Protection:
-
IP67
Quick Details
-
Port Size:
-
1 1/4'' DN32
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A150-T32-S2-B
-
Brand Name:
-
Tonhe
-
Product name:
-
A150-T32-S2-B
-
Body material:
-
SS304 NSF Certified
-
Type:
-
2-way, BALL VALVES
-
Connection:
-
Thread
-
Torque force:
-
15N.m
-
Medium:
-
Fluid, air
-
Size:
-
1 1/4''
-
Voltage:
-
AC24V,DC12-24v
-
Wiring:
-
CR202
-
Protection:
-
IP67
Products Parameters:
| Product size: | NPT/BSP 1 1/4'' , 1 1/2'' 2''(optional) |
| Connection standard: | ISO5211 F03 F04 F05 |
| Output axis specification: | Male square or female octagonal |
| Maximum working pressure: | 1.0MPa |
| Rated voltage: | AC24V,DC12V-24V |
| Wiring diagram: | CR202 |
| Working current: | ≤1A |
| Open/close time: | ≤12s |
| Life time: | 70000times (testing pressuire is 0.4MPa,medium is water) |
| Valve body material: | SS304 NSF61 Certified |
| Actuator material: | PPO |
| Sealing material: | FKM&PTFE |
| Actuator rotation: | 90° |
| Torque force: | 15N.m |
| Cable length: | 0.5m ,1.5m(optional) |
| Environment temperature: | -15℃~50℃ |
| Liquid temperature: | 2℃~90℃ |
| Manual override: | YES |
| Open/close indicator: | yes |
| Protection: | IP67 |
Specification:
Dimention:
Packing method:
1pc/inner carton,3pcs/master carton, packing requirements and packing qty negotiable
Inspection: professional inspection before packing
Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China, specialized in the development,design,manufacture,sales and technical servise of electric ball valve.Our products are exported to many contries and areas all over the world,mainly in Europe&America,which won customer's trust and praise.
Application range:
1.air pump tank automatic drainage
2.automatic watering
3.water treatment
4.energy saving
5.industrial automation
6.other small equipment
Why us :
1. full stock and deliver with a short time
2.OEM and ODM allowed, logo printing or oppointed design available
3.good quality, competitive price,professional sales team with fast response and reliable service
4.professional production team and inspection team
5.Counting cheapest shipping cost for you and make invoice at once
6.Email tracking No.for better tracing parcels.
