Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RFVOTON
-
Model Number:
-
RFVOTON-Surge Protector -5A
-
Frequency range::
-
0-3 to 0-6G
-
Material:
-
Copper
-
Arrestor type:
-
N/SMA/TNC/BNC..
-
Gender:
-
male/female
-
Durability::
-
500 times
-
Certificate:
-
RoHS/ ISO/FCC
-
Plating:
-
Tri-alloy Ni
-
PIN plating::
-
AG
-
Packing method::
-
single package
-
Low PIM::
-
less than -155dBc
Quick Details
-
Type:
-
Singal protection
-
Number of Pole:
-
2
-
Rated Voltage:
-
90
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RFVOTON
-
Model Number:
-
RFVOTON-Surge Protector -5A
-
Frequency range::
-
0-3 to 0-6G
-
Material:
-
Copper
-
Arrestor type:
-
N/SMA/TNC/BNC..
-
Gender:
-
male/female
-
Durability::
-
500 times
-
Certificate:
-
RoHS/ ISO/FCC
-
Plating:
-
Tri-alloy Ni
-
PIN plating::
-
AG
-
Packing method::
-
single package
-
Low PIM::
-
less than -155dBc

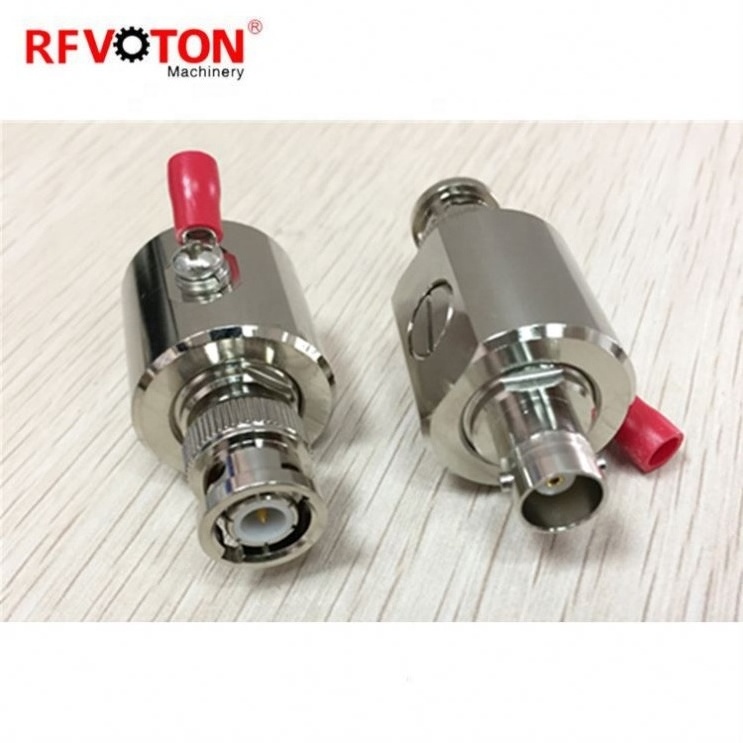

Lightning connector BNC coaxial surge protector cable tv surge protector
RF coaxial Arrestor 7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
Our custom RF cable assemblies are built-in and shipped worldwide
Telephone signal lightning arrester is mainly used in the surge protection of all kinds of telephone wire, audio transmission line
and equipment interface. With over voltage and over current suppression unit installed inside and two levels connection circuit
protection design, the SPD can suppress surge voltage and current effectively. The product has applied the malfunction selfrecovery design, thus providing thorough protection for the signal and the appliance.
According to the definition of the partition of lightning protection, this device can be installed on LPZ0A-2 or a higher interface,
or it can be installed directly at the front-end of the protected equipment. It can be used for the surge protection of telephone
system/ADSL and ISDN telecom circuit.
A surge protector (or surge arrestpr or surge protection) is an appliance or device designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.
antenna surge arrestor
antenna lightning protector
rf surge arrestor
|
Freq Range |
DC-3GHz / DC-6GHz |
|
Voltage |
90V / 220V / 250V / 350V |
|
Protection |
Gas Discharge T ube / 1/4 wavelength |
|
Insertion Loss |
<0.1Db |
| Return Loss |
<-26dB |
|
Max Surge Voltage Let Through |
<200 mV |
|
Through Put Energy |
<5 nJ
|
|
Impedance |
50 OHMS / 75 OHMS |
|
Max Power |
50W |
|
Ingress Protection |
IP65 |
|
Grounding Screw/LUG |
Y |
|
Body |
Brass |
|
Contacts |
Bronze |
|
VSWR |
<1.1(DC-3G) |
|
Max Current Load |
10A |
|
Nominal Discharge Current (kAMP) |
5 kAMP |
|
Max Discharge Current (kAMP) |
20 kAMP |
|
Impulse Current (kAMP) |
2.5 kAMP |
|
Operating Temp(degrees C) |
(-40 to +85) C |
|
ROHS |
Yes |
|
ISO-9000 Certified |
Yes |
APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15.
