Quick Details
-
Model Number:
-
YT-08
-
Type:
-
2-way passive line array speaker
-
Components:
-
2 x 8"/1.4"
-
Frequency response (-5 dB):
-
54 Hz - 19 kHz
-
Maximum SPL:
-
139 dB
-
Normal Impedence:
-
8 ohms
-
Dispersion:
-
80°
-
Cabinet:
-
Birch plywood ,Resistant paint finish
-
Dimensions:
-
257 x 630 x 375 mm
-
Weight:
-
20 kg
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sinbosen
-
Model Number:
-
YT-08
-
Type:
-
2-way passive line array speaker
-
Components:
-
2 x 8"/1.4"
-
Frequency response (-5 dB):
-
54 Hz - 19 kHz
-
Maximum SPL:
-
139 dB
-
Normal Impedence:
-
8 ohms
-
Dispersion:
-
80°
-
Cabinet:
-
Birch plywood ,Resistant paint finish
-
Dimensions:
-
257 x 630 x 375 mm
-
Weight:
-
20 kg
|

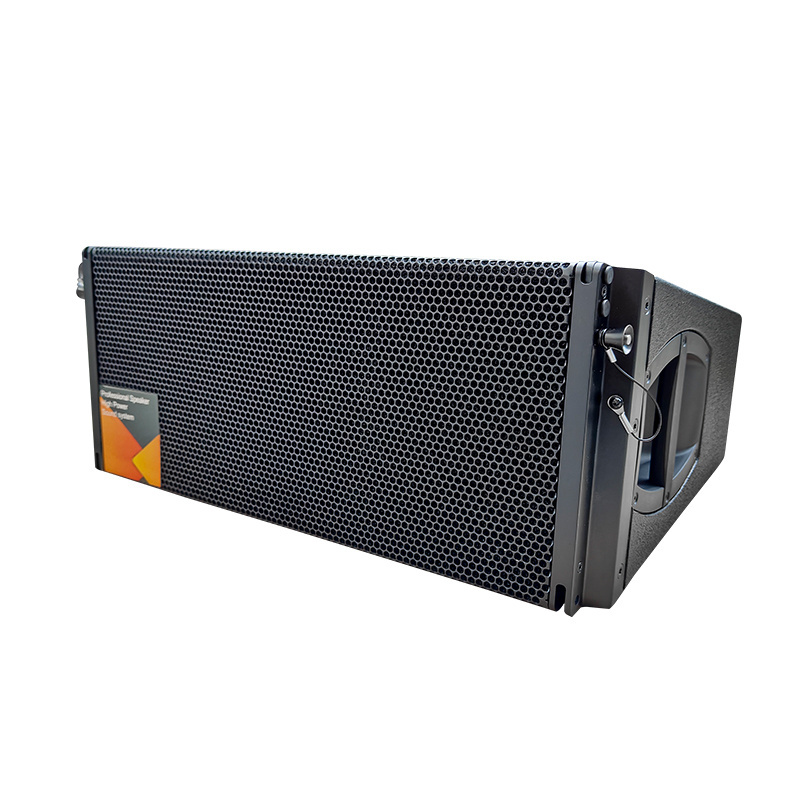

YT-08 Dual 8 Line Line Array Speaker Specification
|
|
|
|
Type
|
High performance 2-way passive line array loudspeaker
|
|
|
Frequency response (-5 dB standard)
|
54 Hz - 19 kHz
|
|
|
Maximum SPL
|
139 dB
|
|
|
Nominal impedance
|
8 Ω
|
|
|
Power handling capacity (RMS/peak 10 ms)
|
400/1600W
|
|
|
Nominal dispersion angle (horizontal)
|
80°
|
|
|
Splay angle settings
|
0° - 14° (1° increment)
|
|
|
Components
|
2 x 8" driver with neodymium magnet
1.4" exit compression driver passive crossover network |
|
|
Connections
|
2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5 |
|
|
Dimensions (H x W x D)
|
257 x 630 x 375 mm
10 x 24.8 x 14.8" |
|
|
Weight
|
20 kg/44 lb
|
|
FEATURE OF VT-08 Line Array Speaker
1. High performance 2-way passive line array loudspeaker.
2. 2x8" LF; 1X1.4"HF neodymium drivers.
3. Vertical line array with a vertical tilt angle of 0°to 14°and a separation of 1°.
4. Weather-resistant Polyurea paint,can withstand all kinds of friction and collisions.
5. Can be combined with multiple multiple Y-SUB speakers to form professional line array system.
8 INCH LF DRIVER
1.4 INCH HF DRIVER
