Quick Details
-
Voltage:
-
220V
-
Power:
-
4.5kw
-
Dimension(L*W*H):
-
650*600*1550
-
Weight (KG):
-
120
-
Marketing Type:
-
Hot Product
-
Product name:
-
Spray Dryer Machine
-
Keywords:
-
Centrifugal Atomizer Spray Dryer
-
Function:
-
Powder Spray Dryer
-
Advantage:
-
High Efficiency
-
Dryer time:
-
1.0-1.5 S
-
Key word:
-
Lab Spray Dryer
Quick Details
-
Type:
-
Spray Dryer
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Voltage:
-
220V
-
Power:
-
4.5kw
-
Dimension(L*W*H):
-
650*600*1550
-
Weight (KG):
-
120
-
Marketing Type:
-
Hot Product
-
Product name:
-
Spray Dryer Machine
-
Keywords:
-
Centrifugal Atomizer Spray Dryer
-
Function:
-
Powder Spray Dryer
-
Advantage:
-
High Efficiency
-
Dryer time:
-
1.0-1.5 S
-
Key word:
-
Lab Spray Dryer
Introduction of Whey Protein Powder Small Spray Dryer/milk Powder Spray Dryer Making Machine
MNSD-1500 has successfully processed samples in the following areas: Beverage, Flavours
and colourings, Milk and egg products, Plant and vegetable extracts, Synthetics Heat sensitive materials,
Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents,Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
and colourings, Milk and egg products, Plant and vegetable extracts, Synthetics Heat sensitive materials,
Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents,Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
Application of Whey Protein Powder Small Spray Dryer/milk Powder Spray Dryer Making Machine
Feature of Whey Protein Powder Small Spray Dryer/milk Powder Spray Dryer Making Machine
1.all-in-one structure , small size, no external flange, easy to use, no leakage.
2.All materials in contact with the product use inert materials to meet the requirements of the GLP.
3.The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4.All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5.with sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6.Patented gas diversion technology, and strong ice holding ability.
7.world- known brand compressors, high efficiency, long life, low noise.
8.Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9.Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10.Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11.Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve,vacuum curve.
2.All materials in contact with the product use inert materials to meet the requirements of the GLP.
3.The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4.All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5.with sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6.Patented gas diversion technology, and strong ice holding ability.
7.world- known brand compressors, high efficiency, long life, low noise.
8.Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9.Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10.Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11.Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve,vacuum curve.
Main parameter of Whey Protein Powder Small Spray Dryer/milk Powder Spray Dryer Making Machine
|
Model
|
MNSD-1500
|
|
Max capacity
|
1500-2000ml/h
|
|
Temperature range of Inlet air
|
30℃ -280℃
|
|
Temperature range of outlet air
|
40℃ -120℃
|
|
Precision of temperature
|
± 1 ℃
|
|
Dryer time
|
1.0-1.5 S
|
|
Speed of squirmy pump
|
30-2000ml/h,
|
|
Consume of dryer air
|
0-330m3 /h, max pressure: 686Pa
|
|
Consume of spray air
|
0-4.2m3 /h, spray pressure: 2-5bar
|
|
Spray system
|
Two-fluid nozzle with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm |
|
Spray direction
|
downwards co-current
|
|
Power
|
3.5KW 220V
|
|
Voltage
|
220/240V-50/60HZ-13amps
|
|
Dimensions
|
650×600×1550 ( mm ) L x W x H
|
|
Weight
|
120kg
|

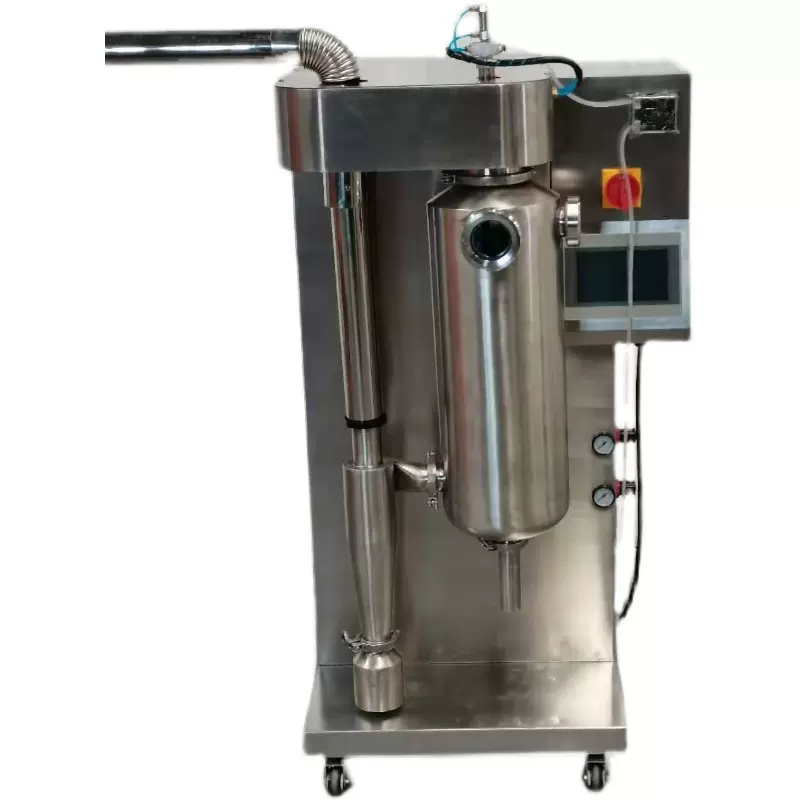

Picture shows of Whey Protein Powder Small Spray Dryer/milk Powder Spray Dryer Making Machine
How to contact us
FAQ
|
MOQ
|
Normal product is 1set, the price is negotiable for large quantity
|
|
Voltage
|
110V 220V 380V 400V 50HZ/60HZ Single /three phase custom-made voltage
|
|
Guarantee
|
Quality guarantee term is for one year.
|
|
Payment
|
T/T , L/C Credit card .Alipay wechat, Western Union . cash E-checking , MoneyGram.RMB
|
|
The Date of delivery
|
Generally within 7working days. If there is a need for special customization, it may take a little longer.
|
|
After-sales service
|
Before sales
24 hours online service .in time reply Any inquiries will be replied within 12 hours provide professional machine details and technology information. After sales Fast delivery and test and adjust machine working well before delivery sending manual book and technical support in order to use well providing install pictures or videos and dispatch the engineer if necessary |
|
