2. Touch screen & PLC control;
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
200 KG
-
Power:
-
550W
-
Number of spindles:
-
6
-
Fiber type:
-
Cotton or cotton-type chemical fibers Customized for wool
-
Twist range:
-
50~250twists/meter
-
Draft range:
-
Approx. 2~50
-
Output capacity:
-
0.25~0.5kg/h
-
Roller diameter:
-
25/25/25mm
-
Ring diameter:
-
38 ~ 45mm
-
Spindle speed:
-
Max. 12000rpm
-
Bobbin length:
-
205mm
-
Twist direction:
-
Z or S, settable
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
lab
-
Production Capacity:
-
100set/year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
200 KG
-
Power:
-
550W
-
Number of spindles:
-
6
-
Fiber type:
-
Cotton or cotton-type chemical fibers Customized for wool
-
Twist range:
-
50~250twists/meter
-
Draft range:
-
Approx. 2~50
-
Output capacity:
-
0.25~0.5kg/h
-
Roller diameter:
-
25/25/25mm
-
Ring diameter:
-
38 ~ 45mm
-
Spindle speed:
-
Max. 12000rpm
-
Bobbin length:
-
205mm
-
Twist direction:
-
Z or S, settable
Product Description

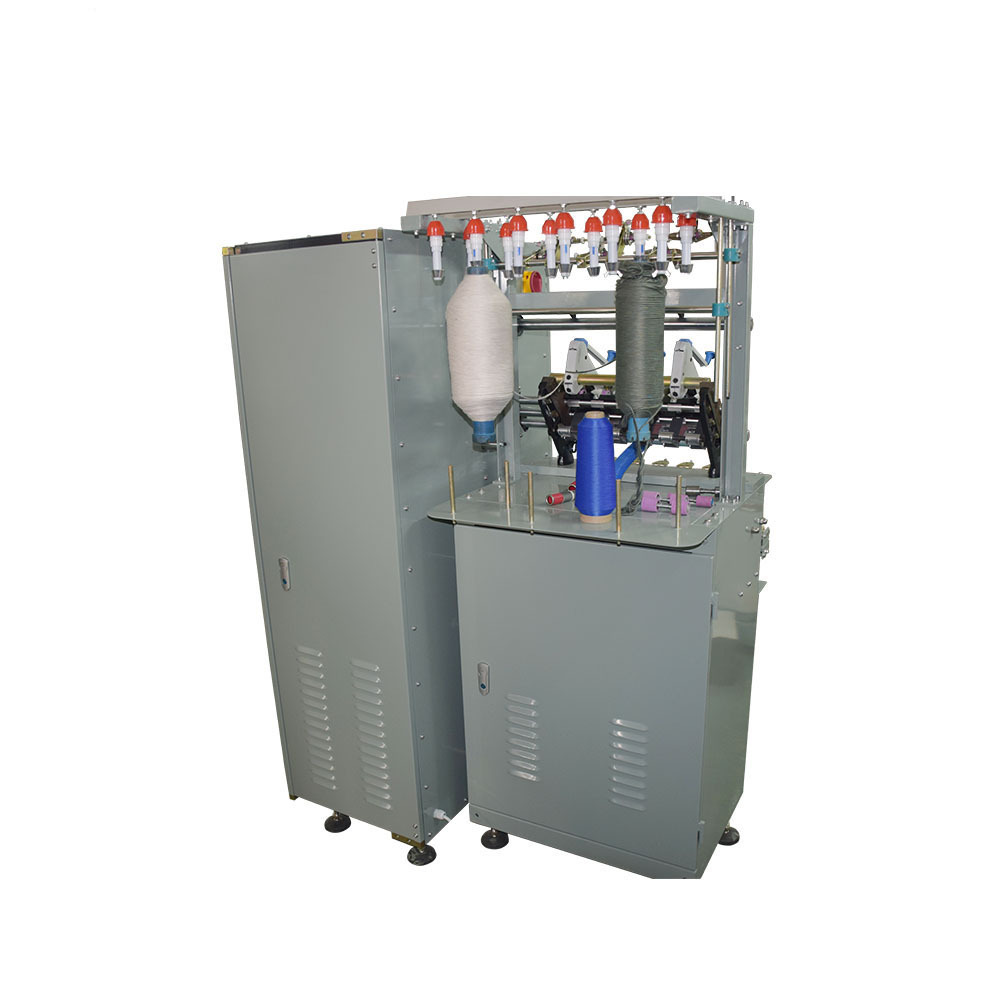

AT206 Laboratory Ring Spinning Machine
is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.
Specification
|
Model
|
AT206
|
|
Number of spindles
|
6
|
|
Fiber type
|
Cotton or cotton-type chemical fibers
Customized for wool
|
|
Twist range
|
50~250twists/meter
|
|
Draft range
|
Approx. 2~50
|
|
Output capacity
|
0.25~0.5kg/h
|
|
Roller diameter
|
Φ25/25/25mm
|
|
Ring diameter
|
Φ38 ~ 45mm
|
|
Spindle speed
|
Max. 12000rpm
|
|
Bobbin length
|
205mm
|
|
Twist direction
|
Z or S, settable
|
|
Power supply
|
AC220V 50Hz, 550W
|
Details & Features
1. Mini machine, save researching cost and easy to operate and maintain;
1. Frequency converter of high efficiency to control roll speed;
2. Pressurizing system :spring pressure cradle;
3. Three-up-three-down drafting structure;
4.Optional special program for spinning slub yarn on this ring spinning machine;
Our Company
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
