Quick Details
-
Brand Name:
-
HYB
-
Dimension(L*W*H):
-
Variety
-
Weight:
-
4780 KG
-
Product name:
-
Impact Crusher Machine
-
Keyword:
-
Impact Crusher
-
The Machines Classification:
-
Mining Machinery
-
Color:
-
Customer Requirement
-
Processed Materials:
-
Ore Stone Mining
-
After sale Service:
-
Technology Support
-
Feed Opening:
-
30mm
-
Rotation Speed:
-
2258-2600r/min
-
Capacity:
-
24-60t/h
-
Power:
-
30-45kW
Quick Details
-
Application:
-
Stone Ore Mining
-
Capacity(t/h):
-
24-60t/h
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HYB
-
Dimension(L*W*H):
-
Variety
-
Weight:
-
4780 KG
-
Product name:
-
Impact Crusher Machine
-
Keyword:
-
Impact Crusher
-
The Machines Classification:
-
Mining Machinery
-
Color:
-
Customer Requirement
-
Processed Materials:
-
Ore Stone Mining
-
After sale Service:
-
Technology Support
-
Feed Opening:
-
30mm
-
Rotation Speed:
-
2258-2600r/min
-
Capacity:
-
24-60t/h
-
Power:
-
30-45kW
Product Introduction
VSI Crusher Features:
1. Advanced double pump oil lubrication system minimize the maintenance frequency
2. High precision roller bearing, smooth main unit running, and long service time
3. Hydraulic lift cap, easy and convenient replacement and maintenance
4. Over vibration alarm system
5. Special dustproof seal system, outside powder is prevented from entering oil mouth
6. Unique feeding method (change between central feeding and central feeding with cascade feeding make "rock on rock" and 'rock on iron"possible, both crushing and shaping are achieved.
7. Particular material throw head design and reasonable material selection prolong the service time.
Brief Introduction of VSI Crusher:
Vertical Shaft Impact Crusher is the most advanced impact crusher in modern world. Hydraulic system used in upper cap, it is easy and convenient to maintenance and replace spare parts. The feeding is our sole patent that using central feeding and central feeding with cascade feeding, the feeding method can change as per needed so as to satisfy customer's different request.
VSI Crusher Working Principle:
Vertical Shaft Impact Crusher works as below: The materials enter the crusher through feeder hopper, which is divided into two parts, one part entering into the rotating through the middle of distributor impeller at high speed, then is accelerated, and shot through the tunnels around the impeller by the speed of 60-75 meter/second. First the materials will impact with some materials fallen around distributor, hit on the crushing chamber together, then will be rebounded and impact on the top of the crushing chamber, changes its direction and goes down, forms continual material layers with the materials shot from the impeller. Therefore some materials will be impacted, crushed, milled twice or more times in the crushing chamber, then crushed materials will be discharged through the bottom. This can form a closed circulation system; In general, the sand forming percentage increases 20-30% and the product shape is good. Airflow self-circulation in the crushing chamber can eliminate the dust pollution well. It is the first choice in manufacturing sand and its shape correction industries.
|
Model
|
|
VSI-550
|
VSI-700
|
VSI-850
|
VSI-1000
|
VSI-1200
|
|||||
|
Capacity (t/h)
|
Cascade and Central Feeding
|
24-60
|
55-120
|
113-380
|
200-380
|
300-715
|
|||||
|
|
Central Feeding
|
60-90
|
100-130
|
150-190
|
225-260
|
300-400
|
|||||
|
Max Feeding dimension (mm)
|
Soft Material
|
< 35
|
< 40
|
< 45
|
< 50
|
< 50
|
|||||
|
|
Hard Material
|
< 30
|
< 35
|
< 50
|
< 60
|
< 60
|
|||||
|
Rotation Speed(r/min)
|
|
2258-2600
|
1775-2050
|
1460-1720
|
1240-1460
|
1246
|
|||||
|
Double Motor Power (kw)
|
|
30-45
|
55-110
|
150-264
|
320-500
|
500-630
|
|||||
|
Weight(t)
|
|
4.8
|
7.5
|
11.7
|
17.5
|
20.2
|
|||||
|
Power
|
|
380v; 50Hz
|
|
|
|
|
|||||
|
Vibration Sensor
|
|
Inspection range: 0.1-20mm/s continual adjustment
|
|
|
|
|
|||||
|
Lubrication System
|
Double Pump Motor Power
|
2x0.31KW
|
|
|
|
|
|||||
|
|
Safety
|
Altemative double pump oil supply;
machine stops automatically
without oil flow or oil pressure. water cooling, motor warm start i
n winter.
|
|
|
|
|
|||||
|
|
Overall Dimension (LxWxH)(mm)
|
820x520x1270
|
|
|
|
|
|||||
|
|
Gasoline Tank Heating Power (kw)
|
2
|
|
|
|
|
|||||

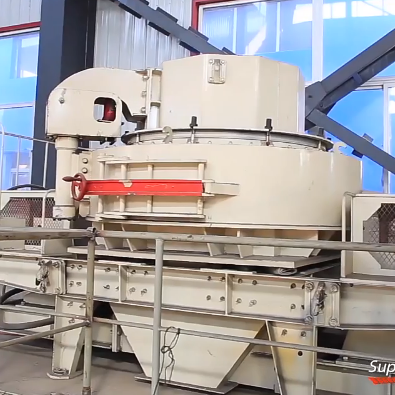

Detailed Image
