Quick Details
-
Travel (W-axis) (mm):
-
300 mm
-
Place of Origin:
-
Shanghai, China
-
Max. Length of Cylinder Head:
-
Ultimated
Quick Details
-
Table Travel (X) (mm):
-
1000 mm
-
Table Travel (Y) (mm):
-
500 mm
-
Table Travel (Z) (mm):
-
450 mm
-
Travel (W-axis) (mm):
-
300 mm
-
Place of Origin:
-
Shanghai, China
-
Max. Length of Cylinder Head:
-
Ultimated

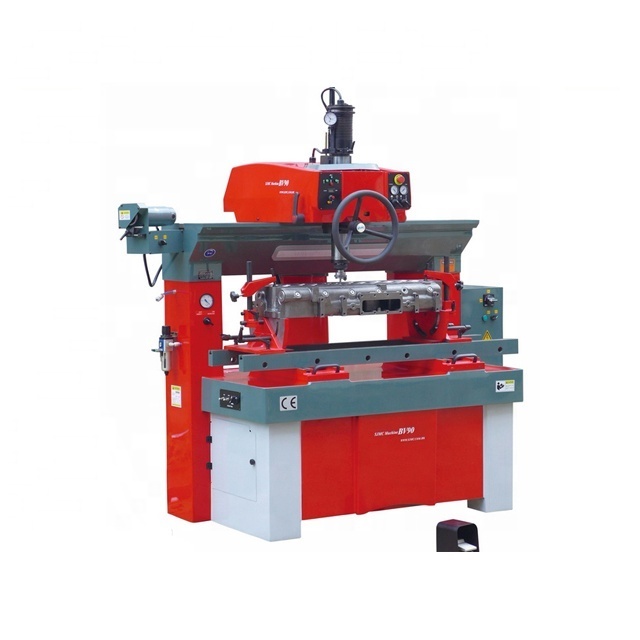

Valve seats boring machine Valve seats cutting machine DBS-BV90
Features :
Valve Seat Boring Machine Model: DBS-BV90 with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats. Triple air-float patented centering system and powerful spindle with built-in motor. Designed for the valve seats from the smallest to the bigger diameter. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 18mm to 90mm.To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Main Specifications
| Model | DBS-BV90 |
| Type of Drive System | Air / Electric |
| Max. Length of Cylinder Head | unlimited |
| Max. Width of Cylinder Head | 500 mm |
| Max. Height of Cylinder Head | 450 mm |
| Max. Boring Dia. | 18 - 90 mm |
| Work Head Longitudinal Floating Travel | 990 mm |
| Work Head Cross Floating Travel | 40 mm |
| Sphere - Cylinder Travel | 9 mm |
| Floating inclination angle of Spindle | 5° |
| Table Travel | 160 mm |
| Vertical Travel of Spindle | 200 mm |
| Power of Spindle | 1.5 kW Spindle Motor |
| Max. Torque of Spindle Motor | 23 Nm |
| Spindle Speed | 100 - 1200 rpm stepless |
| Power of Tools Grinder | 0.18 kW |
| Tools Grinder Rotation Speed | 2800 rpm |
| Clamper Rotary Angle | + 42°/ -15° |
| Required Rated Air Pressure | 6 Bar / 85 PSI |
| Required Max. Air Flow | 400 L / Min |
| Required Continuous Air Flow | 60 L / Min |
| Length of Machine | 1685 mm |
| Width of Machine | 1050 mm |
| Max. Height of Machine | 2180 mm |
| Min. Height of Machine | 1980 mm |
| Roughness of Finishing | Ra 0.6 |
| Package Size ( L×D×H ) | 1860×1150×2200 mm |
| N.W. | 1500 Kg |
| G.W. | 1800 Kg |
WHY CHOOSE BLUESTAR BRAND MACHINE TOOLS:
1) High quality with competitive price
2) More than 10 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (SKYPE,Trademanager)
6) 12 months quality warranty
