Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
China
-
Brand Name:
-
ZUNSUN
-
Voltage:
-
110/220V, 50Hz/60Hz
-
Dimensions(L*W*H):
-
1030*780*450mm
-
Weight:
-
70 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-

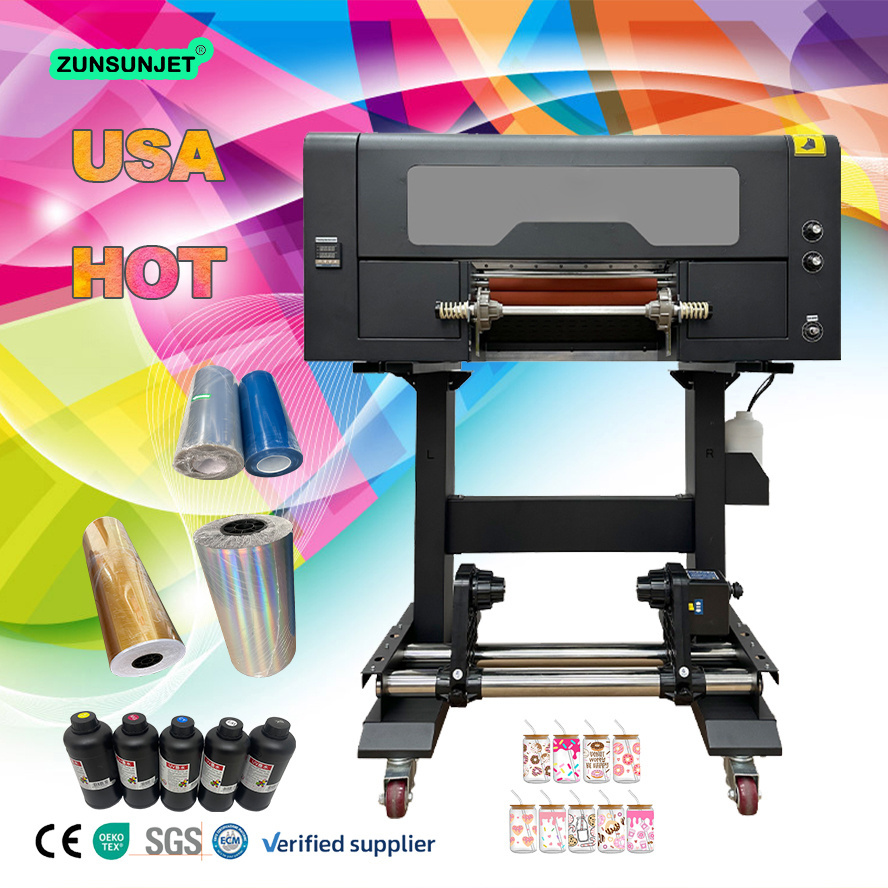

ZUNSUN uv dtf label printer
-
Key words:
-
A3 2 in 1 UV DTF Printer
-
Color:
-
CMYK+W+V
-
Resolution:
-
720dpi/1080dpi/1440dpi
-
printing speed:
-
max 3.0m2/h
-
Type of ink:
-
eco-solvent ink/UV ink
-
software:
-
MainTop/Photo Print/RIPrint
-
Packing Size/Weight:
-
1130*880*600mm/80KG
-
Heating Method:
-
Rubber roller heating
-
Automatic Receiving System:
-
yes
Quick Details
-
Print Dimension:
-
300mm, 320mm, A3
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
China
-
Brand Name:
-
ZUNSUN
-
Voltage:
-
110/220V, 50Hz/60Hz
-
Dimensions(L*W*H):
-
1030*780*450mm
-
Weight:
-
70 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
ZUNSUN uv dtf label printer
-
Key words:
-
A3 2 in 1 UV DTF Printer
-
Color:
-
CMYK+W+V
-
Resolution:
-
720dpi/1080dpi/1440dpi
-
printing speed:
-
max 3.0m2/h
-
Type of ink:
-
eco-solvent ink/UV ink
-
software:
-
MainTop/Photo Print/RIPrint
-
Packing Size/Weight:
-
1130*880*600mm/80KG
-
Heating Method:
-
Rubber roller heating
-
Automatic Receiving System:
-
yes
ZUNSUN 2022 2-3 heads XP600/TX800 a3 uv dtf film cold transfer sticker uv dtf printer
Product Description
UV STICKER DTF PRINTER
No need laminators, realize the liberation of hands, improving work efficiency.Break the limits of printing products height, shape and size for flatbed printer !!!!!
Advantages:
1. 2-in-1 UV sticker DTF Printer - Traditional UV printing procedure includes printing and then laminating, but this machine
allows these two processes to realize at the same time.
2. Support common color printing and golden foil sticker printing.
3. Bright color and high definition, unlimited material, unlimited size, unlimited shape, low cost, convenient positioning, high efficiency printing.
4. Easy to use, already achieve full automation.
allows these two processes to realize at the same time.
2. Support common color printing and golden foil sticker printing.
3. Bright color and high definition, unlimited material, unlimited size, unlimited shape, low cost, convenient positioning, high efficiency printing.
4. Easy to use, already achieve full automation.
zunsun 2 in 1 UV Sticker DTF printer A3 takes printing technology to a new height, which is the first one to integrate the laminating process into the printing process. Shapes, sizes and uneven surfaces are no longer limitations of printing in front of this product.
Product Paramenters
|
Type
|
2 in 1 UV DTF Printer
|
|
Printhead
|
2-3
|
|
Color
|
CMYK+W+V
|
|
Printing accuracy
|
720dpi / 1080dpi /1440dpi
|
|
Heating method
|
Rubber roller heating
|
|
Automatic Laminating System
|
Yes
|
|
Print head cleaning
|
Automatic
|
|
Ink Type
|
UV Ink /eco-solvent ink
|
|
Printing Size
|
≤320mm
|
|
Print head
|
XP600 / TX800
|
|
RIP software
|
Maintop/Photoprint/Ripint
|
|
Operating system
|
Windows XP / Windows 7
|
|
Rated power
|
500W
|
|
Printing speed
|
•XP600（TX800）-2 heads •XP600（TX800）-3 heads
•6pass 1.5㎡/h •6pass 3㎡/h
•8pass 1㎡/h •8pass 2㎡/h
•12pass 0.5㎡/h •12pass 1㎡/h
|
|
Working environment
|
15-30℃
|
|
Relative humidity
|
40-60%
|
|
Voltage
|
110-220V/50-60HZ
|
|
Machine size/weight
|
L1030*W780*H450mm/70kg
|
|
Package size/weight
|
L1130*W880*H600mm/80kg
|
Details Images
HOSON BOARD
The industry's high-end boardsystem has good stability, low failurerate and durability
SERVO MOTOR
High-quality servo industrial motordrive system ensures the accuracyand stability of equipment printing
ALUMINUM ALLOY
INK STACK
Lifting aluminum alloy ink stackintelligent automatic cleaning andmaintenance of the print head
ALUMINUM ALLOY FRAME
Aluminum alloy thickened one-piecelifting trolley frame, the trolley canbe lifted and lowered as a whole,which is convenient to use.
HIWIN SILENT RAIL
lmported hiwin silent linear guiderails are used to ensure high-preci-sion and stable operation of theequipment and a longer service life
VACUUM ADSORPTION PLATFORM
The mesh-belt adsorption platformhas wider printing materials andmore accurate printing accuracy
Applications
1. any shape: flat, cylindrical, cambered, rhombic and other irregular shape.
2. most material: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.such as pen, notebook, phone case, mouse, vase, bottle, can, mug, packing box, purse, pad, USB flash disk, electric appliance,
suitcase, key ring and other different size products.
*The machine supports varnish printing, covering on the pattern, the visual effect is better, also wear and scratch resistance.
2. most material: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.such as pen, notebook, phone case, mouse, vase, bottle, can, mug, packing box, purse, pad, USB flash disk, electric appliance,
suitcase, key ring and other different size products.
*The machine supports varnish printing, covering on the pattern, the visual effect is better, also wear and scratch resistance.
There are more possibilities we can explore together, send us an inquiry please if you want to get free samples for checking~
