2000W Hub motor, 60v 20ah lithium battery
with on road tire suitable for flat road, urban road, commen high ways
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MAXMOV
-
Model Number:
-
MAX
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
MAX 2000/3000W
-
Certification:
-
EEC/COC
-
Battery capacity:
-
60v 20ah lithium
-
Motor Power:
-
2000-3000W
-
Top speed:
-
45-58KM/H
-
Brake system:
-
Hydrualic brake
-
Range:
-
40-60KM
-
Tire Size:
-
145/70-6
-
Color:
-
Black
Quick Details
-
Motorcycle Type:
-
Off-Road Motorcycles
-
Max. Speed:
-
40 - 60km/h
-
Voltage:
-
60V
-
Brand Name:
-
MAXMOV
-
Model Number:
-
MAX
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
MAX 2000/3000W
-
Certification:
-
EEC/COC
-
Battery capacity:
-
60v 20ah lithium
-
Motor Power:
-
2000-3000W
-
Top speed:
-
45-58KM/H
-
Brake system:
-
Hydrualic brake
-
Range:
-
40-60KM
-
Tire Size:
-
145/70-6
-
Color:
-
Black
Product Description

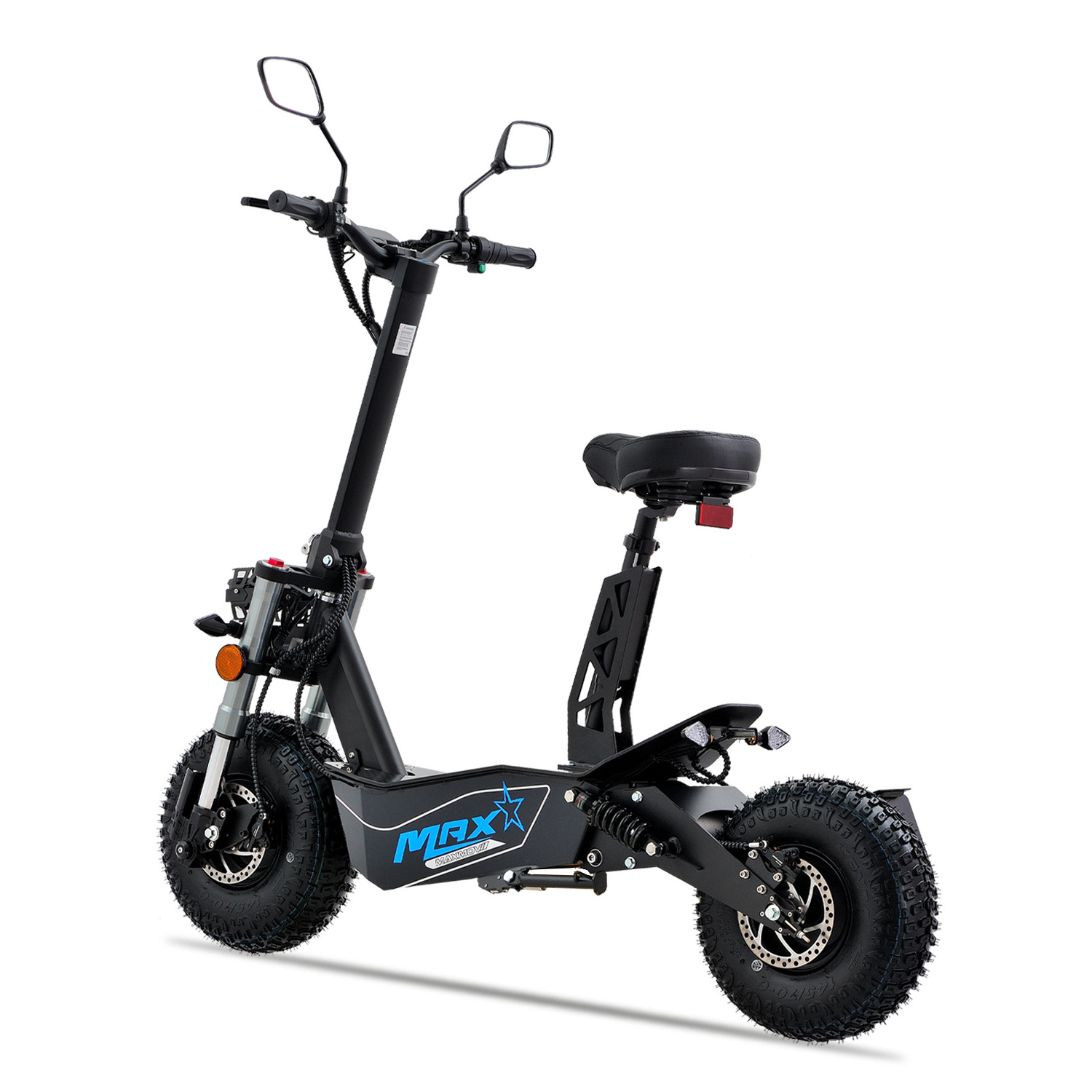

MAX EEC 2000W/3000W ELECTRIC SCOOTERS
Chain drive motor & off-road tire
3000w Brushless motor have more power.
145/70-6 KENDA off-road Tire suitable for a
ll terrian
Hub motor & on road tire
2000w Hub motor is more popular in the market.
130/50-8 WD On Road Tire
Double sport style headlights
1.
Double sport style headlights with t
ransformer lampshade.
2.
Front turn lights signal
3.
More safer with yellow and red reflector for night.
Single city style headlights
1. Single city style headlights more b
righter
2. Front turn lights signal
3. More safer with yellow and red reflector for night.
3. More safer with yellow and red reflector for night.
Mini LED taillight & New motorcycle taillight
The new photosensitive headlamps include Low beam lamps and Daytime running lamp, which have automatic light sensing function. The
Daytime running lamp is turned on in a bright environment, and the Low beam is automatically turned on in a dim environment.
Daytime running lamp is turned on in a bright environment, and the Low beam is automatically turned on in a dim environment.
Single city style headlights
The new photosensitive headlamps include Low beam lamps and Daytime running lamp, which have automatic light sensing function. The Daytime running lamp is turned on in a bright environment, and the Low beam is automatically turned on in a dim environment.
Hydraulic suspension and hydraulic brake system
1. CNC manufacturing process upper and lower clamper for front fork.
2. Front double up-side down hydraulic suspensions.
3.
Oil-Hydraulic Brake with 16MM Disc can be used by spot brake to stop the scooter brake quickly and in short distance.
Hydraulic suspension and hydraulic brake system
1. CNC manufacturing process upper and lower clamper for front fork.
2. Front double up-side down hydraulic suspensions.
3. Oil-Hydraulic Brake with 16MM Disc can be used by spot brake to stop the scooter brake quickly and in short distance.
3. Oil-Hydraulic Brake with 16MM Disc can be used by spot brake to stop the scooter brake quickly and in short distance.
Rear double hydraulic spring shocks
The shock could be customize the colors, basic color is black.
Rear double alloy case spring shocks
The shock could be customize the colors, basic color is black.
Saddle
The large-sized seat cushion features a diamond pattern and a red rear reflector for both comfort and safety during riding
The detachable seat cushion rod is equipped with a height adjustment rod of 31.8MM and a 150MM adjustment range.
Saddle post & Foldable
The foldable steering reduces the overall height of the vehicle, making it easier for transportation or storage.
Multi-function Operation Bar
1. Smart multi-function button for switch SPORT/ECO mode,Horn and Turnlights.
2. READY function button and Acceleration bar on the right, three safe steps to start your scooter：
①
Turn on ignition key;
②
Raise up footleg;
③
Press the READY button until the green READY symbol appears on the display screen; 4, Speed up your scooter by accelerator.
Multi-function sport type LCD display
Multi-function sport type LCD display: TRIP/ODO/SPORT/ECO/SPEED/CAPACITY/READY/TURNLIGHTS/HEADLIGHT.
|
Product Specification
|
|
|
|
|
||||
|
Model
|
MAX EEC 3000W with all terrian tires
|
|
MAX EEC 2000W with on road tire
|
|
||||
|
Motor Power
|
3000W Brushless Motor
|
|
2000W Hub Motor
|
|
||||
|
Battery
|
60V 20AH Lithium battery
|
|
60V 20AH Lithium battery
|
|
||||
|
Drive Model
|
Chain Drive
|
|
Rear Wheel Drive
|
|
||||
|
Tire Size
|
145/70-6 KENDA All Terrian Tire
|
|
130/50-8 WD On Road Tire
|
|
||||
|
Max Speed
|
45km/h
|
|
|
|
||||
|
Controller
|
MOS-15: 40A
|
|
MOS-15: 38A
|
|
||||
|
Rotation Speed
|
628RPM
|
|
702RPM
|
|
||||
|
Torque
|
45Nm
|
|
27Nm
|
|
||||
|
Battery Type
|
60V 20Ah Lithium 18650 (N.W: 8kg)
|
|
|
|
||||
|
Charger
|
67.2V 2A
|
|
|
|
||||
|
Drive Range
|
45km at max speed
|
|
|
|
||||
|
Max Loading
|
120kg
|
|
|
|
||||
|
Wheelbase
|
1050mm
|
|
|
|
||||
|
Ground Clearance
|
120mm
|
|
|
|
||||
|
Frame Material
|
High-tensil Steel Tube
|
|
|
|
||||
|
Front Absorber
|
Motorcycle Hydraulic Up-side Down Damping Shocks
|
|
|
|
||||
|
Brake System
|
Front and Rear Oil-Hydraulic Disc Brake
|
|
|
|
||||
|
Foot Pedal
|
Aluminum Deck
|
|
|
|
||||
|
Rear Absorber
|
Hydraulic Damping Spring Shocks
|
|
Alloy Case Spring Shocks
|
|
||||
|
Headlight
|
Double LED Low-beam
|
|
Single photosensitive LED lights
|
|
||||
|
Taillight
|
LED
|
58KM
|
|
58KM
|
||||
|
Turnlights
|
YES
|
45KM/H
|
|
45KM/H
|
||||
|
Horn
|
YES
|
|
|
|
||||
|
Mirror
|
YES
|
|
|
|
||||
|
Reflector
|
YES
|
|
|
|
||||
|
Start Mode
|
Ignition Key
|
|
|
|
||||
|
Speedometer
|
Sport-style LCD display
|
|
|
|
||||
|
Net Weight
|
57kg (including the battery)
|
|
|
|
||||
|
Dimension(LxWxH)
|
1430 x 650 x 1410mm
|
|
|
|
||||
|
Package Size(LxWxH)
|
1450 x 335 x 670mm
|
|
|
|
||||
|
Qty 20ft/40ft/40hq
|
84units / 168units / 224units
|
|
|
|
||||
|
Standard Color
|
Black, Customize
|
|
|
|
||||
Certifications
Packing&Shipping
Our Company
KLAN is a top-class professional scooter manufacturer located in Jinhua, Zhejiang, was qualified by ISO9001 and BSCI.
We have our own brand, named MAXMOV. Most of our scooters have EEC/COC/CE certification for EU market, DOT certification for USA is available as well.
Our charger have CE, GS, ETL, FCC, UL, SAA and KC certification etc.
With the max support of our strong professional R&D and management team, OEM & ODM services can be both satisfied to differentcustomer's requirements.
Normally 5-10 new or improved items will be come into the market every year.
