Quick Details
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
31000
-
Drive Wheel:
-
8X4
-
Brand Name:
-
SHACMAN F3000
-
Model Number:
-
SX3314DR366
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
10100x2490x3450
-
Color:
-
Red,white,yellow or other
-
Cab:
-
Flat roof or high roof
-
Contact person:
-
Mr.Lisbon Lee
-
Mobile:
-
0086 15826750255
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
31000
-
Drive Wheel:
-
8X4
-
Brand Name:
-
SHACMAN F3000
-
Model Number:
-
SX3314DR366
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
10100x2490x3450
-
Color:
-
Red,white,yellow or other
-
Cab:
-
Flat roof or high roof
-
Contact person:
-
Mr.Lisbon Lee
-
Mobile:
-
0086 15826750255

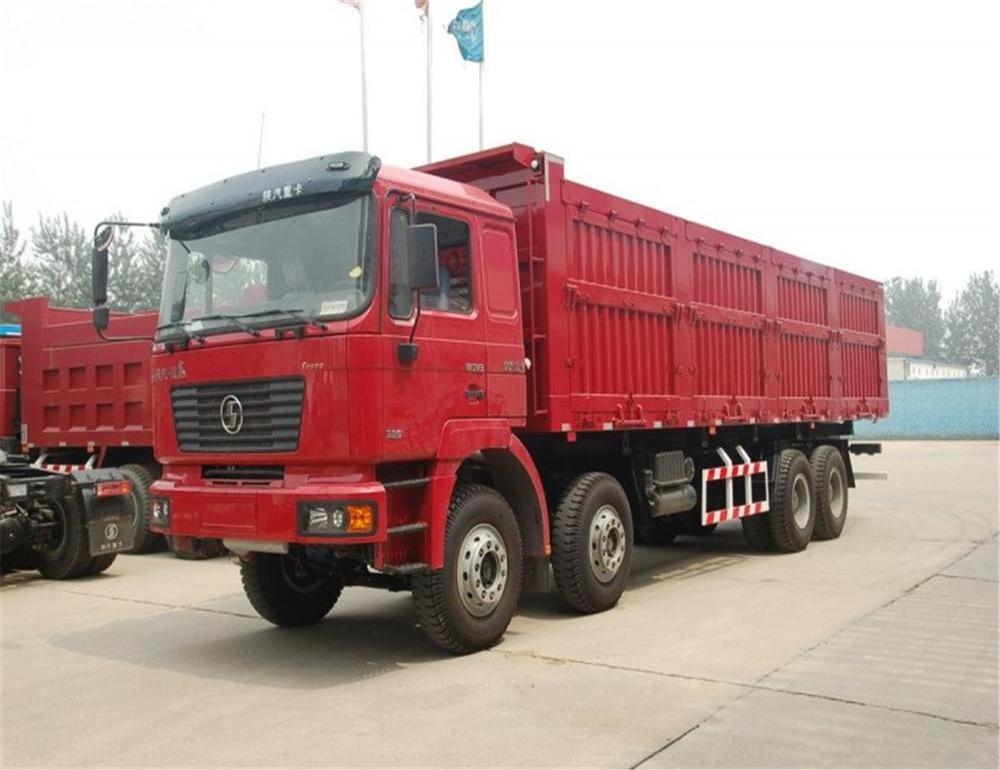

1.Engine:Weichai WD12.336
2.Transmission: FAST
3.Rear axle: MAN 16ton
4.Steering: ZF
5.Hydraulic cylinder dump truck
|
Model |
SX3314DR366 |
|
Make |
SHACMAN |
|
Drive type |
8×4 |
|
Application |
Dump truck |
|
Weight |
|
|
Complete kerb mass (kg) |
15300 |
|
GVW (kg) |
45000 |
|
Load Mass(kg) |
29700 |
|
Dimensions |
|
|
Max.length(mm) |
10100 |
|
Max.width(mm) |
2490 |
|
Max.heigh(mm) |
3450 |
|
Front / Rear overhang (mm) |
1525/1825 |
|
Wheel base(mm) |
1800+3600+1350 |
|
Track width(mm) |
2036/1850 |
|
Performance |
|
|
Max.speed (km/h) |
80 |
|
Min.turning circle(m) |
24 |
|
Min.ground clearance(mm) |
314 |
|
Approach / Departure angle (°) |
22/33 |
|
Max.gradeability(%) |
32 |
|
Engine |
|
|
Make |
Weichai Power |
|
Model |
WD12.336 |
|
Power(kw/HP) |
247/336 |
|
Max.Torque (N.m )/rpm |
1350/2200 |
|
Displacement (L) |
11.596 |
|
Emission Standards |
Euro 2 |
|
Transmission |
|
|
Make |
FAST |
|
Model |
12JS160T |
|
Control type |
manual |
|
Gear Shift |
12-forward and 2 reverse speeds |
|
Clutch |
|
|
Type |
Spring plate, diaphragm spring |
|
Diameter (mm) |
φ430 |
|
Action |
mechanical pull type, self adjusting Air assisted clutch |
|
Brakes |
|
|
Type |
Drum |
|
Service brake |
With dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting
|
|
Auxiliary brake |
WEVB |
|
Steering |
|
|
Make |
ZF Technology |
|
Type |
Integral inner circulation
|
|
Chassis |
|
|
Type |
Ladder structure with
|
|
Dimensions (mm) |
300×80×(8+7) |
|
Suspension |
|
|
Front Suspension |
semi-elliptic springs with shock absorbers |
|
Rear Suspension |
inverted leaf spring stabilizator suspension |
|
Axles |
|
|
Make |
SHAAN'XI HANDE |
|
Front axle |
6500kg+6500kg |
|
Rear axle |
16000kg+16000kg |
|
Tires |
|
|
Type (Standard) |
11.00R20, 13 pieces |
|
Fuel tank |
|
|
Tank capacity (L) |
380 |
|
Material |
Metal |
|
Electrics |
|
|
Type |
24V |
|
Starter |
6.2kw(24V) |
|
Generator |
2.2kw(28V 80A) |
|
Battery |
2×135Ah |
|
Cab |
|
|
Type |
MAN D'LONG F3000, Mid-lengthened flat roof, one sleeping bed, with manual control A/C |
|
Cargo Box |
|
|
Platform dimensions(mm) |
7200×2300×1500, front lifting, HYVA φ169,flat 8mm,side 6mm |
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
