Quick Details
-
Place of Origin:
-
Zhejiang
-
Voltage:
-
220V/ 380V/460V
-
Weight (T):
-
240 T
-
Model Number:
-
10000T
-
Motor Power (kw):
-
100 kw
-

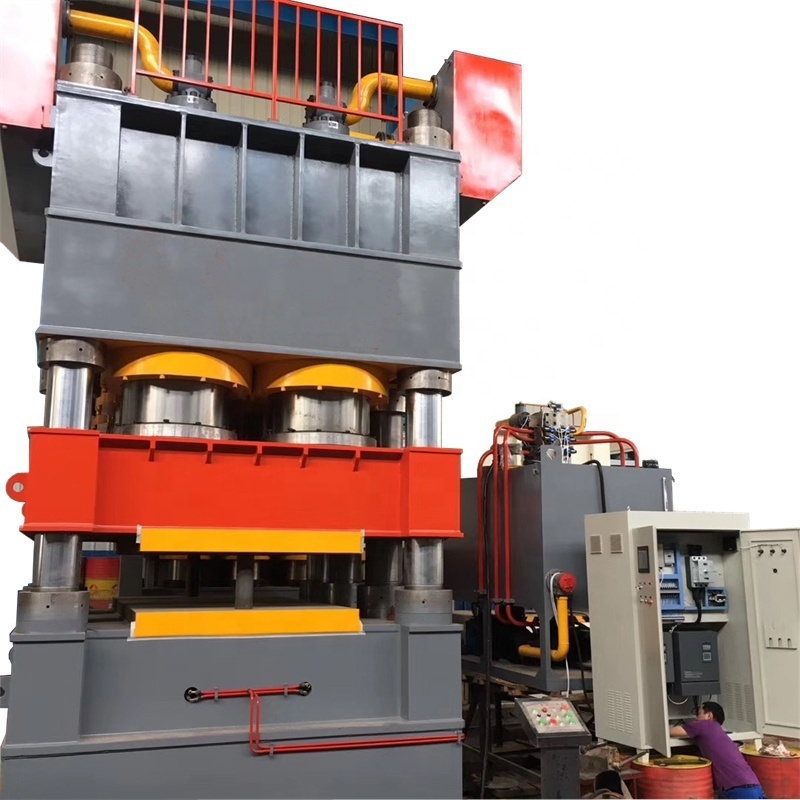

Product Name:
-
Steel Door Press Machine
-
Capacity:
-
10000T
-
Structure:
-
Eight Column Three Beam
-
Stroke:
-
600mm
-
Max. Opening Height:
-
700mm
-
Workingtable Size:
-
3200*1800mm
-
Power Source:
-
220V/380V/460V
-
Usage:
-
Embossing Steel Door Skin
-
Motor Power:
-
100 KW
-
Application:
-
Door Factory
Quick Details
-
Machine Type:
-
Eight-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
600mm
-
Return Force (kN):
-
1625 kN
-
Place of Origin:
-
Zhejiang
-
Voltage:
-
220V/ 380V/460V
-
Weight (T):
-
240 T
-
Model Number:
-
10000T
-
Motor Power (kw):
-
100 kw
-
Product Name:
-
Steel Door Press Machine
-
Capacity:
-
10000T
-
Structure:
-
Eight Column Three Beam
-
Stroke:
-
600mm
-
Max. Opening Height:
-
700mm
-
Workingtable Size:
-
3200*1800mm
-
Power Source:
-
220V/380V/460V
-
Usage:
-
Embossing Steel Door Skin
-
Motor Power:
-
100 KW
-
Application:
-
Door Factory
Ø Three beams are welded by high quality steel plates.
Ø Oil cylinder block s are made of #35 forge piece.
Ø Oil cylinders ' plunger piston s are made of chilled cast iron, surface hardness: above HRC45.
Ø Eight columns are made of #45 steel, quenched and tempered to HBS255-275, surface hardness after hard chrome plating: above HRC55.
Ø Guide sleeve: H59 brass bush, 8 pieces in total.
Ø Hydraulic system adopts cartridge valve: simple structure, reliable without leakage, able to meet the need of high pressure and large flow . The system has good heat dissipation performance , can reduce reactive power loss to the lowest.
| Product Name |
10000T Aluminium Door Embossing Machine Luxury Door Patterns |
| Fabricating Sheet Material | Cold Steel, Galvanized Steel, Aluminium |
| Fabricating Sheet Thickness | 1.0mm-2mm |
| Nominal Force | 120000KN |
| Return Force | 1625KN |
| Slider Stroke | 600mm |
| Max. Opening Height | 700mm |
| Workingtable Size |
32 00×1 8 00mm |
| Motor Power |
50+5 0 = 100 KW |
| Main Plunger-type Cylinder | ZSG Φ100 0mm × 6 00 mm(stroke) × 6pcs |
| Column Diameter |
Φ420 mm × 4pcs + Φ350 mm × 4pcs |
| Safety Light Curtain |
1 set |
| Water Cooling Device |
1 set |
| Hydraulic Cartridge Valve |
Shandong Taifeng |
| Oil Pump |
HIGH-TECH |
| Servo Motor |
Welling |
| Pressure Sensor |
GEFRAN |
| Main Electrics |
OMRON |
| PLC |
Mitsubishi |
| Touch Screen |
Delta |
