Quick Details
-
Core Components:
-
Steel body
-
Color:
-
Red or as requested
-
Connection:
-
Oil drill pipe connector thread
-
Local Service Location:
-
None
-
Certification:
-
API
-
Product name:
-
Cement head
-
MOQ:
-
1 Set
-
Type:
-
Double single
-
Size:
-
Standrad Size
-
Usage:
-
Cementing
-
Standard:
-
API 5 CT
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
30
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
Steel body
-
Color:
-
Red or as requested
-
Connection:
-
Oil drill pipe connector thread
-
Local Service Location:
-
None
-
Certification:
-
API
-
Product name:
-
Cement head
-
MOQ:
-
1 Set
-
Type:
-
Double single
-
Size:
-
Standrad Size
-
Usage:
-
Cementing
-
Standard:
-
API 5 CT
Product Description

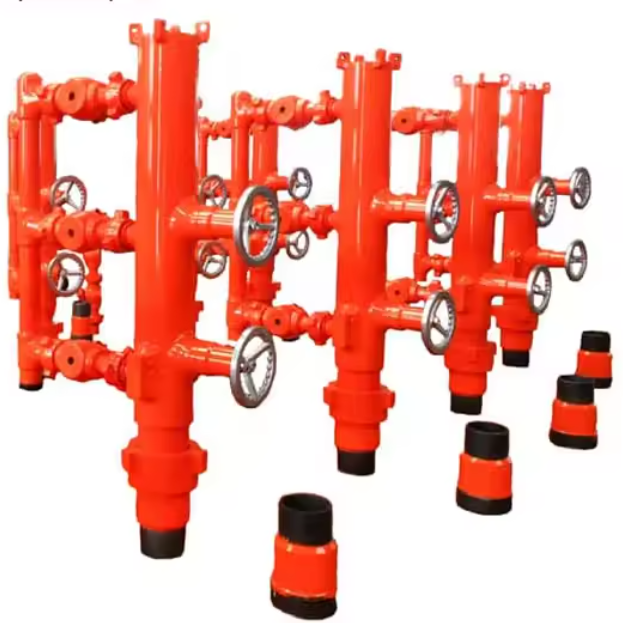

Cement head is a device fitted to the top joint of a casing string to hold a cement plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer of cement slurry. The top plug is released form the cement head after the spacer fluid. Most cement heads can hold both the top and bottom plugs. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.
Specification
|
Specifications, (in)
|
5½"
|
6 5/8"
|
7"
|
7 5/8"
|
9 5/8"
|
10¾"
|
13 3/8"
|
||||||
|
Overall Length, mm
|
1460
|
1500
|
1500
|
1550
|
1750
|
1750
|
1780
|
||||||
|
Manifold
|
2"Union
|
|
|
|
|
|
|
||||||
|
I.D. of Plug Container, mm
|
Φ125
|
Φ150
|
Φ160
|
Φ175
|
Φ225
|
Φ250
|
Φ320
|
||||||
|
Length of Plug Container, mm
|
400
|
450
|
450
|
450
|
550
|
550
|
600
|
||||||
|
Working Pressure, MPa
|
35,50
|
35,50
|
35,50
|
35,50
|
35,50
|
35
|
35
|
||||||
