Quick Details
-
Power:
-
29kw
-
Dimension(L*W*H):
-
2050*725*1460mm
-
name:
-
Shot blasting machine
-
Model:
-
YG-550
-
Max.cleaning wedth:
-
550mm
-
Cleaning efficiency:
-
80m²/h (on steel plate); 600m²/h (on concrete floor)
-
Blasting head:
-
2pcs
-
Motor Power:
-
29kw
-
Walking method:
-
(0.75kw)electric driving
-
Walking speed:
-
0.5-35m/min
-
Blasting wheel diameter:
-
200mm
-
Steel ball consumption:
-
10g/m²
Quick Details
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
YG
-
Weight (KG):
-
600 KG
-
Power:
-
29kw
-
Dimension(L*W*H):
-
2050*725*1460mm
-
name:
-
Shot blasting machine
-
Model:
-
YG-550
-
Max.cleaning wedth:
-
550mm
-
Cleaning efficiency:
-
80m²/h (on steel plate); 600m²/h (on concrete floor)
-
Blasting head:
-
2pcs
-
Motor Power:
-
29kw
-
Walking method:
-
(0.75kw)electric driving
-
Walking speed:
-
0.5-35m/min
-
Blasting wheel diameter:
-
200mm
-
Steel ball consumption:
-
10g/m²

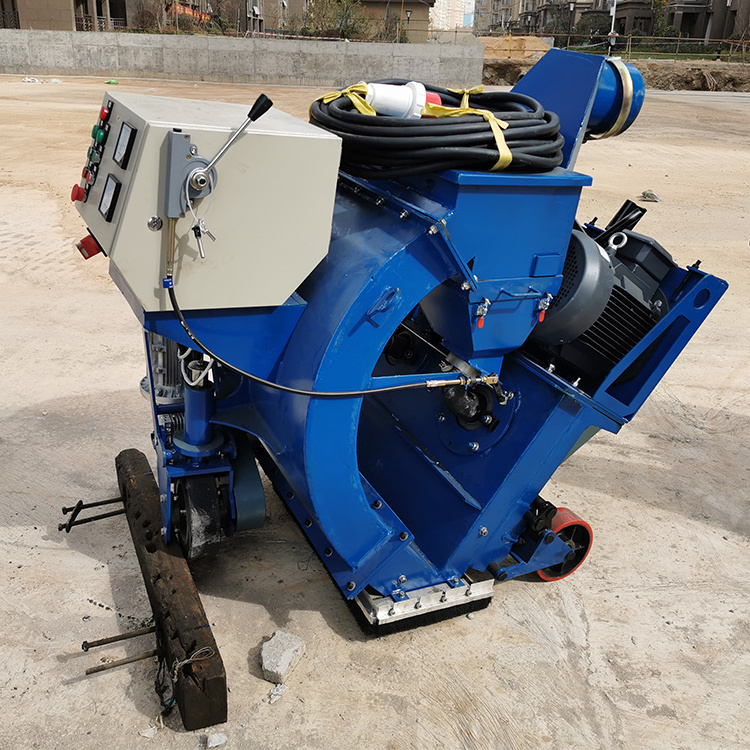

Automatic shot blaster floor shot blaster concrete shot blaster for sale
Concrete shot blasting machine can be used to clean up and impurity of concrete surface and impurity. At the same time roughening process for the concrete surface, make its surface form uniformity rough surface, greatly improving the waterproof layer and compressive strength of concrete base, can fully exposed concrete crack damage, in order to take remedial measures in advance.There is a impeller in concrete shot blasting machine, which can high-speed rotate. Abrasive, dust and impurities are cleared to the debris recovery machine. Steel balls can be recycled after cleaning.
After working, the concrete will be clean and hard, with uniform texture. It is especially suitable for barrier-free horizontal surfaces.
Parameter:
|
Model |
YG- 270 |
YG- 550 |
YG- 6 00 |
|
Total Power |
18kw |
29kw |
29kw |
|
Effective cleaning width |
250mm |
550mm |
600mm |
|
Productivity on concrete |
120m2/h |
300m2/h |
330m2/h |
|
Blasting wheel quantity |
One |
Two |
Two |
|
Traveling speed |
0.5 - 23 m/min |
0.5 - 3 5m/min |
0.5 - 3 5 m/min |
|
Dust collecting filter |
Blowback
|
Blowback
|
Blowback
|
|
Travel type |
Horizontal,
|
Horizontal,
|
Horizontal,
|
|
Overall dimension (mm) |
1600×432×1016 |
2050×72 5 ×1460 |
2050×72 5 ×1460 |
|
Weight |
335kg |
600 kg |
630kg |
Application area:
1.Industrial floor coating and processing
2.Mark line processing
3.The airport line cleaning
4.Steel plate and steel structure surface clean treatment and rust remove
5.Concrete bridge surface treatment
6.Road surface anti-skid treatment, bleeding treatment
7.The airfield runway surface friction coefficient and texture restoration
8.Bridge nursing
9.The highway project conservation
10.The hull surface maintenance rust removing
11.Storage tanks conservation remove rust and paint
12.Epoxy resin floor clean
1. Packaging:
1.2 Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
