Quick Details
-
Use:
-
Land leveling
-
Place of Origin:
-
Shandong, China
-
Working width:
-
2000-3500mm
-
Application:
-
Land leveling
-
Blade angle:
-
Adjustable by hydraulic cyliner
-
Efficiency:
-
1.1-2.3 hm² per hour
-
Max buried depth:
-
200mm
-
Working speed:
-
5-15 km/hour
-
Linkage type:
-
Tractor trailed
-
Tractor power required:
-
≥60HP
-
Control type:
-
Laser control
Quick Details
-
Weight (KG):
-
1280
-
Marketing Type:
-
Hot sale
-
Type:
-
Farm Equipment
-
Use:
-
Land leveling
-
Place of Origin:
-
Shandong, China
-
Working width:
-
2000-3500mm
-
Application:
-
Land leveling
-
Blade angle:
-
Adjustable by hydraulic cyliner
-
Efficiency:
-
1.1-2.3 hm² per hour
-
Max buried depth:
-
200mm
-
Working speed:
-
5-15 km/hour
-
Linkage type:
-
Tractor trailed
-
Tractor power required:
-
≥60HP
-
Control type:
-
Laser control

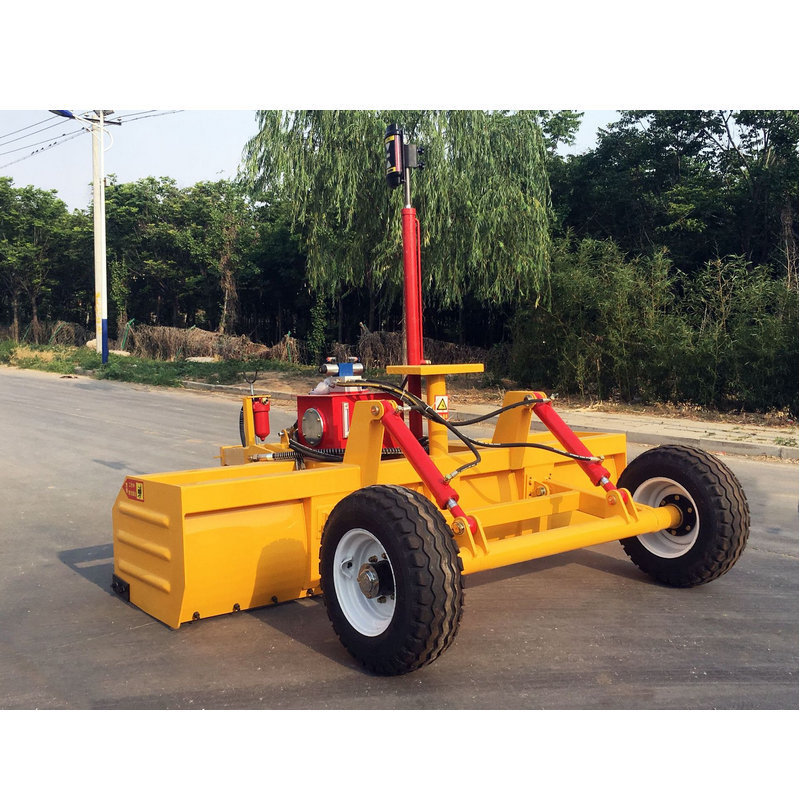

Agriculture equipment laser land leveling bucket scraper laser land leveling grader
The laser land leveler uses laser technology to level the land and farmland precis ely . The laser transmitter emits a rotating beam to form a light plane on the work site. This light plane is the reference plane for leveling the ground, and the light plane can be flat or inclined. The laser receiver is installed on the telescopic pole of the scraper. When the receiver detects the laser signal, it continuously sends signals to the control box. After the control box receives the signal, it makes corrections. The corrected signal controls the hydraulic valve to change the flow direction and flow rate of the hydraulic oil to the cylinder, and control the height of the scraper automatically .
|
Model |
Unit |
12PW-200 |
12PW-250 |
12PW-300 |
12PW-350 |
|
Working width |
mm |
2000 |
2500 |
3000 |
3500 |
|
Machine weight |
kgs |
1200 |
1250 |
1290 |
1310 |
|
Blade angle |
|
Adjustable by hydraulic cyliner |
|||
|
Efficiency |
hm²/h |
1.1-1.6 |
1.3-1.8 |
1.6-2.0 |
1.9-2.3 |
|
Max buried depth |
mm |
200 |
|||
|
Working speed |
Km/h |
5-15km/hour |
|||
|
Matched tractor power |
HP |
≥ 60 |
≥ 80 |
≥ 100 |
≥ 120 |
