Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tehe
-
Model Number:
-
T4004
-
Name:
-
T25-AJ 25mm push-button diverter
-
Size:
-
25mm
-
Material:
-
caremic
-
Color:
-
black
-
Turning degree:
-
-
-
Key word:
-
push-button
-
Working times:
-
500000 Times
-
Certificate:
-
ACS
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tehe
-
Model Number:
-
T4004
-
Name:
-
T25-AJ 25mm push-button diverter
-
Size:
-
25mm
-
Material:
-
caremic
-
Color:
-
black
-
Turning degree:
-
-
-
Key word:
-
push-button
-
Working times:
-
500000 Times
-
Certificate:
-
ACS
Product Description

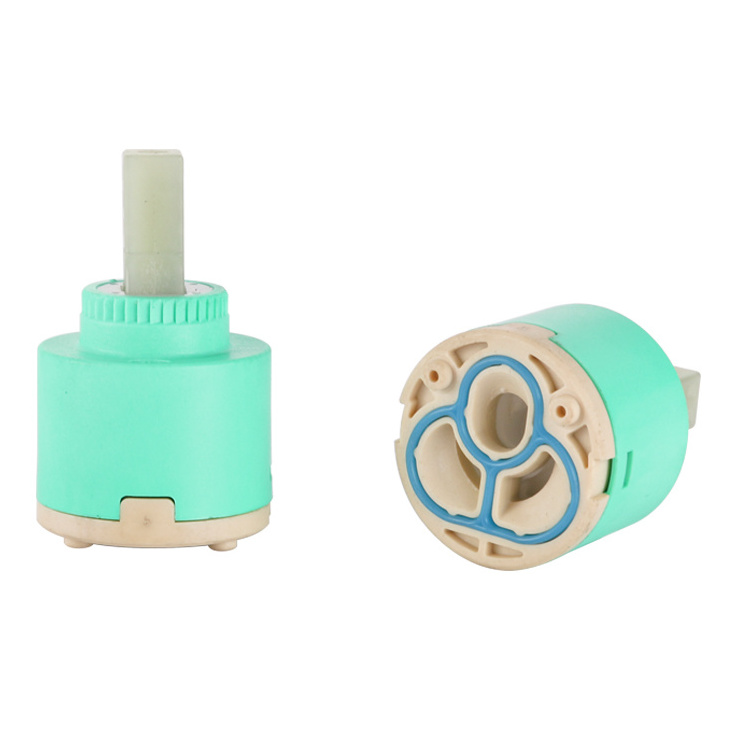

35mm Single Double Lock Pin Faucet Ceramic Cartridge Ceramic Disc Cartridge
| Parameter | |||||||
| Max.Turning Angle | - | Lever Break Torque | >=6N.m | ||||
| Max.Temperature | 90 | Gland Nut Torque | 6-8N.m | ||||
| Max.Opening Angle | - | ||||||
| Pressure(bar) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
| Average Flow Rate(L/min) | 8.1 | 10.6 | 12.3 | 14.5 | 16.2 | 18.1 | 20.3 |
| Testing Performance | |||||||
| Noise Level | Max.20db at 3bar(with noise reducer) | Noise Reducer | Selectable | ||||
| Air-Leak Test | 0.8MPa(fully tested one by one) | Ceramic Disc | AL2O3 95% | ||||
| Burst Test | static water pressure max.3.5MPa | ||||||
| Life Test |
According to the En817,GB18145-2003 Standard>70.000cycles according to the ASME,A112.18.1-2005 Standard>500.000cycles |
||||||
|
Ceramic Disc Date |
|||||||
| Material:Ceramic disc | |||||||
| Hardness:>1000 Hv5 | |||||||
| Flatness:<=0.3um | |||||||
| Surface Roughness Ra:<=0.2um | |||||||
