BLOWTAC disc diffuser for wastewater aeration

BLOWTAC disc diffuser for wastewater aeration

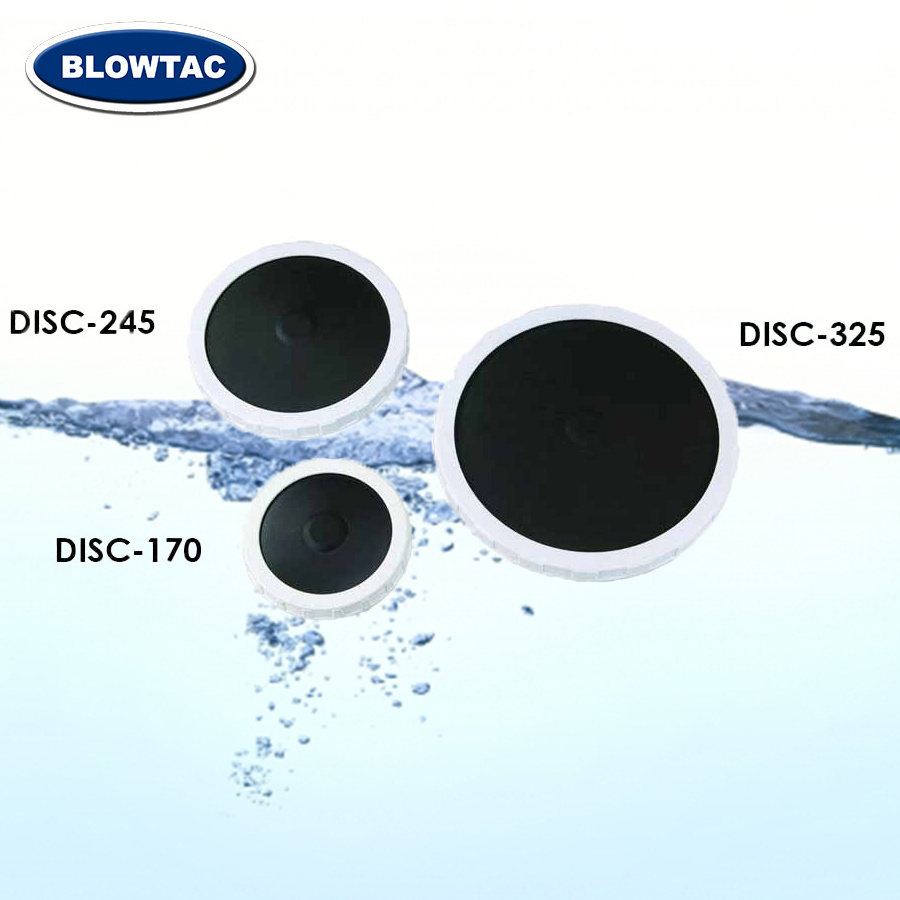

DISC-170 / DISC-245/ DISC-325

The membrane fine bubble diffuser, s atisfy all your need of aeration. The membrane fine bubble diffuser, satisfy all your need

Application

• Municipal wastewater treatment.
• Industrial wasterwater treatment.
• Clean water treatment.
• Sluduge stabilization
• Wastewater ozone diffusion.
• Aeration of fish ponds.
• Aeration of streams and lakes

Features:

• High oxygen transfer efficiency.
• High resistance to cloggong.
• High resistance to corrosion.
• Wide air flow range.
• Low energy cost.

• Easy installation.
• Uniform fine bubble.
• Back flow  prevention.
• Seif cleaning oprevention designed.
• Cost saving.

The BLOWTAC or ENVI-BUBBLE EPDM membrane fine bubble disc diffusers has been manufactured for more than 15 years in the aeration of industrial wastewater, municipal sewage, domestic septic tank, food process like fermentation, fish farm or shrimp farm aeration. The wastewater treatment of activated sludge and contact aeration process and aquarium will all need high Oxygen transfer rate or Oxygen transfer efficiency, OTE. and low pressure loss by the membrane.

The reinforced EPDM can continuously create fine bubble from slots on the EPDM membrane of disc type or tube type diffuser. The expected duty life may be over 5 years without tearing or bursting. There are other material selections of self-sink silicon rubber membrane, ceramic diffuser, air stone, and coil looking diffuser. There are also course bubble air diffuser for application of liquid mixture. The diffuser can be used for roots blower, ring blower and linear air pump. The diffuser also has advantage of much energy reduction.

We offer OEM manufacturing with high reliability and stability of performance, efficient and effective satisfaction of your client. Let our diffuser be the best choice of your solution.

More Specifications :

Membrane : EPDM

Outlet: 3/4"

DISC-170   Diameter : 17.5 cm

DISC-245   Diameter : 24.5 cm

DISC-325   Diameter : 32.5 mm
