Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hf power
-
Dimension(L*W*H):
-
722mm*664mm*814mm
-
Weight:
-
330
-
Rated power/speed:
-
25-40kw/1500-2500rpm
-
Bore*Stroke:
-
100mm*120mm
-
Compression Ration:
-
17:1
-
Cooling Way:
-
Air cooled
-
Combustion system:
-
Direct injection
-
Inspiration:
-
Natural intake
Quick Details
-
Displacement:
-
2.827L, 2.827 Liters
-
Emission Standard:
-
std
-
Power:
-
50HP, 45HP, 40HP, 37 KW
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hf power
-
Dimension(L*W*H):
-
722mm*664mm*814mm
-
Weight:
-
330
-
Rated power/speed:
-
25-40kw/1500-2500rpm
-
Bore*Stroke:
-
100mm*120mm
-
Compression Ration:
-
17:1
-
Cooling Way:
-
Air cooled
-
Combustion system:
-
Direct injection
-
Inspiration:
-
Natural intake

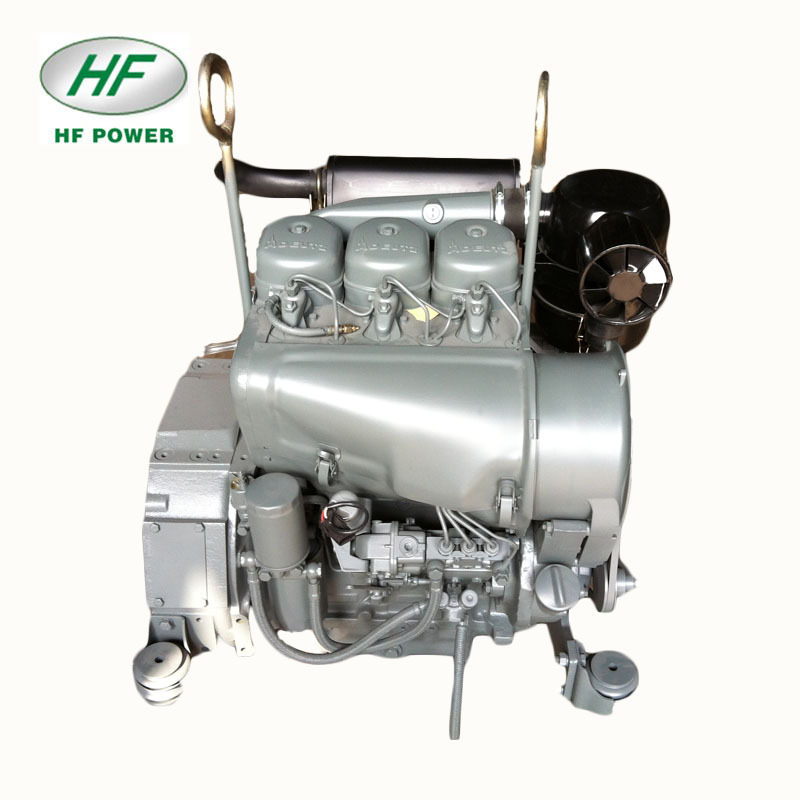

Online Sale Specialist Original 3-cylinder air cooled diesel engine F3L912 30 hp for deutz
|
In-line, 3Cylinder, 4 Cycle Diesel Engine |
|
|
Bore×Stroke |
100mm×120mm |
|
Displacement |
2.827 Liters |
|
Compression Ration |
17:1 |
|
Cooling Way |
Air cooled |
|
Combustion system |
Direct injection |
|
Inspiration |
Natural intake |
|
Direction of rotation |
Counterclockwise(face To flywheel end) |
|
Fuel consumption ratio |
240.7g/kwh(limit value) |
|
Oil consumption ratio |
2.04g/kwh(limit value) |
|
Lubricant Capacity |
8Liters |
|
Net Weight |
330kg |
|
Overall Dimension(L×W×H) |
722mm×664mm×814mm |
Technical Datasheet
|
Useage |
Power class |
Power |
Speed(rpm) |
|||||
|
1500 |
1800 |
2000 |
2150 |
2300 |
2500 |
|||
|
Construction equipment |
ISO 3046/1(IFN) (Highly intermittent) |
P(kW) |
26 |
31 |
34 |
36 |
38 |
40 |
|
P(HP) |
35 |
42 |
46 |
49 |
52 |
54 |
||
|
ISO 3046/1(IFN) (Intermittent) |
P(kW) |
25 |
29 |
32 |
35 |
36 |
38 |
|
|
P(HP) |
34 |
39 |
44 |
48 |
49 |
52 |
||
|
ICFN (Continuous) |
P(kW) |
24 |
28 |
30 |
32 |
35 |
||
|
P(HP) |
33 |
38 |
41 |
44 |
48 |
|||
|
Genset |
ICXN (Continuous) |
P(kW) |
24 |
28 |
||||
|
P(HP) |
33 |
38 |
||||||
