Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1320 mm
-
Travel (Y Axis)(mm):
-
2530 mm
-
Repeatability (X/Y/Z) (mm):
-
0.04 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ ( Optional: 220V )
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1400
-
Product name:
-
Cnc router wood working
-
Working area:
-
1300mm*2500mm*200mm
-
Spindle Power:
-
9KW
-
Table Surface:
-
Vacuum Table
-
Drive Motor:
-
Yaskawa Servo motor
-
Operating System:
-
Taiwan SYNTEC control
-
Spindle:
-
HQD/Italy spindle
-
Application:
-
CNC Router Wood Door Making
-
Working Voltage:
-
AC 380V 3P 50Hz
-
Keywords:
-
ATC cnc router
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
100 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1320 mm
-
Travel (Y Axis)(mm):
-
2530 mm
-
Repeatability (X/Y/Z) (mm):
-
0.04 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ ( Optional: 220V )
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1400
-
Product name:
-
Cnc router wood working
-
Working area:
-
1300mm*2500mm*200mm
-
Spindle Power:
-
9KW
-
Table Surface:
-
Vacuum Table
-
Drive Motor:
-
Yaskawa Servo motor
-
Operating System:
-
Taiwan SYNTEC control
-
Spindle:
-
HQD/Italy spindle
-
Application:
-
CNC Router Wood Door Making
-
Working Voltage:
-
AC 380V 3P 50Hz
-
Keywords:
-
ATC cnc router

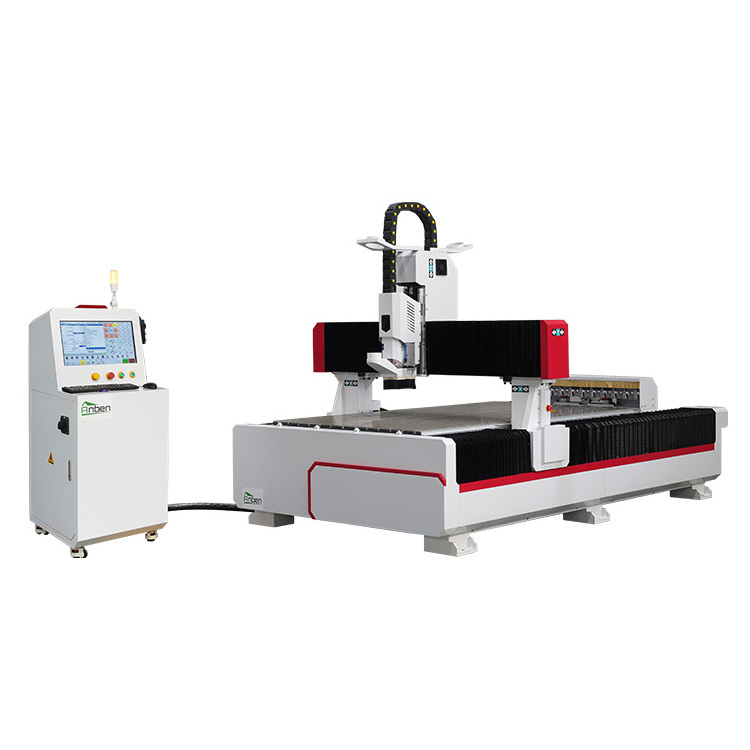

1325 ATC cnc router woodworking machine
Product Description:
Product Details:
Specifications:
| Model | AN1325-ATC Linear |
| Table Surface | Vacuum& T-slot Table |
| Tool Changer | Carousel tool changer*8 Positions |
| Tool Holder | ISO30*8 Pieces |
| Transmission | Taiwan TBI Ball Screw, Taiwan PMI Linear Guide |
| Spindle Power | 9KW |
| VFD Power | 11KW Fuling/Delta |
| Operating System | Taiwan SYNTEC Control System |
| Drive Motors | Yaskawa Servo motor and driver |
| Working Area (X*Y*Z) | 1300*2500*200mm |
| Working Voltage | AC380V 3P 50Hz |
9KW HQD ATC spindle
Yaskawa Servo motor
Taiwan SYNTEC Control System
1. Mold: wood,wax, wood, gypsum,foams,wax.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
