Quick Details
-
Power:
-
40kw
-
Dimension(L*W*H):
-
15.6*15*6m
-
Weight:
-
30000 kg
-
Capacity:
-
Best Quality 40t/h Mini Portable Drum Mix Asphalt Plant For Sale
-
Aggregate Storage Bins:
-
3.5m3X1
-
Fuel Consumption:
-
diesel consumption 6.5-7.5 kg /ton
-
Weighing Precision:
-
hot aggregate ±0.5%; bitumen ±0.3%
-
Aggregate Size:
-
≤25mm
-
Aggregate Gravity:
-
≥ 1600kg/m3
-
Aggregate Moisture:
-
≤5%
-
Hot Aggregate Temperature:
-
≤160℃
-
Hot Asphalt Temperature:
-
130℃-165℃
-
Certification:
-
CE, EAC, ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSUN
-
Voltage:
-
380V
-
Power:
-
40kw
-
Dimension(L*W*H):
-
15.6*15*6m
-
Weight:
-
30000 kg
-
Capacity:
-
Best Quality 40t/h Mini Portable Drum Mix Asphalt Plant For Sale
-
Aggregate Storage Bins:
-
3.5m3X1
-
Fuel Consumption:
-
diesel consumption 6.5-7.5 kg /ton
-
Weighing Precision:
-
hot aggregate ±0.5%; bitumen ±0.3%
-
Aggregate Size:
-
≤25mm
-
Aggregate Gravity:
-
≥ 1600kg/m3
-
Aggregate Moisture:
-
≤5%
-
Hot Aggregate Temperature:
-
≤160℃
-
Hot Asphalt Temperature:
-
130℃-165℃
-
Certification:
-
CE, EAC, ISO9001

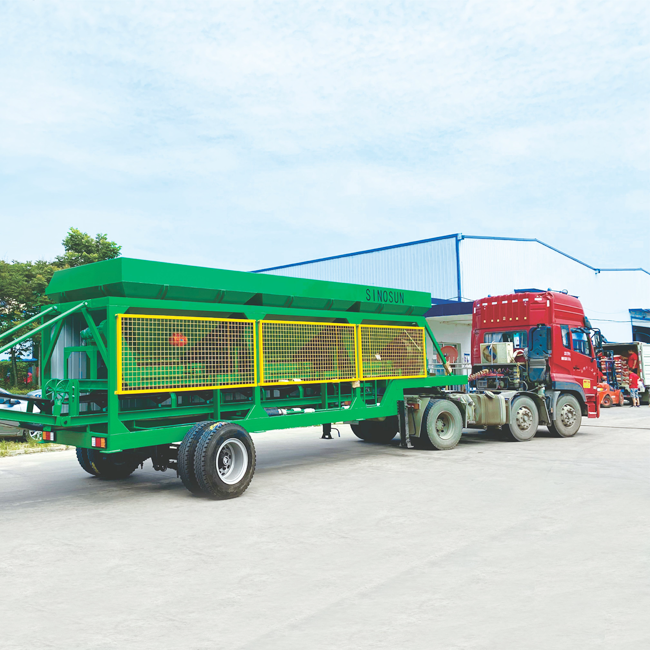

Best Quality 40t/h Mini Portable Drum Mix Asphalt Plant For Sale
Asphalt drum mix plant
is one type of continuous asphalt plant, with characteristics of simple structure, low cost and convenient maintain.This series asphalt drum mixing plant with capacity from 20-60t/h.
CAP series asphalt mixing plant characteristics
1. Different kins of aggregate bins, can select 2-4 different size aggregate. Different speed charging belt can control the charging capacity. The warehouse vibration motor is optional.
2. About the bitumen supply system, the bitumen tank can choose directly-heated type or thermal oil heating type.
3. Drying drum part: cold aggregate was dry and heated under the action of gravity and combined with bitumen and mineral powder to mix. The hot mix aggregate can control the temperature according to different requirements. In order to optimize the structure, the drying drum and the burner can installed in one base.
4. The burner adapts different kinds of fuel, such as light oil, heavy oil, gas and coal dust, high efficient and environment friendly.
5. The hot elevator adopts the latest generation technology, hot-mix mixture can directly enter into finished products bin through hot elevator.
6. Dust collection system, according to different requirements we provide multiple choice, such as cyclone dust filter, water dust filter and baghouse dust filter.
Parameter of SINOSUN CAP series asphalt drum mix plant
|
Model |
CAP20 |
CAP40 |
CAP60 |
Remarks |
|
Rated capacity(T/H) |
20 |
40 |
60 |
5% moisture |
|
Whole power(KW) |
40 |
90 |
120 |
Standard configuration |
|
Dust filter |
Cyclone dust filter |
Cyclone dust filter |
Cyclone dust filter |
Cyclone or baghouse dust filter |
|
Operate type |
Manual/Automatic |
Manual/Automatic |
Manual/Automatic |
|
|
Mixing type |
Continuous |
Continuous |
Continuous |
|
|
Aggregate weighting |
Belt weigher |
Belt weigher |
Belt weigher |
|
|
Bitumen weighting |
Flow weighing |
Flow weighing |
Flow weighing |
|
|
Bitumen heating |
Directly-heated |
Directly-heated |
Directly-heated |
Thermal oil heating system is optional |
Drying drum is the core part of
CAP continuous asphalt plant
, with function of drying the aggregate and heating to a certain temperature, and mix the bitumen, aggregate to qualified finished asphalt concrete product.
SINOSUN CAP series continuous asphalt plant has the following features:
Adopts down-flow heating, heating and mix in one time and continuous mix.
The equipment structure is simple, with higher reliability and high qualified finished product.
Small size, economic space occupation, simple and convenient to transport and install.
Drying and mixing drum main parameter
|
Model |
CAP20 |
CAP40 |
CAP60 |
Remarks |
|
Related capacity(T/H) |
20 |
40 |
60 |
5% moisture |
|
Driving power |
5.5 |
11 |
22 |
|
|
Drying drum size |
1200x4000 |
1200x5100 |
1500x6600 |
|
|
Dust collection |
Double cylinder cyclone dust filter |
Double cylinder cyclone dust filter |
Six cylinder cyclone dust filter |
Water dust filter and baghouse dust filter is optional |
|
Transmission type |
Chain drive |
Gear drive |
Gear drive |
|
|
Unloading height |
2.5m |
2.5m |
2.8m |
|
|
Finished storage bin |
2m3 |
2.5m3 |
3.5m3 |
|
|
Burner consumption(kg/h) |
150 |
300 |
400 |
Adjust rate 1:4 |
|
Burner draft fan power(kw) |
5.5 |
7.5 |
15 |
