Quick Details
-
Network:
-
None
-
Operation Voltage:
-
DC 12v to 24v
-
Operation Current:
-
40mA
-
Detection range:
-
12m*12m 360 degree
-
Installation Height:
-
2.2m-4m
-
Alarm time:
-
1.5-2.5s
-
Detect speed:
-
0.3meter/s to 1.5meter/s
-
Installation:
-
Ceiling mounted
-
Anti RFI/EMI:
-
0.1-500MHz/3Vm
-
Anti-white light:
-
>10000LUX
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WitZone
-
Model Number:
-
XDT-200S
-
Network:
-
None
-
Operation Voltage:
-
DC 12v to 24v
-
Operation Current:
-
40mA
-
Detection range:
-
12m*12m 360 degree
-
Installation Height:
-
2.2m-4m
-
Alarm time:
-
1.5-2.5s
-
Detect speed:
-
0.3meter/s to 1.5meter/s
-
Installation:
-
Ceiling mounted
-
Anti RFI/EMI:
-
0.1-500MHz/3Vm
-
Anti-white light:
-
>10000LUX

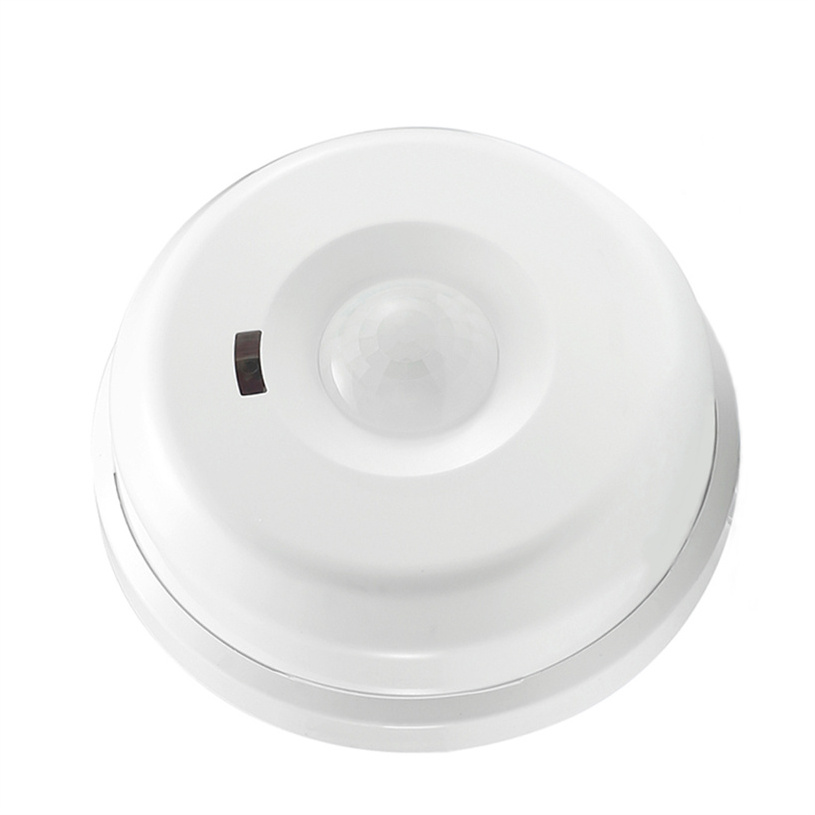

Wired Ceiling Mounting PIR Motion Sensor Pet Immune Indoor 360 Degree Infrared Detector for Home Safety Alarm Security System
Specification
|
Operation Current
|
Operation Current
|
|
Operation Voltage
|
DC 12v to 24v
|
|
Detection range
|
12m*12m 360 degree
|
|
Installation Height
|
2.2m-4m
|
|
Alarm time
|
1.5-2.5s
|
|
Detect speed
|
0.3meter/s to 1.5m/s
|
|
Installation
|
Ceiling mounted
|
|
Anti RFI/EMI
|
0.1-500MHz/3Vm
|
|
Anti-white light
|
>10000LUX
|
|
Alarm Output
|
Relay output NC/200mA/24V
|
|
Tamper Output
|
NC/NO Output,300mA/24V
|
|
Operation Temperature
|
10°C/+55°C
|
Introduction:
The detector is a top detector that uses infrared technology. Its unique and accurate spherical lens provide a 360° detection
range. Detectors can be used in a variety of indoor applications, such as warehouses, hotel rooms, offices, etc
range. Detectors can be used in a variety of indoor applications, such as warehouses, hotel rooms, offices, etc
Package Content
1pc wired PIR motion sensor with bracket and screws.
Note
This wired sensor can't work alone, it can work with all alarm system which support wired zones.
