Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongtuo
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
10500mm*1400mm*1500mm
-
Weight:
-
3000 kg
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Light Gauge Steel T bar Profile roll forming Machine
-
Usage:
-
Color Steel Construction for roofing
-
Company:
-
Zhongtuo
-
Pressing:
-
Hydraulic Guide Pillar
-
Cutting:
-
Hydraulic Guide Pillar
-
Transmission:
-
Chain Sprocket
-
Driving:
-
Electrical motor
-
Forming:
-
Rolling forming
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
20M/MIN
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongtuo
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
10500mm*1400mm*1500mm
-
Weight:
-
3000 kg
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Light Gauge Steel T bar Profile roll forming Machine
-
Usage:
-
Color Steel Construction for roofing
-
Company:
-
Zhongtuo
-
Pressing:
-
Hydraulic Guide Pillar
-
Cutting:
-
Hydraulic Guide Pillar
-
Transmission:
-
Chain Sprocket
-
Driving:
-
Electrical motor
-
Forming:
-
Rolling forming
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001

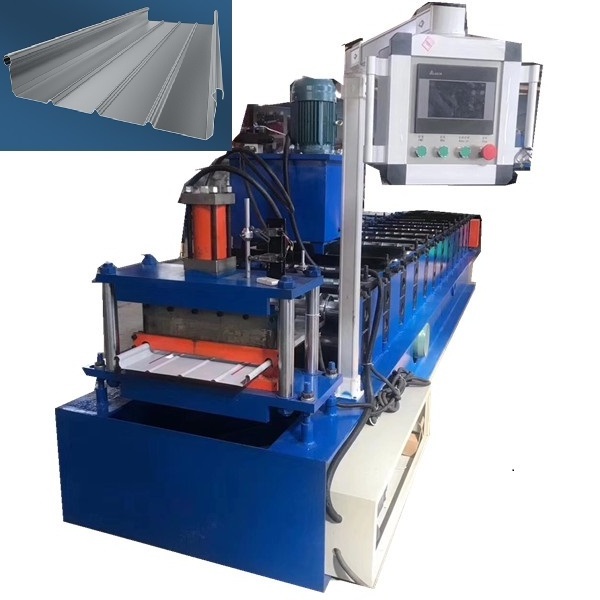

Zip Lock Bemo Type Standing Seam Profiling Machine
Zip Lock Bemo Type Standing Seam Profiling Machine is designed to make the standing seam roofing tiles in batch fully automatically. Here I will take the following drawing profiles for your reference:
Zip Lock Bemo Type Standing Seam has the following features :
1. Concealed interlocking; anti-leaking; air tightness; roof pitch≥1.5°
2. Good bulking design; excellent wind uplift resistance ability. lt can resist 200km/h wind speed when purlin space is 1.5m.
3. Allow sliding due to expansion and contraction; on-site shaping; no need of overlapping,length can reach more than 100m.
4. Both sides can be curved.Min radius≥1m.Transition panels(min 230mm,max 600mm)for different roofs.
5. Zip Lock means it is easy for locking.
Now let us check how the standing seam roofing tiles are used in construction .
Zip Lock Bemo Type Standing Seam Profiling Machine Design and how it works :
Features of Zip Lock Bemo Type Standing Seam Profiling Machine :
1. One machine can make two, three or more type standing seam profiles by rolling forming machine and by adjusting the spacer.
2. Machine working speed can reach 25 meter per minute.
3. Easy for installation. We will use the portable PLC and put the hydraulic station on the top of the machine, so once the machine arrives and then simple connect the main electricity wire and then okay.
Standard profiles and standard rolling forming machine, use the world famous brand elements then it is easy to learn and easy to do the maintain.
Normally this type standing seam profiles need locker and bending machine, we also can supply for you. Here are some types for your reference:
Standing seam more designs types, we will share more on our website.
Zhongtuo cold rolling forming machines we give the following before and after sale service:
1. Once we receive your drawing, we will give you some feedback according to our expereince.If there is some mistake in the drawing, we can point it out at the first time.
2. In the production, you can watch the whole prduction by camer if you like.
3. we give two year totally free after sale service and whole life tech support. For indian customer we give whole life free tech and engineering and free installation as we have warehouse and engineer there. Please know a little more about our factroy.
