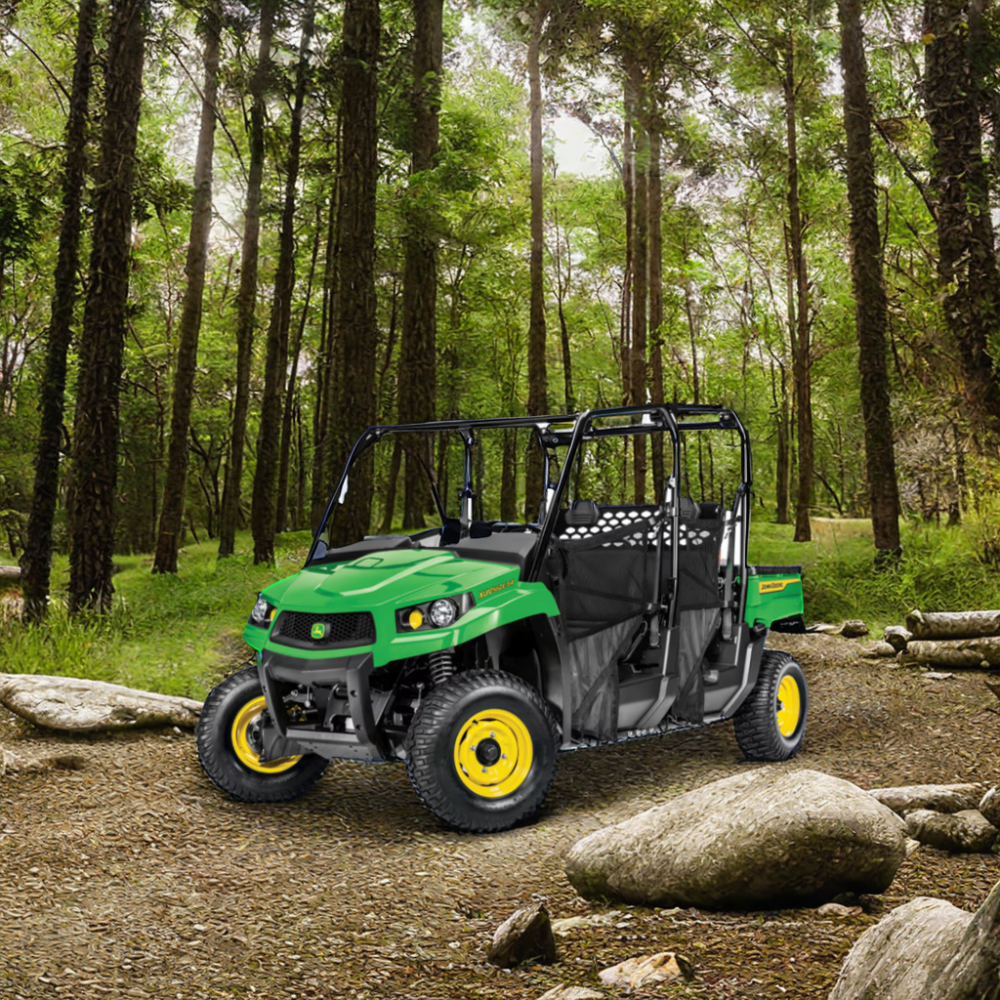

US XUV560E UTV Gator Crossover Utility Vehicle Automatic Transmission 4WD 4-Stroke Engine EEC and EPA Certified

Engine power     :11.9 kW
16 hp
Cargo box dimensions     :820 x 1209 x 297 mm
32.3 x 47.6 x 11.7 in.
Cargo box capacity (weight)     :227 kg
500 lb
Towing capacity     :680 kg
1500 lb
Front suspension     :Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear suspension     :Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel
Final drive     :Park, high, low, neutral, reverse transaxle
Four wheel drive     :Dash switch actuated four-wheel drive system
Fuel capacity     :18.5 L
4.9 U.S. gal.
Key Specs
Type     :4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)
Displacement     :570 cc
Power     :11.9 kW
16 hp
Cooling system     :Air cooled
Engine
Transmission     :Continuously Variable Transmission (CVT) with clutch enclosure
Final drive     :Park, high, low, neutral, reverse transaxle
Four wheel drive     :Dash switch actuated four-wheel drive system
Traction assist     :Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control     :No
Drivetrain
Front     :Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear     :Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel
Suspension
Type     :196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers
Park brake     :Park in-transmission
Brakes
Front     :25x8-12 Terra Hawk all-terrain on steel wheels
26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels
Rear     :25x10-12 Terra Hawk all-terrain on steel wheels
26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels
Tires / Wheels
Wheelbase     :1.86 m
72.8 in.
Weight     :With fuel and fluids: 571 kg
1259 lb
Length     :2870 mm
113 in.
Width     :1435 mm
56.5 in.
Height     :1867 mm
73.5 in.
Tread centers     :Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.
Ground clearance     :Minimum: 267 mm
10.5 in.
Fuel capacity     :18.5 L
4.9 U.S. gal.
Cargo box dimensions     :820 x 1209 x 297 mm
32.3 x 47.6 x 11.7 in.
Cargo box capacity (weight)     :227 kg
500 lb
Payload capacity     :408 kg
900 lb
Towing capacity     :680 kg
1500 lb
Hitch     :Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Dimensions / Capacities
Color     :Green/yellow, olive/black, camo
Power steering     :Not available
Battery / Alternator / Power port     :Battery: 12 V 340 CCA
Alternator: 16 amp
DC outlet: 12 V
Instrumentation     :Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor
Storage     :Two cupholders, sealed underhood storage, glove box
Seating     :Black vinyl bench
Features
Country of Manufacture     U.S.
