Quick Details
-
Function:
-
Noise Cancelling
-
Brand Name:
-
Green Audio
-
Model Number:
-
GAW-M46
-
Place of Origin:
-
Guangdong, China
-
Signal To Noise Ratio:
-
85dB
-
Frequency Response Rate:
-
50Hz-15KHz
-
Product name:
-
1 to 4 UHF professional microphone wireless
-
Output power:
-
10mW
-
Charging current:
-
≤540mA
-
Audio dynamic range:
-
>106dB
-
Harmonic radiation:
-
<-65dBm
-
Band width:
-
30MHz
-
Maximum offset:
-
±45KHz
-
Power input:
-
DC12V, >1A
-
Operating frequency:
-
640-690MHz
-
Total audio gain:
-
≤20dB
Quick Details
-
Style:
-
Handheld Microphone, Wireless Microphone, Other
-
Communication:
-
Wireless
-
Use:
-
COMPUTER MICROPHONE, Conference Microphone, Karaoke Microphone, Church, Stage Performance, INTERVIEW, Speech, Smart Phones, Recording, SINGING, Teaching, Portable Audio Player, communication, broadcasting, Kids, Gaming, Other
-
Function:
-
Noise Cancelling
-
Brand Name:
-
Green Audio
-
Model Number:
-
GAW-M46
-
Place of Origin:
-
Guangdong, China
-
Signal To Noise Ratio:
-
85dB
-
Frequency Response Rate:
-
50Hz-15KHz
-
Product name:
-
1 to 4 UHF professional microphone wireless
-
Output power:
-
10mW
-
Charging current:
-
≤540mA
-
Audio dynamic range:
-
>106dB
-
Harmonic radiation:
-
<-65dBm
-
Band width:
-
30MHz
-
Maximum offset:
-
±45KHz
-
Power input:
-
DC12V, >1A
-
Operating frequency:
-
640-690MHz
-
Total audio gain:
-
≤20dB

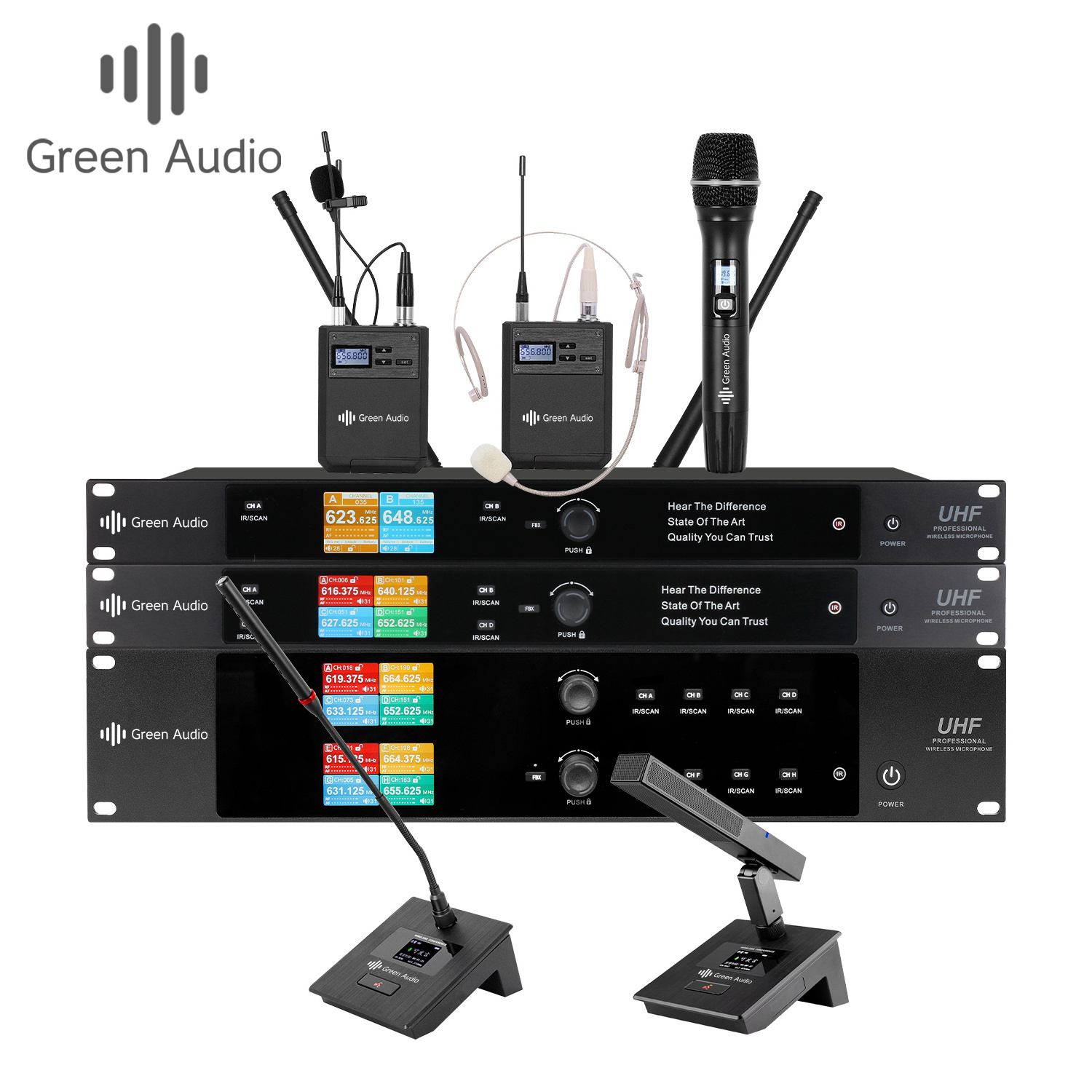

GAW-M46 1 to 4 UHF professional microphone wireless infrared frequency microphone suitable for conference karaoke church stage
Specification
|
Wireless receiver parameter :
|
value
|
|
|
Built-in a variety of sensors, wireless detection, wireless regulation, wireless matching, wireless encryption, wireless automatic management without any assistance to help you work successfully
|
Green Audio
|
|
|
The radar frequency selection automatically synchronizes the work, when the microphone unit is in the same address code, the master computer changes the communication channel, all the microphone units automatically follow the synchronization, eliminating the need for professional debugging and installation.
|
Frequency Range:620-681MHz
|
|
|
Built-in equalizer to adjust the signal output of the system; To meet different venue occasions.
|
super heterodyne twice freguency
|
|
|
Humanized features: HD voice restoration, super directional Angle 60°, sound detection, unique battery life power supply Reject interference, wireless voice distribution.
|
110MH,second:10.7MHz
|
|
|
TFT2.69 inch color HD display, with high brightness, high contrast, wide viewing Angle, hierarchical menu design, make the operation simple and convenient.
|
0-40dB
|
|
|
Our unique shuttle function knob, according to user needs to select a variety of channel functions, get rid of the traditional key multi-user will not operate, the use of trouble.
|
>80dB
|
|
|
The microphone comes with 5V charging function, which is more convenient to use and more environmentally friendly.
|
Un-balanced:±4dB(1.25V)/5KΩ Balanced:+10dB[2.5V)/600Ω
|
|
|
Operating frequency ：640-690MHz
|
DC9-15V(Rated12V),400Ma input
|
|
|
Microcomputer CPU control
|
|
|
|
PLL phase-locked loop frequency synthesis technology, infrared frequency matching
|
|
|
|
200 channels free choice, TFT2.69 inch color HD display
|
|
|
|
Frequency stability ：±0.002%
|
|
|
|
Noise lock silencing Control + Voice Code navigation lock silencing control
|
|
|
|
Audio dynamic expansion and automatic level control circuit
|
|
|
|
Use distance: more than 100 meters, wide space can reach more than 150 meters
|
|
|
|
2*200(one tow two)4*200(one tow four)8*200(one tow eight) Antenna access :BNC/50Q cassette antenna base.
|
|
|
|
Power Consumption: Handheld :118mA(2.6V), waist pack :118mA(2.6V), Conference :108mA(3.6V)
|
|
|
|
Audio frequency response ：50Hz-15KHz
|
|
|
|
Total audio gain ：≤20dB
|
|
|
|
Audio frequency response ：50Hz-15KHz
|
|
|
|
Total audio gain ：≤20dB
|
|
|
|
SNR ：>85dB
|
|
|
|
Audio total harmonic distortion ：≤0.8%
|
|
|
|
Power input ：DC12V, >1A
|
|
|
|
Wireless digital bucket transmitter：
|
|
|
|
Communication mode :UHF wireless, infrared frequency conference talk with a large 2.6 inch high-definition color display, display meeting mode, with high brightness, high contrast, wide viewing Angle, silent key, no mechanical key sound, long life, and waterproof function.
|
|
|
|
Operating frequency: 640-690MHz
|
|
|
|
Maximum modulation system :+45KHz
|
|
|
|
Infrared PLL PLL frequency synthesis technology 200 channels free choice
|
|
|
|
Ultra-low power consumption, microphone unit more than 8 hours of continuous speaking time and more than 10 hours of standby time.
|
|
|
|
Conference unit microphone comes with charging function, standard: handheld, waist pack microphone 2 No. 5 battery, conference microphone 3 No. 5 ordinary battery, need to charge: buy another manufacturer's original nickel-metal hydride battery. The matching smart charger can effectively protect the battery and extend the battery life.
|
|
|
|
|
|
|
|
One to four handheld 1PCS/CTN: 55.3x16.2x35.3cm 4.5kg
One to four handheld 5PCS/CTN: 78x35.8x56.3cm 23kg
|
|
|
|
One drag four short/long pole conference 1PCS/CTN: 55.3x16.2x35.3cm 6.1kg
One drag four short/long pole conference 5PCS/CTN:78x35.8x56.3cm 31kg
|
|
|
|
One drag four head wear/collar clip 1PCS/CTN: 55.3x16.2x35.3cm 3.85kg
One drag four head wear/collar clip 5PCS/CTN: 78x35.8x56.3cm
19.5kg |
|
|
