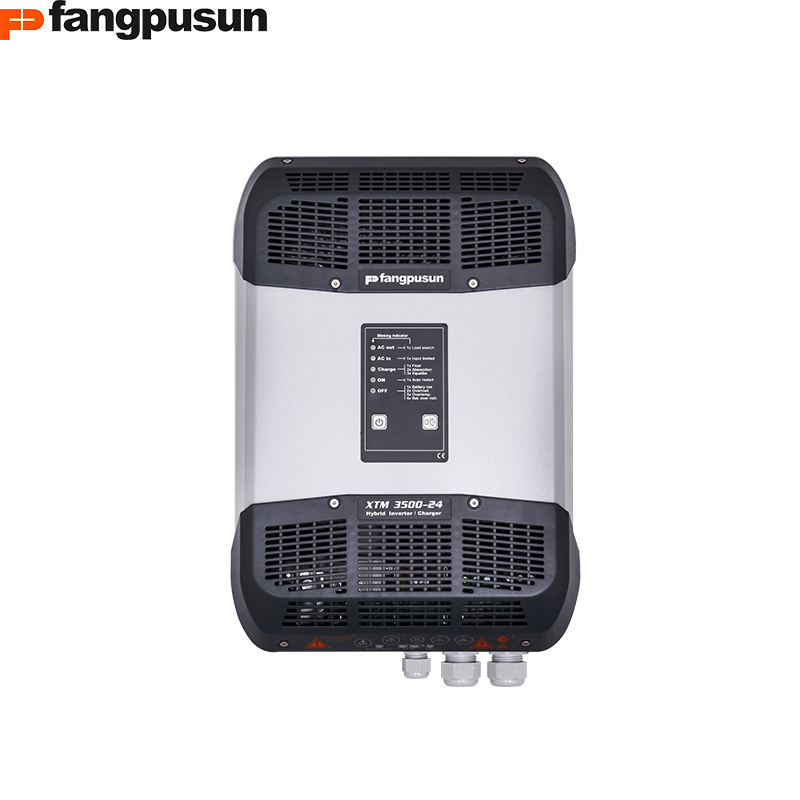

1 Hybrid Inverter with AC charger function for single or three phase solar power system battery charger inverter

1 Hybrid Inverter with AC charger function for single or three phase solar power system battery charger inverter xtender

The basic functions of the combined inverters Fangpusun Xtender are the inverter, the battery charger, the switching function and the support of external sources of alternating current. These functions can be combined and controlled fully automatically. The inverters offer outstanding user-friendliness and very good exploitation of the energy available.

All the settings of the Fangpusun Xtender can be remote controlled. When a software with new functions is available, it can be loaded into the system, so the Fangpusun Xtender always stays up to date. Several Fangpusun Xtender can be connected in parallel or to form a three-phase system. That means that up to nine Fangpusun Xtender can work together.

Multifunction contacts

These potential-free contacts can be programmed for many different applications. They can react to any event outside or inside of the inverter (grid availability, battery voltage, fault message ...) They can also be programmed on a timer or can be switched on during particular times (at night, at the weekend ...). In this way, they can serve to start up a generator, to switch off less important loads, to signal a fault, to charge batteries depending on the situation, etc.

Smart-boost function

With the smart-boost function, the output of another source of alternating current, such as a power generator or a charger connection, can be increased; even when special loads are being used (inductive, asymmetric, with high switch-on current). It is also possible to combine the Fangpusun Xtender with almost all inverters which are already present in order to increase the available output.

Features

Product features

· True sine wave voltage

· Excellent overload capabilities

· Optimal battery protection

· Adjustable integrated battery charger

· Multistage programmable battery charger with PFC

· Automatic load detection

· Standby load detection adjustable over a wide range, starting from a low value

· Parallel connectable

· Best reliability

· Can be used as a back-up system or uninterruptible power supply (UPS)

· Multifunction contact

· Adjustable power sharing

· Reliable and noiseless with any kind of load

· Support of sources of alternating current (Smart Boost)

· Automatic support for peak loads (Power Shaving)

· Ultra-fast transfer relay

· High efficiency

· Control by digital signal processor (DSP)

Electronic protection functions

· Deep discharge protection

· Battery overvoltage shutdown

· Short circuit protection

· Overtemperature and overload protection

· Reverse polarity protection by internal fuse (except Fangpusun Xtender XTH 3000)

· Acoustic alarm at deep discharge or overheating

Displays

· 5 LEDs show operating states

Operation

· Main switch

· Adjustable load detection

Certificates

· Compliant with European Standards (CE)

· RoHS compliant

· Made in china
