Quick Details
-
Graphic Format Supported:
-
Other
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
570*600*270mm
-
Weight (KG):
-
6.5 KG
-
Core Components:
-
laser head
-
Product name:
-
S6 Pro Laser engravig machine
-
Material:
-
Aluminum Alloy
-
Software:
-
LaserGRBL LightBurn
-
Style:
-
protable mini desktop laser engraver
-
Showroom Location:
-
None
Quick Details
-
Engraving Area:
-
410*400mm
-
Laser Type:
-
Other
-
Engraving Speed:
-
1000mm/min
-
Graphic Format Supported:
-
Other
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
570*600*270mm
-
Weight (KG):
-
6.5 KG
-
Core Components:
-
laser head
-
Product name:
-
S6 Pro Laser engravig machine
-
Material:
-
Aluminum Alloy
-
Software:
-
LaserGRBL LightBurn
-
Style:
-
protable mini desktop laser engraver
-
Showroom Location:
-
None
Products Description
Features:
1. Powerful high-speed air assist: S10 is equipped with a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.
2. Ultra-thin high density 10W laser beam shaping technology: The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9 , which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.
3. Faster, stronger, cleaner: Combining advanced high-speed air assist and 10W high density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.
4.Industrial-grade cutting accuracy: S10 adopts industrial high-precision linear slide rail X-axis, which makes it get industrial-grade engraving accuracy. When comparing the small engraving details, S10 does not have the wave lines that other ordinary engraving machines appear.
5.More advanced and upgradable 32-bit motherboard: The S10 motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.
6. Expandable engraving area: S10 keeps Y-axis expandable design like S9, the original engraving area is about 400x400mm, but you can buy S10 Y-axis extension kit to expand the engraving area to 400X950mm, which can help you get 230% of the engraving area at a very low price. This can help you better to deal with large-area engraving or cutting work.
7. Adjustable laser eye shield: The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.
8. Safe design: There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable.
9. A4 steel pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
10.Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.
|

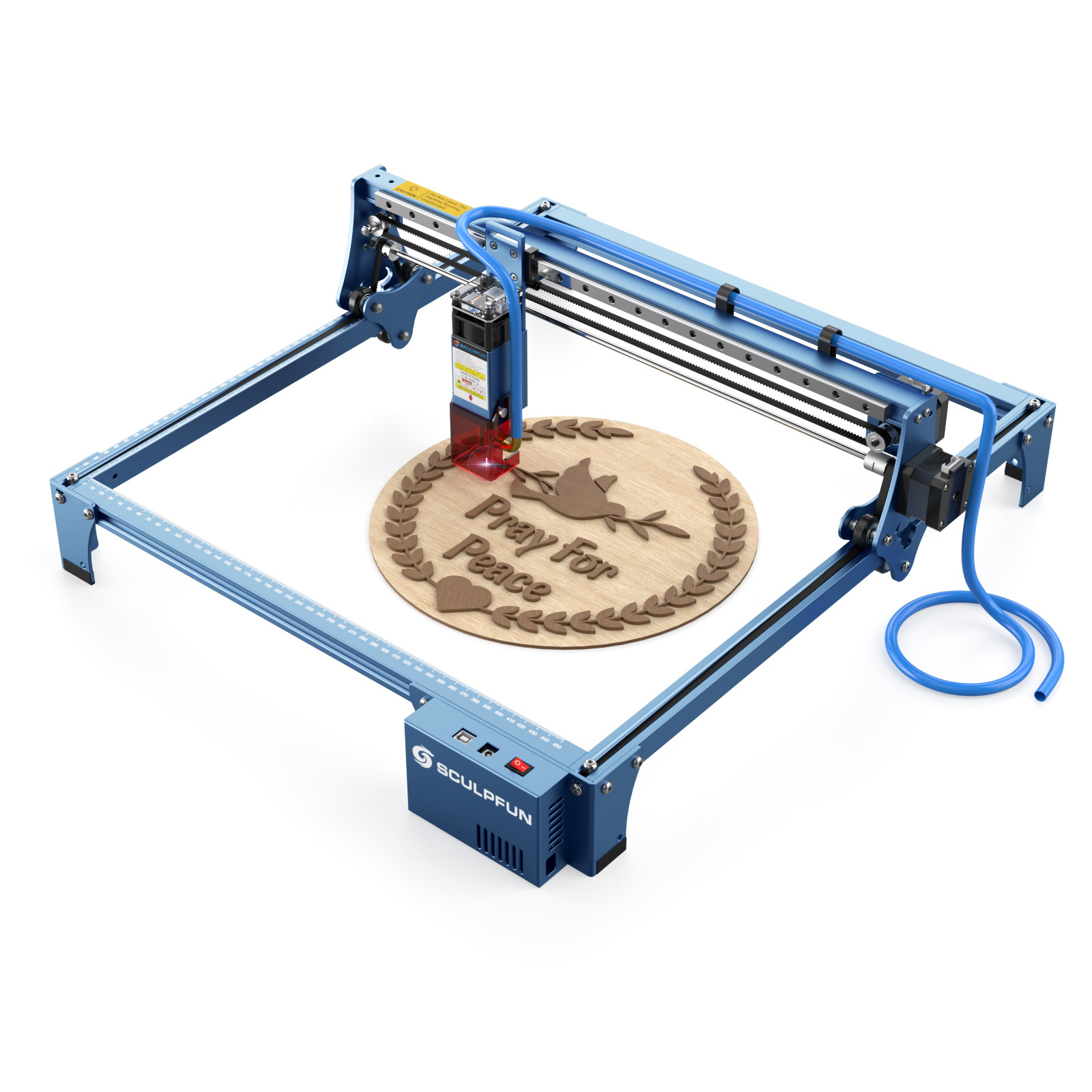

Item model number
|
SCULPFUN S10 Laser Machine
|
|
|
|
|
Print Size
|
Recommend Print Size 410*420mm
|
|
|
|
|
Carving Objects
|
All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal，Utility knife
after blacking |
|
|
|
|
Cutting Objects
|
Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
|
|
|
|
|
Laser output power
|
10W (note this is light energy not electrical energy)
|
|
|
|
|
Wave Length
|
445 ± 5nm
|
|
|
|
|
Engraving accuracy
|
0.01m
|
|
|
|
|
Focusing method
|
fixed focus laser, no need to focus
|
|
|
|
|
Laser protective cover
|
Protect the user's eyes and prevent pets from grabbing the laser spot
|
|
|
|
|
Operating software
|
LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system/Mac
|
|
|
|
|
Input Format
|
NC, BMP, JPG, PNG, DXF, etc
|
|
|
|
|
Data transmission method
|
USB connection
|
|
|
|
|
Input Voltage
|
AC100-240V, 50/60Hz BS Adapter
|
|
|
|
|
Output Voltage
|
DC12V, 5A
|
|
|
|
|
Equipment net weight
|
3.42kg
|
|
|
|
|
Package weight
|
5.13kg
|
|
|
|
|
Packing size
|
600*345*130mm
|
|
|
|
|
Certification
|
CE FCC RoHS
|
|
|
|
