Quick Details
-
Weight (KG):
-
0.01 KG
-
wavelength:
-
520nm 532nm
-
lifetime:
-
>8000Hrs
-
work voltage:
-
3V
-
material:
-
brass or aluminum
-
Certificated:
-
IEC ISO9001-2008
-
Temp. Stability:
-
> 95% (@-10°C ~ 50°C)
-
Voltage Stability:
-
-> 98% (@2.7 ~ 5.5VDC)
-
Operating Temp.:
-
10°C ~ 50°C
-
Color:
-
green
-
Power:
-
1w/5w/10w/20w/35w/50w/75w/90w/100w/150w/200mw
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
laser module
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
wavelength:
-
520nm 532nm
-
lifetime:
-
>8000Hrs
-
work voltage:
-
3V
-
material:
-
brass or aluminum
-
Certificated:
-
IEC ISO9001-2008
-
Temp. Stability:
-
> 95% (@-10°C ~ 50°C)
-
Voltage Stability:
-
-> 98% (@2.7 ~ 5.5VDC)
-
Operating Temp.:
-
10°C ~ 50°C
-
Color:
-
green
-
Power:
-
1w/5w/10w/20w/35w/50w/75w/90w/100w/150w/200mw
|
Specification
|

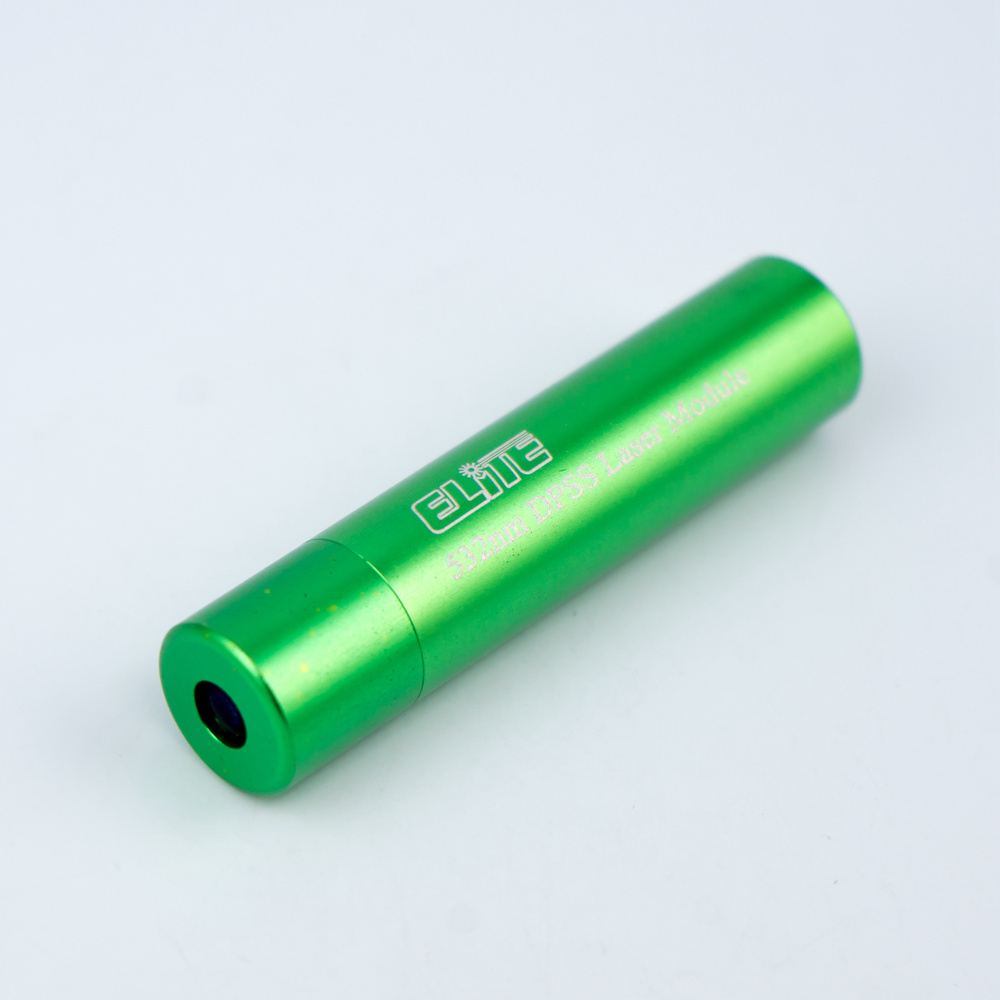

Industrial Diode Laser Module
|
|
|
|
|
|
|
||||||
|
Wavelength
|
520nm
|
650nm
|
660nm
|
670nm
|
532nm
|
705nm
|
730nm
|
||||||
|
Output Power
|
1,5,10,20,35,50,80,100,and130mW（Custom）
|
|
|
|
|
|
|
||||||
|
CDRH Class
|
I,II,IIIa,IIIb
|
|
|
|
|
|
|
||||||
|
Aperture
|
Ø1.0mm,Ø1.5mm,Ø2.0mm,Ø2.4mm,Ø3.0mm,Ø5.0mm,Ø6.0mm
|
|
|
|
|
|
|
||||||
|
Divergence
|
0.1mrad,0.2mrad,0.3mrad,0.5mrad,0.8mrad,1.0mrad
|
|
|
|
|
|
|
||||||
|
Circular Beam Size
|
Ø0.5mm(@0.5m),Ø1.0mm(@1m),Ø4.0mm(@5m),Ø5.0mm(@10m)
|
|
|
|
|
|
|
||||||
|
Elliptical Beam Size
|
1x2mm(@1m),2x4mm(@2m),3x6mm(@5mm),5x10mm(@10m),8x16mm(@20m）
|
|
|
|
|
|
|
||||||
|
Operaating Current
|
<300mA
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
3.0to5.0V,9.0V,12.0V,24.0V
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-20℃~60℃
|
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-40℃~85℃
|
|
|
|
|
|
|
||||||
|
MTBF
|
>10,000hours
|
|
|
|
|
|
|
||||||
customized size
1.Small beam size from 5um 2.Compact and light weight
FAQ
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes.
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes.
7. How long is the warranty period?
12 months.
