Quick Details
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LINKS
-
Dimension(L*W*H):
-
2.3m*1.9m*2.3m
-
Weight:
-
6500 KG
-
Factory:
-
LINKS MACHINERY
-
Model:
-
RCFG series
-
Power of main motor (KW):
-
7.5
-
Water pressure (Mpa):
-
0.25-0.3Mpa
-
Suitable bottle:
-
PET bottle with screw cap (200ml to 2000ml bottle)
-
Suitable bottle height (mm):
-
160-310
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
8000BPH, 12000BPH, 6000BPH, 2000BPH, 1000BPH, 5000BPH, 21000BPH
-
Packaging Material:
-
Plastic, Paper, Glass, Other
-
Filling Material:
-
Water, Juice
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LINKS
-
Dimension(L*W*H):
-
2.3m*1.9m*2.3m
-
Weight:
-
6500 KG
-
Factory:
-
LINKS MACHINERY
-
Model:
-
RCFG series
-
Power of main motor (KW):
-
7.5
-
Water pressure (Mpa):
-
0.25-0.3Mpa
-
Suitable bottle:
-
PET bottle with screw cap (200ml to 2000ml bottle)
-
Suitable bottle height (mm):
-
160-310
-
Marketing Type:
-
New Product 2022

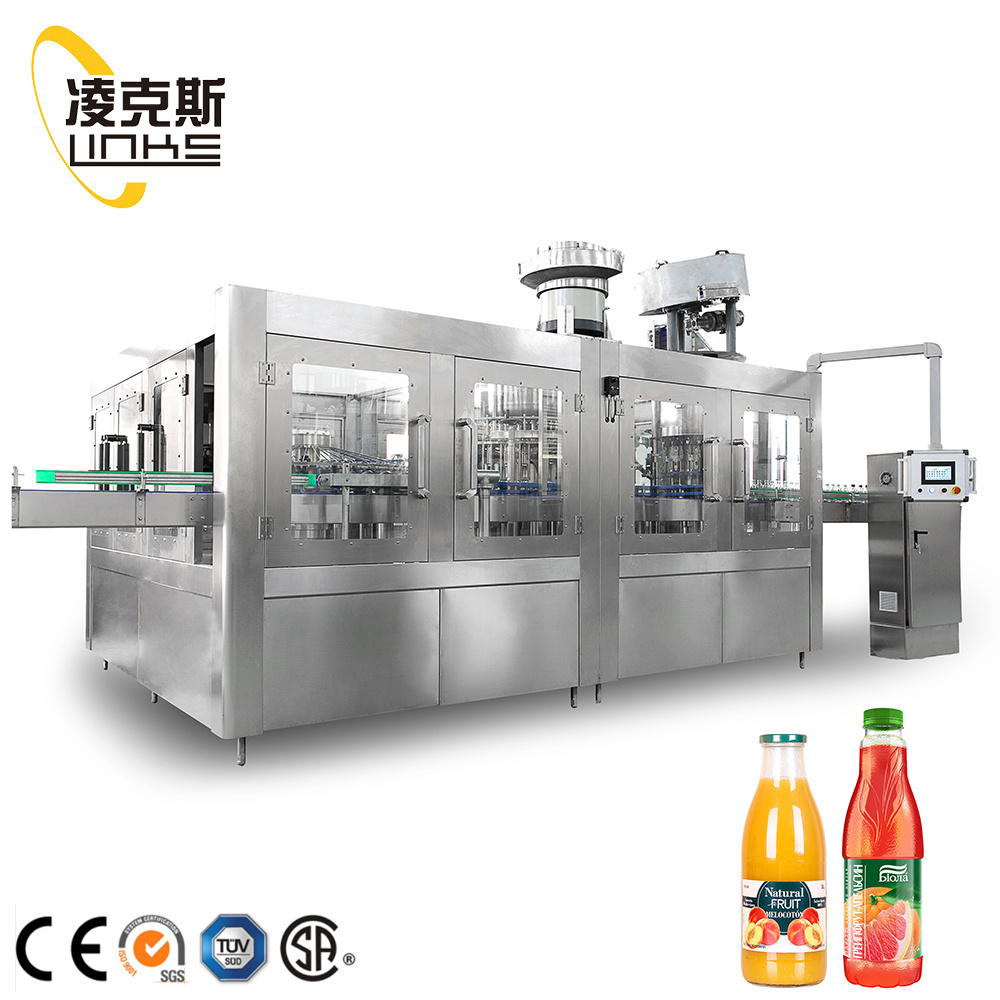

Complete Turnkey Project Juice Filling Line Processing Equipment
*We supply complete solution for the juice filling line ,including Water treatment system /Juice mixing system / UHT Sterilizer /Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine /Automatic Palletizer system.
|
Technical parameter :Juice filling line
|
|
|
|
|
|
|||||
|
Model
|
RCGF14-12-5
|
RCGF18-18-6
|
RCGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
|||||
|
Capacity(for 500ml)
|
2000-3000
|
5000-6000
|
8000-12000
|
13000-15000
|
16000-18000
|
|||||
|
Suitable bottle shapes
|
PET circular or square
|
|
|
|
|
|||||
|
Bottle diameter(mm)
|
Dia50-Dia115mm
|
|
|
|
|
|||||
|
Bottle height (mm)
|
160-320mm
|
|
|
|
|
|||||
|
Compressor air
|
0.3-0.7Mpa
|
|
|
|
|
|||||
|
Filling type
|
Hot filling line
|
|
|
|
|
|||||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|
|
|
|
|||||
|
Application
|
Juice filling line
|
|
|
|
|
|||||
|
Total power (KW)
|
4.4kw
|
4.4kw
|
5.2KW
|
6.2kw
|
7.8kw
|
|||||
|
Overall dimensions
|
2.3*1.9m
|
2.5*1.9m
|
3.2*2.5m
|
3.8*2.8m
|
4.5*3.3m
|
|||||
|
Height
|
2.3m
|
2.5m
|
2.5m
|
2.5m
|
2.6m
|
|||||
|
Weight(kg)
|
2500kg
|
3200kg
|
5500kg
|
6500kg
|
8000kg
|
|||||
Different filling capacities
8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour.
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.
Complete juice processing system with reasonable mixing and sterilization technology ,not only can be suitable for common products ,but also can satisfy special requirements of customers ,for example juice ,milk ,cream or high viscosity products containing fiber and large pulp granules .
Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
|
Name
|
Brand
|
Area
|
|
PLC
|
Siemens
|
Germany
|
|
Inverter
|
Siemens
|
Germany
|
|
Contactor
|
Siemens
|
Germany
|
|
Touch screen
|
Siemens
|
Germany
|
|
Inverter
|
Siemens
|
Germany
|
|
Motor
|
ABB
|
Swiss
|
|
Pneumatic parts
|
FESTO
|
Germany
|
|
Electrical parts
|
Schneider
|
France
|
As customer request and market demand, we provide the better solution for the final product package,We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label ,and packing machine have the film shrink machine and carton box package.
We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
Leadership in quality and technology from raw material to bottled liquid to selling products - Links Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
