Quick Details
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
36 - 1526 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Model Number:
-
ZX6350C
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/380V
-
Weight (KG):
-
1400
-
Marketing Type:
-
New Product
-
Product name:
-

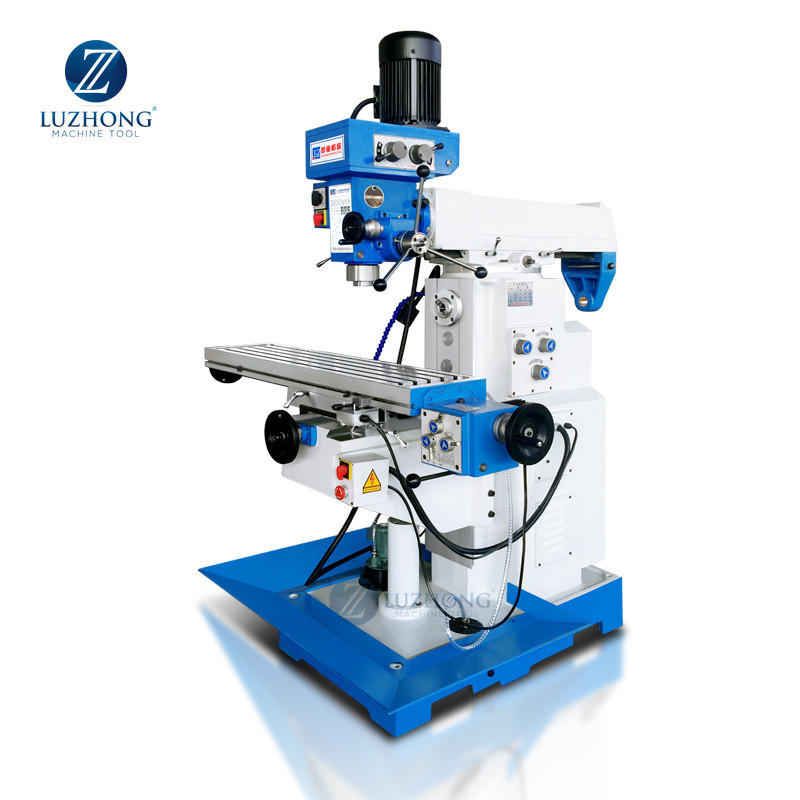

bench milling drilling ZX6350C drilling machine promotion list
-
Machine Type:
-
Vertical Drilling Milling
-
Keyword:
-
Milling Machine Manual
-
Color:
-
Custom-made
-
Function:
-
Drilling Milling
-
Application:
-
Metal Machining
-
Precision:
-
High Precision
-
Spindle Speed:
-
36-1526rpm
-
Spindle travel:
-
120mm
-
Usage:
-
General
Quick Details
-
Table Travel (X) (mm):
-
600
-
Table Travel (Y) (mm):
-
280
-
Table Travel (Z) (mm):
-
200
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
36 - 1526 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Model Number:
-
ZX6350C
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/380V
-
Weight (KG):
-
1400
-
Marketing Type:
-
New Product
-
Product name:
-
bench milling drilling ZX6350C drilling machine promotion list
-
Machine Type:
-
Vertical Drilling Milling
-
Keyword:
-
Milling Machine Manual
-
Color:
-
Custom-made
-
Function:
-
Drilling Milling
-
Application:
-
Metal Machining
-
Precision:
-
High Precision
-
Spindle Speed:
-
36-1526rpm
-
Spindle travel:
-
120mm
-
Usage:
-
General
Product Description
The main performance characteristics：
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Specification
|
Specifications
|
Units
|
ZX6350C
|
|
Max. drilling dia
|
mm
|
50
|
|
Max. end milling width
|
mm
|
100
|
|
Max. vertical milling dia
|
mm
|
25
|
|
Max.boring dia
|
mm
|
120
|
|
Max. tapping dia
|
mm
|
M16
|
|
Distance from spindle nose to table surface
|
mm
|
80-460
|
|
Spindle taper
|
|
MT4
|
|
Horizontal Spindle taper
|
|
ISO40
|
|
Spindle speed range
|
rpm
|
36-1526(V) 40-1300(H)
|
|
Spindle travel
|
mm
|
120
|
|
Table size
|
mm
|
1200×280 Optional: 1500x280
|
|
Table travel
|
mm
|
600×280 Optional: 1000x280
|
|
Table feed speed
|
mm/min
|
X:16-480
|
|
Overall dimensions
|
mm
|
1500×1600×2200
|
|
Spindle motor power
|
kw
|
1.5/2.2(V) 3(H)
|
|
Machine weight
|
kg
|
1300/1400
|
