Stud Welding machine application in field of steel structure, bridge, prefab products and steel floor decks.
- Product Details
- {{item.text}}
Quick Details
-
Pulse Frequency:
-
50/60Hz
-
Pilot Arc Current:
-
30A
-
Rated Duty Cycle:
-
32%
-
Dimensions:
-
1060x590x740mm (LxWxH)
-
Usage:
-
Stud welding
-
Voltage:
-
3 phase 220/380/415VAC
-
Power:
-
80-200kW
-
Weight (KG):
-
245 KG
-
Application:
-
Stud weling for steel structure, bridge, boiler etc.
-
Protection Class:
-
IP23
-
Weight:
-
245~470kg
-
Cooling Method:
-
Air cooling
-
Working Condition:
-
Dry environment
-
Multi-function:
-
Bolt welding, stud welding, MMA
-
Accessories:
-
Stud gun, stud chucks, ferrule holders
-
Max. Length Extension Weld Cable:
-
100m
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
IKING
-
Arc Current:
-
200-3150A
-
Pulse Frequency:
-
50/60Hz
-
Pilot Arc Current:
-
30A
-
Rated Duty Cycle:
-
32%
-
Dimensions:
-
1060x590x740mm (LxWxH)
-
Usage:
-
Stud welding
-
Voltage:
-
3 phase 220/380/415VAC
-
Power:
-
80-200kW
-
Weight (KG):
-
245 KG
-
Application:
-
Stud weling for steel structure, bridge, boiler etc.
-
Protection Class:
-
IP23
-
Weight:
-
245~470kg
-
Cooling Method:
-
Air cooling
-
Working Condition:
-
Dry environment
-
Multi-function:
-
Bolt welding, stud welding, MMA
-
Accessories:
-
Stud gun, stud chucks, ferrule holders
-
Max. Length Extension Weld Cable:
-
100m
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE, ISO
Product Description

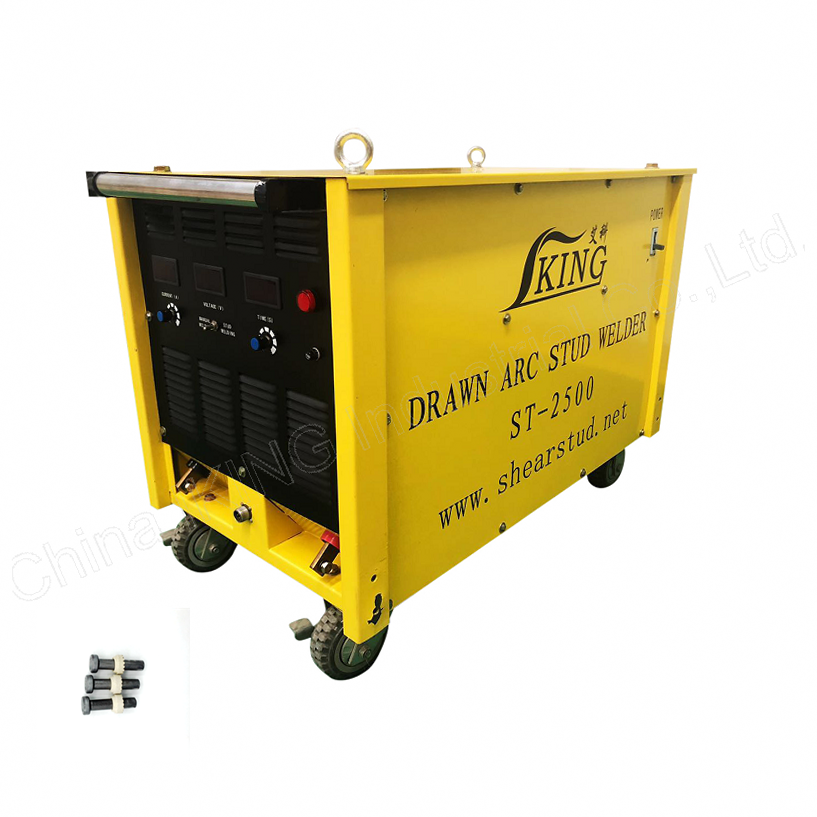

ST series stud welding machine
China IKING ST series
quality nelson arc studs welder for steel structure
are mainly applied to the installation of stud fusion welding in construction of steel structure, bridge and railway etc. ST nelson steel rebar welding machine with functions of weld time preset, weld parameter preset and digital display etc. The precision preset time can reach to 0.01 second, and welding preset current can reach to 1ampere, which improve welding reliability and stability and can be operated easily.
The main power of nelson steel rebar welding machine is designed in compact size and lightweight, can work 24 hours continuously. With design of anti-false-operation, it can prevent repeat welding onto the same point. The welder also have functions of short-circuit protection and circuit-breaker protections, which can protects circuit control board well, and the welder can be started smoothly after trouble-shooting. With all protections above, the failure rate of the welder is low, and it can prolong the life-span of nelson steel rebar welding machine.
Technical Data
|
Stud Welder Model
|
ST-1600
|
ST-2500
|
ST-3150
|
||
|
Max. Output Current
|
1600A
|
2500A
|
3150A
|
||
|
Welding Stud Range
|
6mm~18mm
|
8mm~25mm
|
10mm~28mm
|
||
|
Current Regulated Output
|
100~1600A
|
200~2500A
|
200~3150A
|
||
|
Timing Control
|
100~2800ms
|
|
|
||
|
Stud Welding Speed
|
15piece/ M16 /min
|
15piece/ M19 /min
|
15piece/ M22 /min
|
||
|
Main Circuit
|
Full bridge Silicon Controlled Rectifier
|
|
|
||
|
Control Circuit
|
Micro-processor Controlled
|
|
|
||
|
Repeat Cycle Lock
|
Automatic
|
|
|
||
|
Input Voltage
|
3 phrase 380V(±10%) 50/60Hz (other voltages available)
|
|
|
||
|
Specification of Power Cable
|
1*10mm2+3*16mm2
|
1*16mm2+3*25mm2
|
1*16mm2+3*35mm2
|
||
|
Control Cable Specification
|
4wires(1mm2/pc)
|
|
|
||
|
Max. Length Extension Weld Cable
|
100m
|
|
|
||
|
Max. Length Extension Earth Cable
|
20m
|
|
|
||
|
Protection Class
|
IP23
|
|
|
||
|
Dimension(L*W*D)
|
950*480*700mm
|
1060*590*740mm
|
1060*590*740mm
|
||
|
Net Weight
|
205 Kg
|
342 Kg
|
350 Kg
|
||
|
Fixed Wheels:
|
2pcs
|
|
|
||
|
Lockable Universal Casters:
|
2pcs
|
|
|
||
|
Handle:
|
yes
|
|
|
||
|
Lifting Ring:
|
2pcs
|
|
|
||
|
Standard Welding Gun
|
KNQ7B
|
KNQ9
|
|
||
|
Accessories included per unit
|
(1). 1pc welding gun KNQ7B or KNQ9;
(2). 5m ground wire with 1pc ground clamp;
(3). 10m welding cables;
(4). 4 sets stud chucks and ferrule holders;
(5). Hook spanner;
(6). Documents.
|
|
|
||
Stud Welding On Construction Site
ST series stud welding machine heavy duty operation on steel structure construction site.
Stud Welding for Industrial Boiler
ST series stud welding machines 24 hours operation for industrial boiler fabrication.
Application in different field
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1060mm (L) * 590mm (W) * 740mm (D)
|
|
|
Weight
|
470kg
|
|
|
Packaging Details
|
1. Outer packing: sea worthy plywood cases.
2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed on pallet. 3. Packing size: depends on specific welder model packing size. 4. Container load: refer to specific welder model packing size. |
|
|
Packaging
|
|
|
|
Size
|
1060mm (L) * 590mm (W) * 740mm (D)
|
|
|
Weight
|
740kg
|
|
|
Packaging Details
|
1. Outer packing: sea worthy plywood cases.
2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed on pallet. 3. Packing size: depends on specific welder model packing size. 4. Container load: refer to specific welder model packing size. |
|
