High Quality 20 m3 LPG Gas storage tank for LPG and fuel stations for sale

High Quality 20 m3 LPG Gas storage tank for LPG and fuel stations for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $6800

≥5 Sets

US $6000

≥10 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: DOER

Dimension(L*W*H):: DOER

Weight:: 20000

Material:: Stainless Steel

Product name:: LPG storage tank

Usage:: Lpg Storage

Medium:: LPG

Working pressure:: 1.77

Quick Details

Capacity:: 100m3

Max Working Pressure(MPa):: 1.77 MPa

Place of Origin:: Henan, China

Brand Name:: DOER

Dimension(L*W*H):: DOER

Weight:: 20000

Material:: Stainless Steel

Product name:: LPG storage tank

Usage:: Lpg Storage

Medium:: LPG

Working pressure:: 1.77

Product Overview

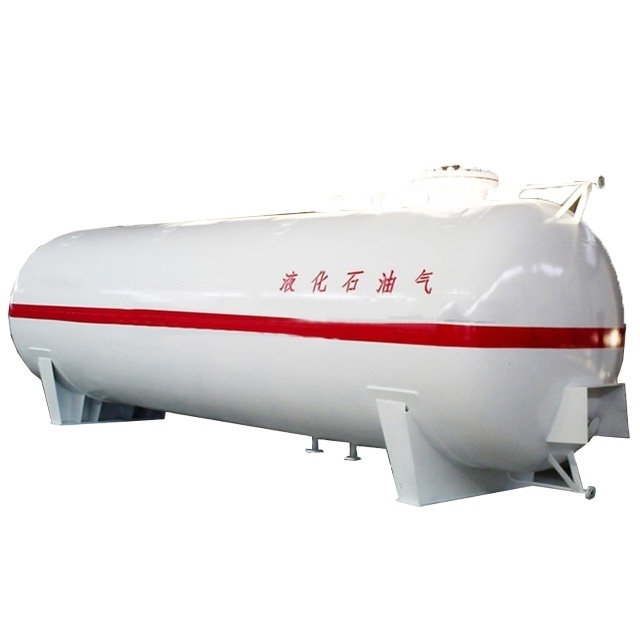

LPG Storage Tank

The LPG Tank is liquefied petroleum gas which is used for filling and storing liquefied petroleum gas (LPG) with saturated vapor pressure lower than 1.77 Mpa at 50℃. But our company according to "Safety Technology Supervision of Stationary Pressure Vessels" to determine the maximum allowable working pressure 1.82MPa, all products in accordance with 1.82MPa pressure to conduct strength calculation than any other company 1.77MPa pressure calculation. We support LPG Tank from 5M3 to 200M3, the color and LOGO can be customize by customers.

Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame. Includes transfer equipment to allow the supply of gas in liquid phase to vehicles with the maximum guarantee of safety. Simplified installation: only requires connection of power supply to the unit and anchoring to the ground (with earth connection).

We are a professional manufacturer, we have our own workshop and technical personnel, We can produce all kinds of size of the LPG storage tank. We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirement of customers.

Products Description

LPG gas tank

1.lpg storage tank capacity:
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l,
200,000l.
2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.

2. lpg storage tank material:
Q345R Q370R Q420R SA516

3.lpg storage tank production flow:
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand
blasting-painting

Item	Usable Volume(m 3 )	Working/Design Pressure(Mpa)	Medium	Weight	*Device Size (LWH)*
CFL-10/0.8	10	0.8/0.84	LPG	5125	2312*5987
CWL-10/0.8	10	0.8/0.84		LNG	5125	231227925364
CFL-30/0.8	30	0.8/0.84		LNG	10809	2512*11583
CWL-30/0.8	30	0.8/0.84		LNG	11358	2807251211099
CFL-50/0.8	50	0.8/0.84		LNG	17680	3016308812120
CWL-50/0.8	50	0.8/0.84		LNG	18145	3477321610560
CFL-100/0.8	100	0.8/0.84		LNG	34437	3554358716435
CWL-100/0.8	100	0.8/0.84		LNG	34549	4185392412816
CFL-150/0.8	150	0.8/0.84		LNG	47225	3754378720991
CWL-150/0.8	150	0.8/0.84		LNG	47940	4185392418316
CFL-200/0.8	200	0.8/0.84		LNG	64214	4087405423047

Details Images

Pump with electrical engine in Ex Protection and delivery pump

The basic equipment includes manhole, joint for safety valve, exit for air discharge, joint for liquid indicator, liquid inlet, gas phase equilibrium mouth, liquid phase outlet, liquid discharge, etc.

Complete mobile filling station for LPG is mounted on stable steel base with carrying handles.

For the safe usage of the LPG products, we process several test for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc, can filling gas to LPG Cylinder, LPG Storage Tanker for Home and Car, Taxi Bus.
