Quick Details
-
Product name:
-
Underground Fire Hydrant
-
Flange drilling:
-
BSEN1092-2
-
Working Pressure:
-
PN16/10
-
Body:
-
Ductile Iron
-
Gland packing:
-
O rings NBR
-
Outlet:
-
Aluminum alloy
-
Thrustcollar:
-
Stainless steel 4404/304
-
Stem:
-
Stainless steel 4404/304
-
Bonnet:
-
Ductile Iron
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SYI
-
Model Number:
-
BS750
-
Product name:
-
Underground Fire Hydrant
-
Flange drilling:
-
BSEN1092-2
-
Working Pressure:
-
PN16/10
-
Body:
-
Ductile Iron
-
Gland packing:
-
O rings NBR
-
Outlet:
-
Aluminum alloy
-
Thrustcollar:
-
Stainless steel 4404/304
-
Stem:
-
Stainless steel 4404/304
-
Bonnet:
-
Ductile Iron

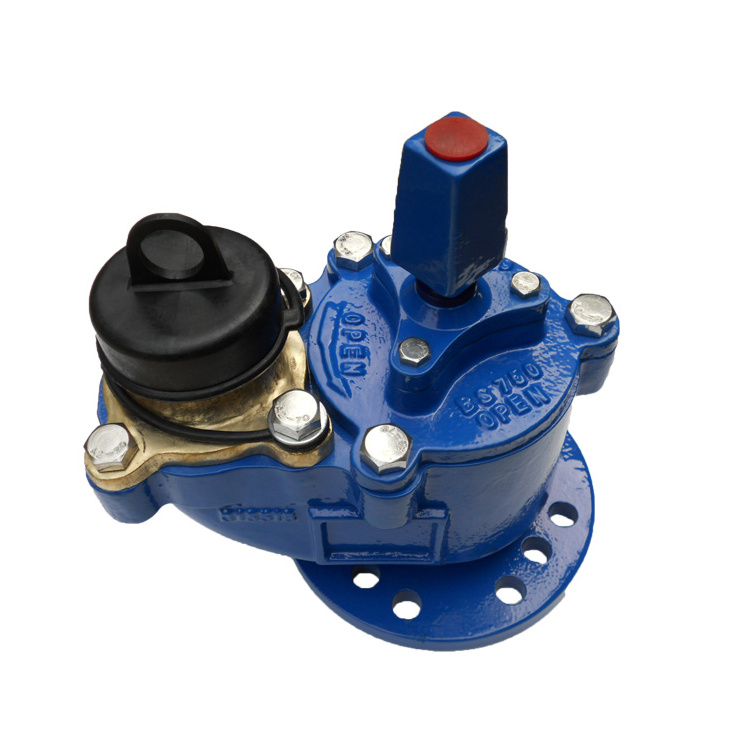

SYI BS750 Underground Fire Hydrant
Product Description
Underground fire hydrant
is an outdoor underground fire water supply facility. It is used to supply water to fire truck or directly connect with hose and water gun for fire fighting. It is a necessary special facility for outdoor fire fighting water supply. Installed underground, does not affect the city appearance, traffic.
By the valve body, elbow, seat, disc, drain valve, stem and interface components. Underground fire
hydrant is an indispensable water supply device for fire fighting in cities, factories, mines, power stations, warehouses, docks,residential buildings and public places.
Especially in urban areas and areas with few rivers. The structure of the product is reasonable, reliable performance, easy to use. When underground fire hydrants are used, there should be obvious signs. Underground hydrants are common in cold areas.
hydrant is an indispensable water supply device for fire fighting in cities, factories, mines, power stations, warehouses, docks,residential buildings and public places.
Especially in urban areas and areas with few rivers. The structure of the product is reasonable, reliable performance, easy to use. When underground fire hydrants are used, there should be obvious signs. Underground hydrants are common in cold areas.
Techinical Specifications:
Flange drilling: BS4504:2000/BSEN1092-2
Working Pressure: PN10/PN16
Outlet Material is upon your request, and following materials are available Aluminum, Brass, Bronze.
Flange drilling: BS4504:2000/BSEN1092-2
Working Pressure: PN10/PN16
Outlet Material is upon your request, and following materials are available Aluminum, Brass, Bronze.
|
Item
|
Part Name
|
Material
|
|
1
|
Body
|
Ductile Iron
|
|
2
|
Bonnet
|
Ductile Iron
|
|
3
|
Stem
|
Brass or Stainless Steel
|
|
4
|
Disc
|
“Cast Brass/Ductile Iron + VULCANIZED NBR/HR”
|
|
5
|
Dust Cap
|
Nylon Plastic
|
Main Dimensions:
|
DN
|
L
|
H
|
|
80,100
|
126
|
288
|
For other sizes not mentioned above, please contact us.We have right to change the data without further notice.
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Chemical Analyzing
Microstructure Testing
Spectrum Analyzing
Hydraulic Pressure Testing
Packing & Delivery
Packing:
Usually packed by plywood crates or pallets.
