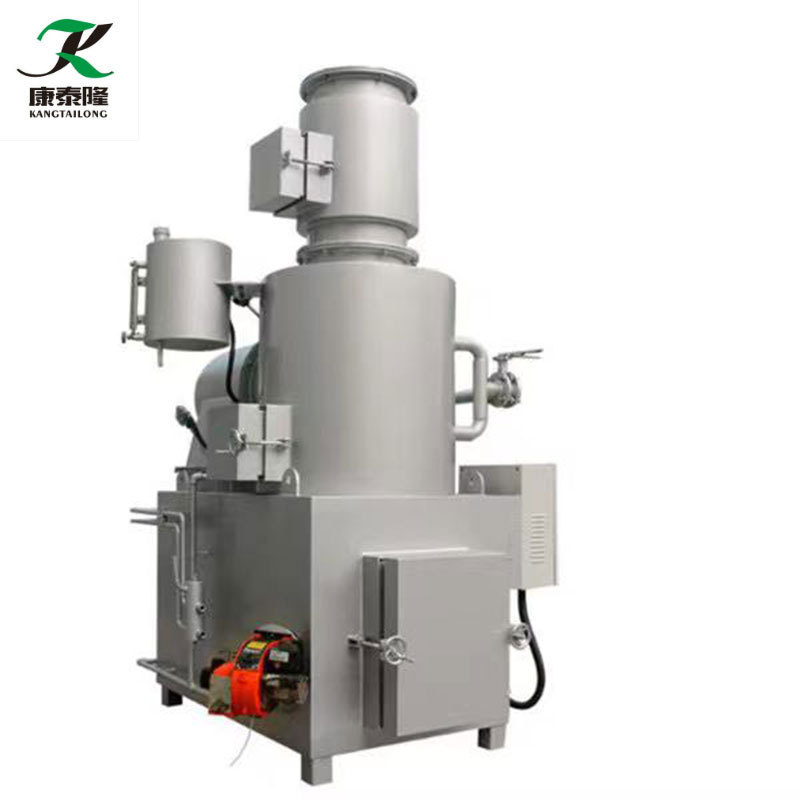

KTL Mini Medical Waste Cremation Hospital Incinerator Machine For Sale

KTL Mini Medical Waste Cremation Hospital Incinerator Machine For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $6999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KTL

Model Number:: KTL-100

Power:: 0.25

Material:: Wooden box

Marketing Type:: New Product 2023

Weight (KG):: 4000 kg

Name:: Medical Waste Incinerator

Application:: Solid Waste

Raw material:: Carbon Steel

Final product:: Ashes

Fuel:: Diesel or Natural Gas

Color:: Customized Color

Advantage:: Smokeless

Certification:: CE

Voltage:: 220 V

Size:: 1.7*1.2*3 m

Quick Details

Production Capacity:: 50-100 kg/batch

Applicable Industries:: Hospital, Medical, Clinic

Place of Origin:: Shandong, China

Brand Name:: KTL

Model Number:: KTL-100

Power:: 0.25

Material:: Wooden box

Marketing Type:: New Product 2023

Weight (KG):: 4000 kg

Name:: Medical Waste Incinerator

Application:: Solid Waste

Raw material:: Carbon Steel

Final product:: Ashes

Fuel:: Diesel or Natural Gas

Color:: Customized Color

Advantage:: Smokeless

Certification:: CE

Voltage:: 220 V

Size:: 1.7*1.2*3 m

Products Description

1.Smokeless Diesel Oil Hospital Waste Burning Incinerator for clinic garbage treatment is a kind of waste treatment
method.2. Incinerators reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%.
3.The highest temperature of incinerator runing can reach 1100-1300 degrees Celsius, which can achieve the effect of sterilization
and disinfection.
4.There will be no smoke, no smell, no pollution when waste burning. 5.It features unique and advanced merits with compact size,
high burning effect, reasonable burning technology, high degree of non-harm etc.
6. It is an ideal choice for waste treatment of hospitals, hotels and various areas.

Scope of application

hospital Wastes treatment: hospital wastes such as: bandage , swaps, injection syringe, drop bottle, lab waste, expired drugs,infectious internal organ, napkin, diaper, mask, gloves, pharmaceutical waste, hazardous wastes , Laboratories wastes, healthcare waste.

Equipment Description

incinerator structure

There are four chambers, two combustors for friendly environment in waste incinerator. There will be no smoke, no smell, no pollution after be burning. it was devided into : 1.primary combustion chamber It is Primary pyrolysis gasifying, Organic matters in the waste would be decomposed into combustible gas in pyrolysis gasifying method. 2.second combustion chamber The temperature of secondary combustion chamber should be controlled above 850℃,it can reach 850-1100℃， and the residency time more than 2s. 3.mixture of combustion chamber Turbulent combustion would remove black smoke and peculiar smell thoroughly. Dioxin and other toxic and harmful objects would be inhibited to produce from the source. 4. smoke purification chamber There is an gas absorbtion chamber, it can absorb the gas again. 5.chimney it can cool down the tempreture of gas.

Advantages of incinerator 1. Environment friendly,Dual chamber design, no smoke, no smell, no pollution.

2. The highest temperature can reach 1100-1300 degrees Celsius, which can achieve the effect of sterilization and disinfection

3. long service time.Material of construction-Heavy duty steel. Insulated and refractory lined chambers.

4. be portable and cover a small area.

5. Low running & maintenance cost.

型号	KTL-30	KTL-50	KTL-100	KTL-150
Incineration capacity	20-30KG /time (3-6 times per day)	30-50KG /time (3-6 times per day)	50-100KG /time (3-6 times per day)	100-150KG /time (3-6 times per day)
Size (Long, wide, high)	1.30.82.3	1.4612.59	1.71.153	1.81.33.2
Garbage inlet size mm	380*400	500*550	600*750	600*750

Chimney	Outer diameter 219	Outer diameter280	Outer diameter280	Outer diameter280
Fan	0.25KW	0.25KW	0.25KW	0.25KW
Fuel booster	Power 0.12KW, fuel consumption 5-10KG	Power 0.12KW, fuel consumption 5-10KG	Power 0.12KW, fuel consumption 5-10KG	Power 0.12KW, fuel consumption 5-10KG
Flare-up	Power 0.18KW, fuel consumption 5-10KG	Power 0.18KW, fuel consumption 7.5-14KG	Power 0.18KW, fuel consumption 7.5-14KG	Power 0.18KW, fuel consumption 7.5-14KG
