Quick Details
-
Model Number:
-
0.3mm- 3.15mm
-
Wire Gauge:
-
0.3mm 0.8mm 0.9mm 1.25mm 1.60mm 2.0mm 2.5mm 3.15mm
-
Product name:
-

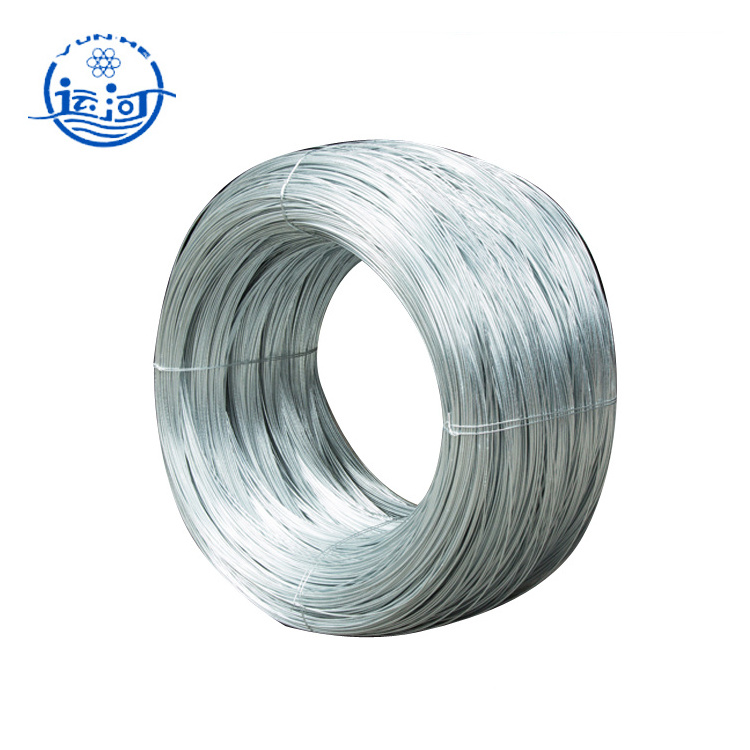

0.9mm Hot dip galvanized gi wire
-
Key word:
-
gi wire
-
Packing:
-
Wooden Reel /coil/roll
-
Material:
-
Q195 Q235 45# 60# 65# 70# 80# 82B carbon steel
-
Application:
-
stranded conductors/ACSR/cable/fencing gabion/guy wire/stay wire
-
zinc coating:
-
30g-360g/m2 TO gi wire
-
Surface:
-
Galvanized steel wire
-
Certificate:
-
ISO9001/BV TO High Quality Steel Wire Rod
-
Tensile strength:
-
low/mild/high
Quick Details
-
Function:
-
armouring cable,hanger,wire mesh,bucket
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yunhe
-
Model Number:
-
0.3mm- 3.15mm
-
Wire Gauge:
-
0.3mm 0.8mm 0.9mm 1.25mm 1.60mm 2.0mm 2.5mm 3.15mm
-
Product name:
-
0.9mm Hot dip galvanized gi wire
-
Key word:
-
gi wire
-
Packing:
-
Wooden Reel /coil/roll
-
Material:
-
Q195 Q235 45# 60# 65# 70# 80# 82B carbon steel
-
Application:
-
stranded conductors/ACSR/cable/fencing gabion/guy wire/stay wire
-
zinc coating:
-
30g-360g/m2 TO gi wire
-
Surface:
-
Galvanized steel wire
-
Certificate:
-
ISO9001/BV TO High Quality Steel Wire Rod
-
Tensile strength:
-
low/mild/high
0.9mm Hot dip galvanized gi wire
|
Zinc coating |
EN10257/BS443 |
|
Material |
Q195 Q235 45# 60# 65# 70# 80# 82B carbon steel |
|
Key word |
iron wire |
| 0.3-6.0mm | |
|
Surface treatment |
Eletro Galvanized With Caron Steel hot dipped Galvanized Wire |
| Application |
stranded conductors/ACSR/cable/fencing gabion/guy wire/stay wire |
|
Package |
Standard export packing. In coils, water-proof cloth.Z2 packaging,wooden reel, Or according to customer's needs. |
|
zinc coating |
30g-360g/m2 TO gi wire |
| Tensile strength | low/mild/high |
|
Port of loading |
shanghai ,ningbo or any china port |
| Certificate | ISO9001/SGS/BV TO High Quality iron wire |
The factory was set up in 1958. Registered ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD in 2006. Nowadays it has became an enterprise which specially produce brand “ Yunhe ” metal product series in metallurgical industry. Also it is national key supporting hightech enterprise. We now have a registered capital of 200 million RMB and covering an area of 30 thousand square meters. Our company has attained ISO9001 quality management system certification and ISO 14001 quality system certification.
We are well recognized and praised by numerous customers both home and abroad because of our first-class quality, in-time delivery and high-efficiency service.
| Zinc-coated steel wire for stranded conductors | ||||||
| (Strength General) | diameter mm |
Tensile Strebgth No Less Than |
Tensile Strength No Less Than |
LD=250mm Elongation Noless Than% |
Number Of Twist/360 No less Than |
Diameter Of Core ROD FOR Wrap Test(times) |
| (A)General strength | >1.24-2.25 | 1340 | 1170 | 3 | 18 | 1D |
| >2.25-2.75 | 1310 | 1140 | 3 | 16 | 1D | |
| >2.75-3.0 | 1310 | 1140 | 3.5 | 16 | 1D | |
| >3.0-3.5 | 1290 | 1100 | 3.5 | 14 | 1D | |
| >3.5-4.25 | 1290 | 1100 | 4 | 12 | 1D | |
| >4.25-4.75 | 1290 | 1100 | 4 | 12 | 1D | |
| >4.75-5.5 | 1290 | 1100 | 4 | 12 | 1D | |
| (A)Higher strength | >1.24-2.25 | 1450 | 1310 | 2.5 | 16 | 3D |
| >2.25-2.75 | 1410 | 1280 | 2.5 | 16 | 3D | |
| >2.75-3.0 | 1410 | 1280 | 3 | 16 | 4D | |
| >3.0-3.5 | 1410 | 1240 | 3 | 14 | 4D | |
| >3.5-4.25 | 1380 | 1170 | 3 | 12 | 4D | |
| >4.25-4.75 | 1380 | 1170 | 3 | 12 | 4D | |
| Extra Higher Strength | >1.24-2.25 | 1620 | 1450 | 2 | 14 | 3D |
| >2.25-2.75 | 1590 | 1410 | 2 | 14 | 3D | |
| >2.75-3.0 | 1590 | 1410 | 2.5 | 12 | 4D | |
| >3.0-3.5 | 1550 | 1380 | 2.5 | 12 | 4D | |
| >3.5-4.25 | 1520 | 1340 | 2.5 | 10 | 4D | |
| >4.25-4.75 | 1520 | 1340 | 2.5 | 10 | 4D | |
