Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Liyuan
-
Model Number:
-
4 Inch QJ pump
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
0.5-10HP
-
Cable Length:
-
N/A
-
Outlet Size:
-
1"/ 1.25"/ 1.5" / 2"
-
Power:
-
0.37KW-7.5KW
-
motor:
-
Electric submersible motor
-
Product name:
-
4 Inch QJ pump
-
Material:
-
Stainless Steel
-
Usage:
-
Pumping Water
-
Motor:
-
100% Copper Wire
-
Pump Type:
-
impeller pump
-
Impeller:
-
PC POM
-
Size:
-
4 inch
-
Shaft:
-
stainless steel
-
Pump body:
-
stainless steel
-
Brand:
-
Liyuan
Quick Details
-
Application:
-
Other, Commercial Buildings, Drinking water treatment, Family Homes, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Other
-
Voltage:
-
110V/220V /380V/460V
-
Warranty:
-
1 year
-
Brand Name:
-
Liyuan
-
Model Number:
-
4 Inch QJ pump
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
0.5-10HP
-
Cable Length:
-
N/A
-
Outlet Size:
-
1"/ 1.25"/ 1.5" / 2"
-
Power:
-
0.37KW-7.5KW
-
motor:
-
Electric submersible motor
-
Product name:
-
4 Inch QJ pump
-
Material:
-
Stainless Steel
-
Usage:
-
Pumping Water
-
Motor:
-
100% Copper Wire
-
Pump Type:
-
impeller pump
-
Impeller:
-
PC POM
-
Size:
-
4 inch
-
Shaft:
-
stainless steel
-
Pump body:
-
stainless steel
-
Brand:
-
Liyuan

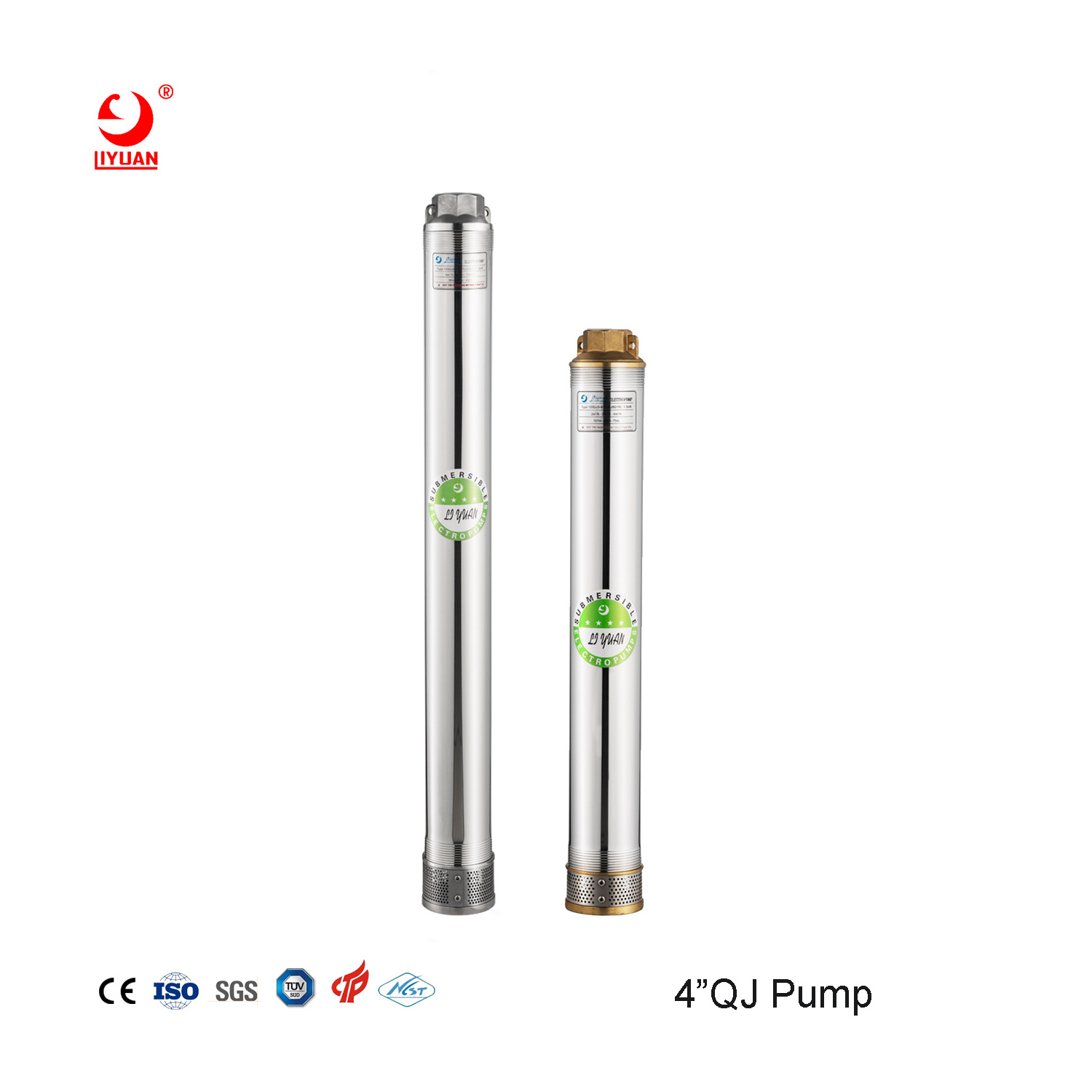

4 Inch Pc Impeller QJ Pump Water Pump Borehole Pump Electric Pump Deep Well Pump Submersible Pump
| Description | Submersible Pump |
| Specification | AC Water Pump |
| Pump Size | 4 Inch |
| Capacity |
1m 3 /H, 2 m 3 /H , 3 m 3 /H , 4 m 3 /H, 5m 3 /H, 6m 3 /H, 7m 3 /H, 8m 3 /H, 10m 3 /H, 12m 3 /H ,14m 3 /H, 16m 3 /H, 20m 3 /H. |
| Total Head |
25M -375 |
| Outlet |
1" / 1.25" / 1.5" /2" |
| Motor Volotage |
Single Phase :110V, 220V,
Three Phase :380V, 410V,440V,480V According to the customer customized voltage |
| Impeller Material | PC |
| Pump Outlet And Outlet | Stainless Steel / Copper |
| Medium |
Clear water,
Hot water Acceptance customized for acid and alkaline water |
| Controller |
AC Inverter :MPPT
AC Multi-function all-in-one Inverter DC Controller AC/DC Controller |
| Power | Electric, Solar |
| Brand | Liyuan ,ATA, Accept custom brand |
Guangdong Jiangmen Liyuan Pump Co., Ltd. has started its production of submersible water pumps since 1992. It is an ISO 9001:2008 approved factory and all products have passed CE standard.
Product Feature
1) Unqiue Item number.
2) Thicker pipe wall than normal product in the market.
3) Bearing: domestic, NSK,etc.
4) Self-design impellers.
5) 100% brass wire, bigger and deeper slot for motor.
6) Strictly quality control from material receiving, pre-entering warehouse to exiting warehouse and packing.
Delivery Time
Normal lead time: 7 - 15 days based on the order quantiy.
