Quick Details
-
Model Number:
-
YWK
-
Pressure range:
-
-0.1 to 6 MPa
-
Max. Voltage:
-
220V
-
Max. Current:
-
10A
-
Enclosure protection class:
-
IP54
-
Accuracy:
-
1.6%
-
Material:
-
Aluminum casting
-
Sensor element:
-
Bellows type
-
Ex-mark:
-
Exde II CT5GB
-
Switch capacity:
-
2A250VA250VAC (max) / 2A100W60VDC (max)
-
Medium:
-
Gas, liquid, vapor
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Zhaofeng Instrument
-
Model Number:
-
YWK
-
Pressure range:
-
-0.1 to 6 MPa
-
Max. Voltage:
-
220V
-
Max. Current:
-
10A
-
Enclosure protection class:
-
IP54
-
Accuracy:
-
1.6%
-
Material:
-
Aluminum casting
-
Sensor element:
-
Bellows type
-
Ex-mark:
-
Exde II CT5GB
-
Switch capacity:
-
2A250VA250VAC (max) / 2A100W60VDC (max)
-
Medium:
-
Gas, liquid, vapor
Product Description
Specification
|

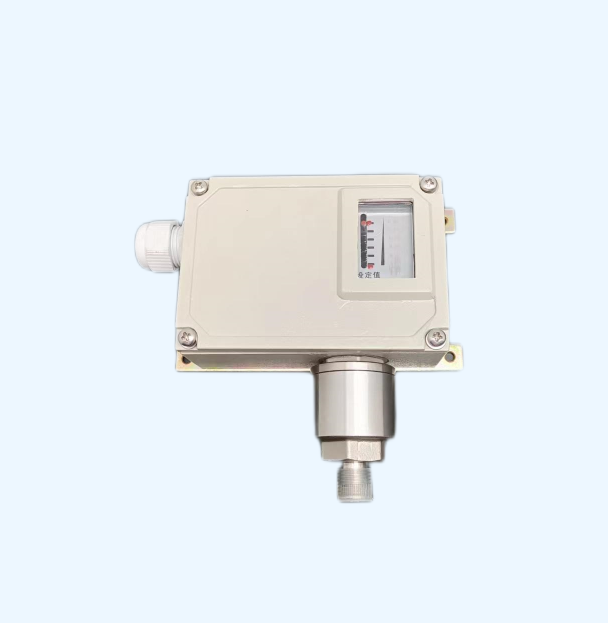

Industrial pressure controller for water/gas/oil
|
|
|
|
Model
|
YWK
|
|
|
Max. Voltage
|
220V
|
|
|
Max. Current
|
10A
|
|
|
Enclosure protection class
|
IP54
|
|
|
Accuracy
|
1.6%
|
|
|
Material
|
Aluminum casting
|
|
|
Sensor element
|
Bellows type
|
|
|
Ex-mark
|
Exde II CT5GB
|
|
|
Switch capacity
|
2A250VA250VAC (max) / 2A100W60VDC (max)
|
|
|
Medium
|
Gas, liquid, vapor
|
|
|
Pressure range
|
-0.1 to 6 MPa
|
|
Models specification
|
Model No.
|
Setting range （MPa）
|
Differential gap
|
|
Max. pressure（MPa）
|
|
|
|
|
A(Max.) （MPa）
|
B(Max.)（MPa）
|
|
|
|
YWK(B)-(-0.1-0)
|
-0.1-0
|
0.007
|
0.0035
|
0.6
|
|
|
YWK(B)-(-0.1-0.1)
|
-0.1-0.1
|
0.008
|
0.004
|
0.6
|
|
|
YWK(B)-(-0.1-0.16)
|
-0.1-0.16
|
0.009
|
0.0045
|
0.6
|
|
|
YWK(B)-(-0.1-0.25)
|
-0.1-0.25
|
0.01
|
0.005
|
1
|
|
|
YWK(B)-0.1
|
0.01-0.1
|
0.008
|
0.004
|
0.6
|
|
|
YWK(B)-0.16
|
0.016-0.16
|
0.009
|
0.0045
|
0.6
|
|
|
YWK(B)-0.25
|
0.025-0.25
|
0.012
|
0.006
|
1
|
|
|
YWK(B)-0.4
|
0.04-0.4
|
0.02
|
0.01
|
2
|
|
|
YWK(B)-0.6
|
0.06-0.6
|
0.03
|
0.015
|
2
|
|
|
YWK(B)-1
|
0.1-1
|
0.05
|
0.025
|
2
|
|
|
YWK(B)-1.6
|
0.16-1.6
|
0.08
|
0.04
|
3
|
|
|
YWK(B)-2.5
|
0.025-0.25
|
0.12
|
0.06
|
3
|
|
|
YWK(B)-4
|
0.4-4
|
0.2
|
0.1
|
5
|
|
|
YWK(B)-6
|
0.6-6
|
0.3
|
0.15
|
7
|
|
Electrical connection
Applications
